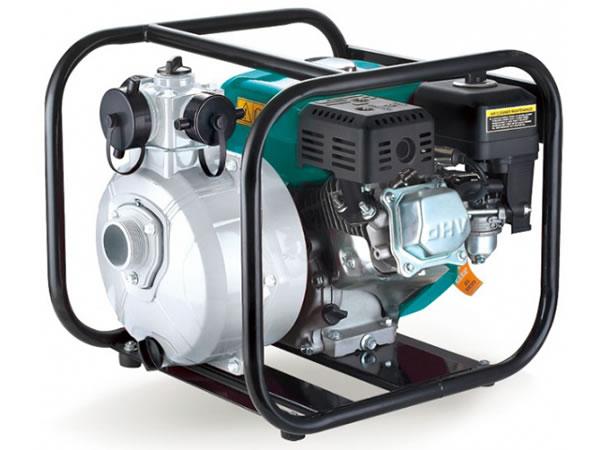

LGPH Gas Engine Pump
Application
- LGPH gas engine pump can transfer clean water with liquid temperature between 0℃ and 40℃.
- Applicable in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.
LGPH Gas Engine Pump Features
- New unique design with ergonomic feature.
- Portable and compact pump frame.
- High quality motor with excellent performance and long service life.
- Impeller designed with high efficient hydraulic system.
- Low fuel consumption.
- Anti-rust Cast iron diffuser.
LGPH Gas Engine Pump Engine Features
- Single cylinder, 4-stroke, Air-cooled.
- Max. power: 6.5 HP
- Displacement: 196 cc
- Rated speed: 3600 rpm
Key Technical Parameters for LGPH Gas Engine Pump
- Max. suction: 6 m/120 s.
- Inlet/outlet: 50 mm/2 x 38 mm+1 x 50 mm

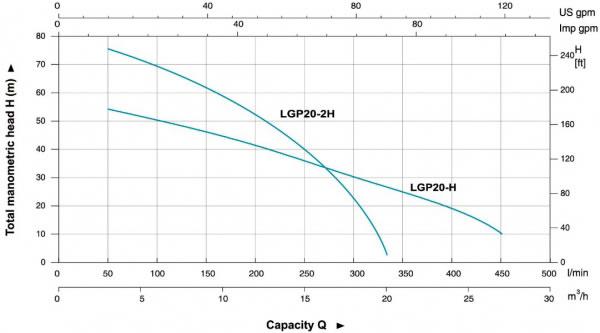

| MODEL | POWER | Q(m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 |
| HP | Q(l/min) | 0 | 83.3 | 166.7 | 250 | 333.3 | 416.7 | 500 | |
| 6.5 | H(m) | 55 | 52 | 44.3 | 36 | 27 | 17 | 2.5 | |
| 6.5 | 85 | 77 | 63 | 42 | 5 | ˗ | ˗ |

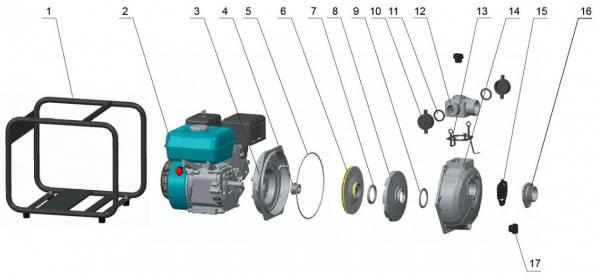

| No. | Part | Material |
| 1 | Frame | Steel |
| 2 | Engine | |
| 3 | Bracket | Aluminum |
| 4 | Mechanical Seal | Carbon/Ceramic |
| 5 | O-ring | NBR |
| 6 | Impeller | Aluminum |
| 7 | Seal Ring | NBR |
| 8 | Diffuser | HT200 |
| 9 | Seal Ring | NBR |
| 10 | Pipe Blanking Cap | PP |
| 11 | Seal Ring | NBR |
| 12 | Outlet | Aluminum |
| 13 | Gasket | NBR |
| 14 | Pump Body | Aluminum |
| 15 | Non-return Valve | NBR |
| 16 | Inlet | Aluminum |
| 17 | Filling Plug | PA6 |
LEO is a listed company in China (stock code 002131), LEO is a leading gas engine pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible water pumps, sewage pumps with custom solutions. LEO gas engine water pumps can meet you any requires in domestic pumping systems.
