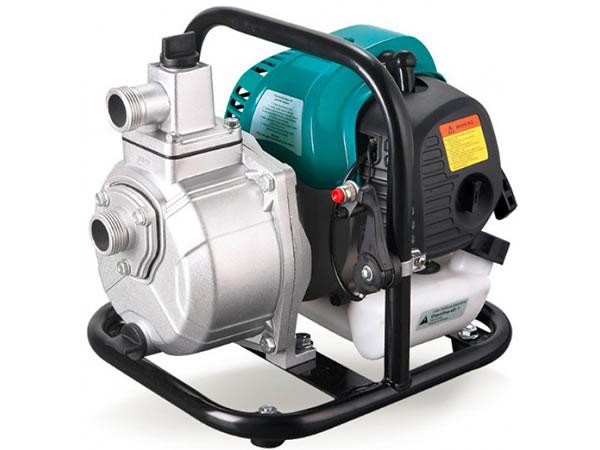

1" 1.5" Gasoline Water Pump
Application
-1" 1.5" Gasoline Water Pump could be introduced to transfer clean water with liquid temperature between 0℃ and 40℃.
- Applicable in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.
1" 1.5" Gasoline Water Pump Features
- New unique design with ergonomic feature.
- Portable and compact pump frame.
- High quality motor with excellent performance and long service life.
- Impeller designed with high efficient hydraulic system.
- Low fuel Consumption.
- Anti-rust Cast iron impeller and diffuser.
1" 1.5" Gasoline Water Pump Engine Features
- Single cylinder, 2-stroke, Air-cooled.
- Max. power: 1.6 HP
- Displacement: 42.7 cc
- Rated speed: 7500 rpm
Key Technical Parameter for 1" 1.5" Gasoline Water Pump
- Max. suction: 8m/120 s.
- Inlet/outlet: 25mm/38mm

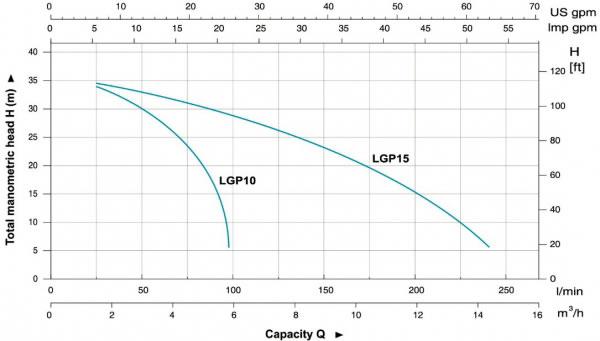

| MODEL | POWER | Q(m³/h) | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | |
| HP | Q(l/min) | 0 | 33.3 | 66.7 | 100 | 133.3 | 166.7 | 200 | 233.3 | 266.7 | ||
| LGP10 | 1.6 | H (M) | 35 | 34 | 26 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
| LGP15 | 1.6 | 35 | 34.5 | 32.5 | 29 | 25.5 | 20.5 | 12.1 | 6.5 | ˗ |

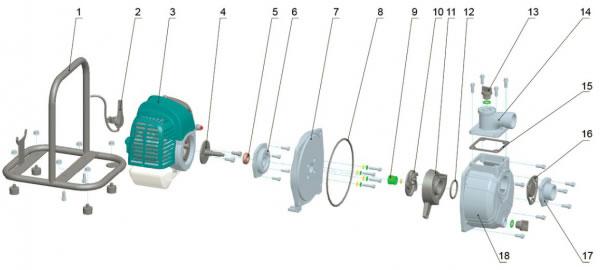

| No. | Part | Material |
| 1 | Frame | Steel |
| 2 | Throttle | |
| 3 | Engine | |
| 4 | Crankshaft | |
| 5 | Bearing | |
| 6 | Seat Connection | Aluminum |
| 7 | Pump Cover | Aluminum |
| 8 | O-ring | NBR |
| 9 | Mechanical seal | Carbon/Ceramic |
| 10 | Impeller | HT200 |
| 11 | Diffuser | HT200 |
| 12 | O-ring | NBR |
| 13 | Plug | PP |
| 14 | Outlet | Aluminum |
| 15 | Seal | NBR |
| 16 | Non-return Valve | NBR |
| 17 | Inlet | Aluminum |
| 18 | Pump Body | Aluminum |
