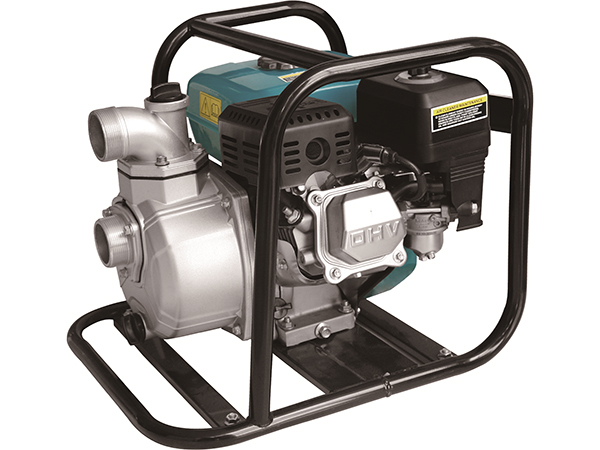

2" 3" Gasoline Water Pump

2

Application
- 2" 3" Gasoline Water Pump could be used to transfer clean water with liquid temperature between 0℃ and 40℃.
- The pump is applicable in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.

2" 3" Gasoline Water Pump Features
- Strengthened pump body ensure more durable and reliable service.
- Better sealing effect by using special mechanical seal.
- 5-direction outlet for convenient use.
- Improved starter handle for easier starting.
- 20% increased loading quantity thanks to very compact design.
- Less gasoline consumption.
- Anti-rust Cast iron impeller and diffuser.
- High quality forged steel crankshaft.

2" 3" Gasoline Water Pump Engine Features
- Single cylinder, 4-stroke, Air-cooled.
- Max.power: 6.5HP
- Displacement: 163 cc/196 cc
- Rated speed: 3600 rpm

Key Technical Parameters for 2" 3" Gasoline Water Pump
- Max. suction: 8m/120 s.
- Inlet/outlet: 50mm/80mm

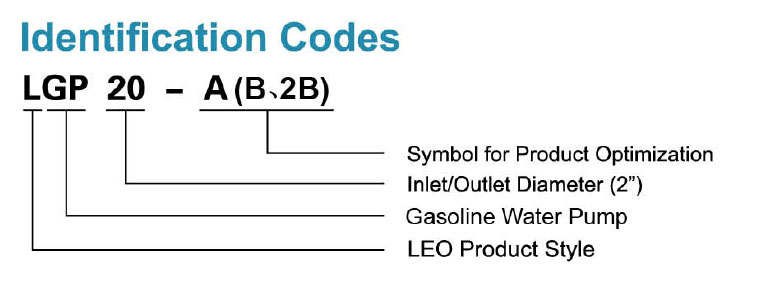

Identification Codes
Technical Data of 2" 3" Gasoline Water Pump
MODEL POWER Q(m³/h) 0 5 10 15 20 25 30 35 40 45 50 55 60
HP Q(l/min) 0 83.3 166.7 250 333.3 416.7 500 583.3 666.7 750 833.3 916.7 1000
LGP20-A 6.5 H(m) 30 25.1 21.6 17.6 13.4 5.9 1.5 ˗ ˗ ˗ ˗ ˗ ˗
LGP30-A 6.5 30 28.4 27.5 26 24 22.5 20 17.5 15 12.5 8.5 6 3.5

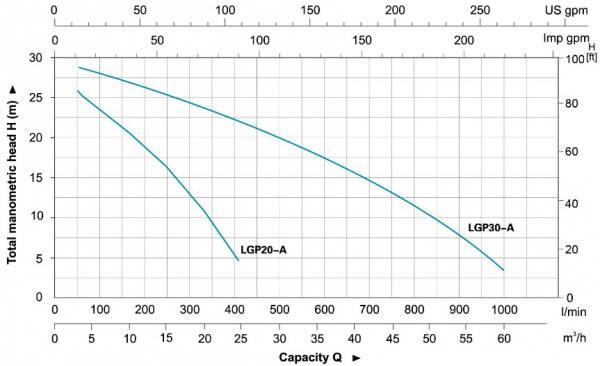

2" 3" Gasoline Water Pump Hydraulic Performance Curves

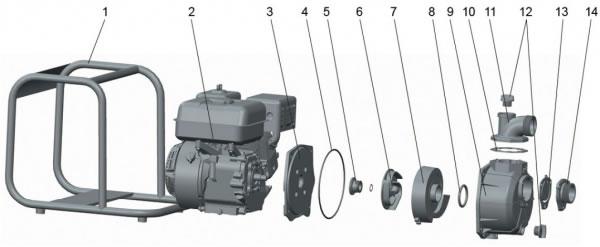

Material Table of 2" 3" Gasoline Water Pump
No. Part Material
1 Frame Steel
2 Gasoline
3 Pump Cover ADC12
4 O-ring NBR
5 Mechanical Seal Carbon/Ceramic
6 Impeller Cast Iron
7 Diffuser Cast Iron
8 O-ring NBR
9 Pump Body Aluminum
10 Gasket NBR
11 Outlet Aluminum
12 Filling Plug PA6
13 Non-return Valve NBR
14 Inlet Aluminum

LEO is a listed company in China (stock code 002131), LEO is a leading gas engine pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, garden water pumps, centrifugal pumps, deep well pumps with custom solutions. LEO gas engine water pumps can meet you any requires in domestic pumping systems.
