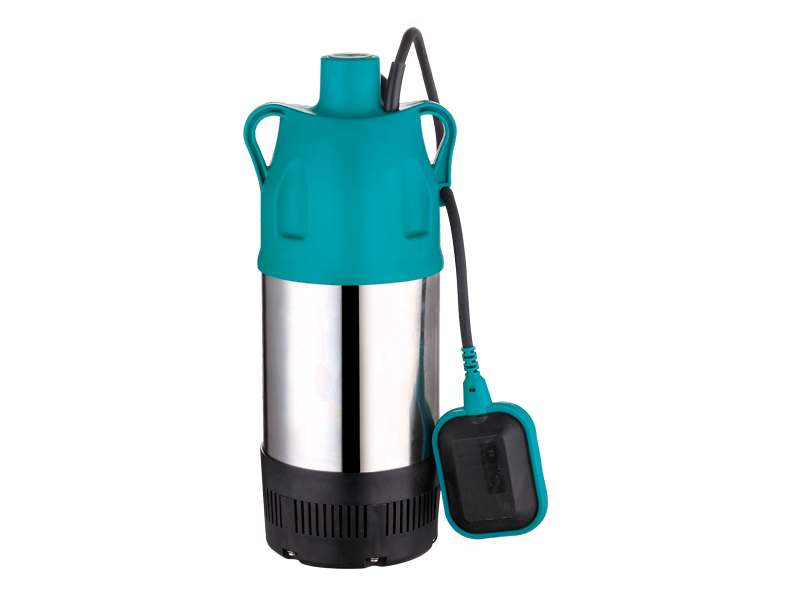

XKS-900S Garden Submersible Pump
Application
XKS-900S Garden Submersible Pump is widely used in traditional wells, water deposits, collection tanks, etc. It is also suitable for small scale irrigation systems.
XKS-900S Garden Submersible Pump Features
- AISI 304 pump body
- Very high head with multistage-impeller design
- Max. liquid temperature: +35℃
- Max. immersion depth: 7m
- Max. diameter of particle: 1mm
XKS-900S Garden Submersible Pump Motor Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

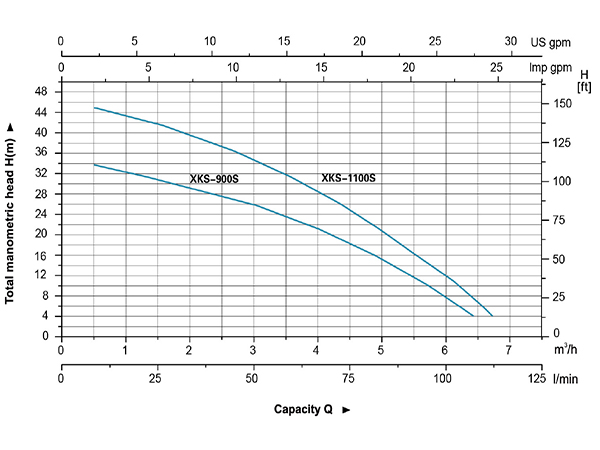

| Model | Power (P2) | Q(m³/h) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | |
| W | HP | Q(l/min) | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 | 66.7 | 75 | 83.3 | 91.7 | 100 | 108.3 | |
| XKS-900S |
900 | 1.2 | H (m) |
34 | 32 | 31 | 29 | 27.5 | 26.6 | 23.5 | 21 | 18 | 15 | 12 | 8 | 3.8 |
| XKS-1100S |
1100 | 1.5 | 45 | 43 | 42 | 39 | 37 | 35 | 32 | 29 | 25 | 21 | 16.1 | 12 | 7 | |

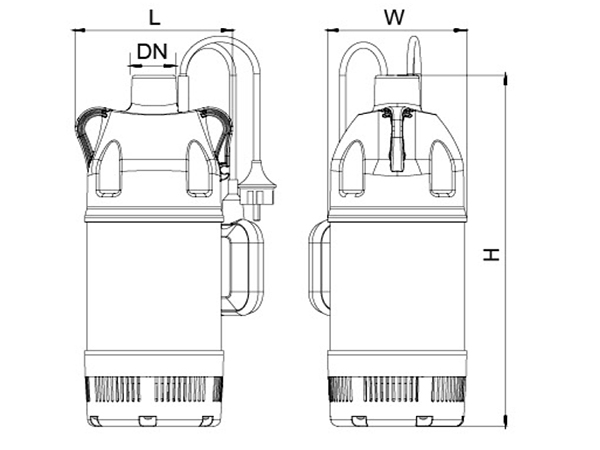

| Model | DN | L (mm) |
W (mm) |
H (mm) |
| XKS-900S | 25 | 170 | 150 | 404 |
| XKS-1100S | 170 | 150 | 428 |

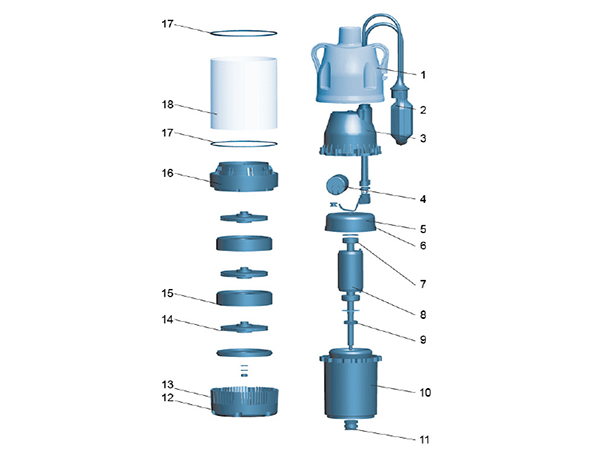

| No. | Part | Material |
| 1 | Pump cover | PP |
| 2 | Float switch | |
| 3 | Cover | PP |
| 4 | Capacitor | |
| 5 | Upper plate | ZL 102 |
| 6 | O-ring | NBR |
| 7 | Bearing | |
| 8 | Rotor | |
| 9 | Oil seal | |
| 10 | Stator | |
| 11 | Mechanical seal | Carbon/Ceramic |
| 12 | Base | PA66 |
| 13 | Filter screen | AISI 304 |
| 14 | Impeller | PPO |
| 15 | Discharge cover | PPO |
| 16 | Diffuser | PPO |
| 17 | Sealing ring | NBR |
| 18 | Pump body | AISI 304 |
| Model | GW(kgs) | L(mm) | W(mm) | H(mm) | Quantity (PCS/20'teu) |
| XKS-900S | 9.9 | 245 | 190 | 455 | 1380 |
| XKS-1100S | 11 | 245 | 190 | 480 | 1104 |
