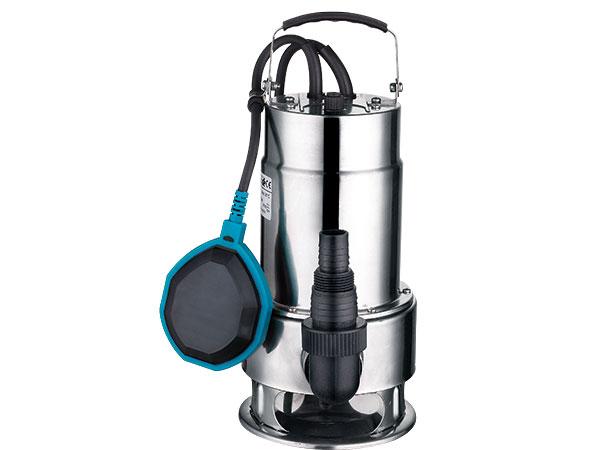

XKS-SW Garden Submersible Pump

XKS-SW Garden Submersible Pump

Application
- Garden stainless steel submersible pump can be used to transfer clean or slightly dirty water or other liquids o with similar physical and chemical properties towards water.
- Suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.

XKS-SW Garden Submersible Pump Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

XKS-SW Garden Submersible Pump Motor Features
- Stainless steel pump body.
- Float switch ensure automatic cut-in and cut-out.
- Max. liquid temperature: +35℃.
- Max. immersion depth: 7m.
- Max. diameter of particle: 35 mm.

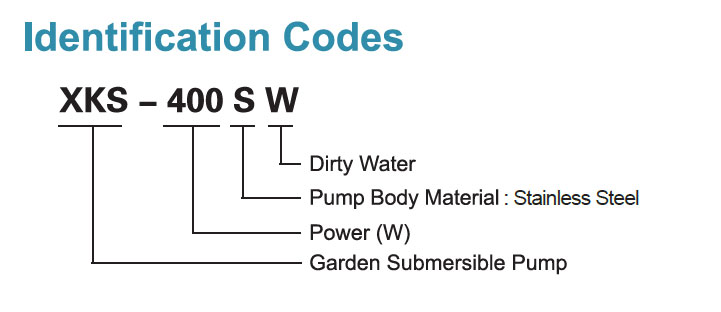

Identification Codes
Technical Data of XKS-SW Garden Submersible Pump
MODEL POWER Q(m³/h) 0 2 4 6 8 10 12
W HP Q(l/min) 0 33 67 100 133 167 200
XKS-400SW 400 0.5 H (m) 4.7 3.5 2.5 1.5 ˗ ˗ ˗
XKS-550SW 550 0.7 7 6.2 5.1 3.8 2.5 ˗ ˗
XKS-750SW 750 1 8.3 7.3 6.3 5.2 4.2 2.5 ˗
XKS-1000SW 1000 1.3 10.3 9.3 8.2 7 5.8 4.5 2.8
XKS-SW Garden Submersible Pump Hydraulic Performance Curves

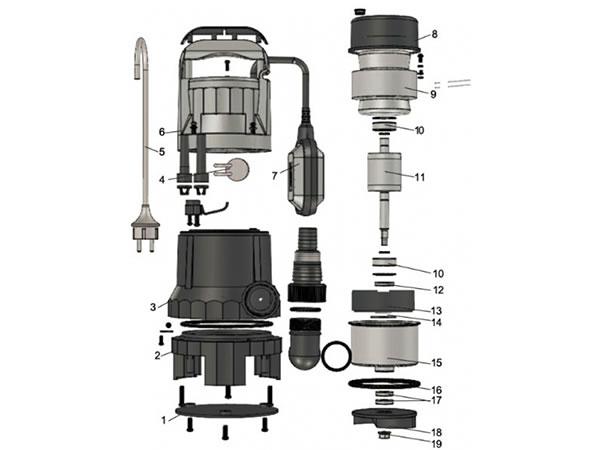

Material Table of XKS-SW Garden Submersible Pump
No. Part Material No. Part Material
1 Handle AISI 304 16 O-ring NBR
2 Cable Rubber 17 Canister Stainless
3 Pump Body AISI 304 18 Lip Seal
4 Roof PP 19 Retainer Ring PP
5 Jacket NBR 20 Pump Support ABS
6 O-ring NBR 21 Impeller PA6
7 Pump Body AISI 304 22 Nut AISI 304
8 Capacitor



9 Float Switch PP


10 Upper Cover



11 Stator



12 Bearing



13 Rotor



14 Lip Seal



15 Bearing Base MPPO


LEO is a listed company in China (stock code 002131), LEO is a leading garden stainless steel water submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, wastewater pumps, deep well pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
