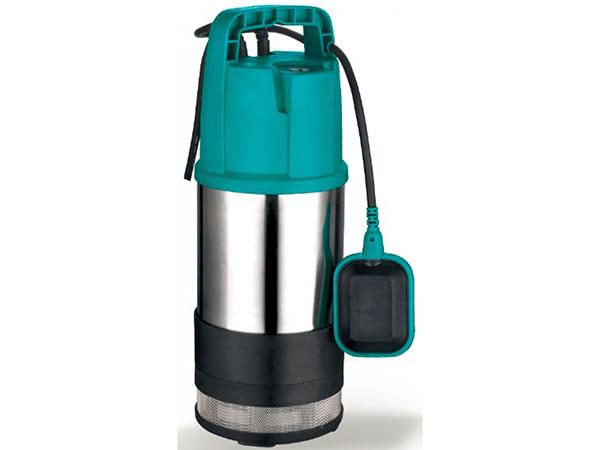

LKS-900S Stainless Steel Multistage Submersible Pump
Application
- LKS-900S Stainless Steel Multistage Submersible Pump is mainly used for use in traditional wells, water deposits and collection tanks.
- The pump is also suitable for small scale irrigation system.
LKS-900S Stainless Steel Multistage Submersible Pump Features
- Stainless steel pump body.
- High lift with multistage-impeller design.
- Max. liquid temperature: +35℃.
- Max. immersion depth: 5m.
- Max. particle diameter: 1 mm.
LKS-900S Stainless Steel Multistage Submersible Pump Motor Features
- Both cooper and aluminum winding available.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

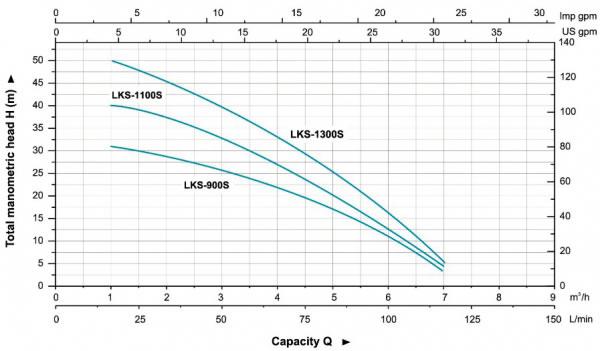

| MODEL | POWER | Q(m³/h) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | |
| W | Q(l/min) | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 | 66.7 | 75 | 83.3 | 91.7 | 100 | 108.3 | ||
| LKS-900S | 900 | H (m) | 31.5 | 31 | 30 | 28.5 | 27.5 | 26 | 23.5 | 22 | 19 | 17.5 | 14.5 | 11 | 7.5 | |
| LKS-1100S | 1100 | 42 | 40 | 38 | 37.5 | 35 | 32.5 | 30 | 27 | 23 | 20 | 16.5 | 12.5 | 8.5 | ||
| LKS-1300S | 1300 | 51 | 50 | 47.5 | 45 | 42.5 | 40 | 36.5 | 32.5 | 29 | 25 | 21 | 16.5 | 11 |

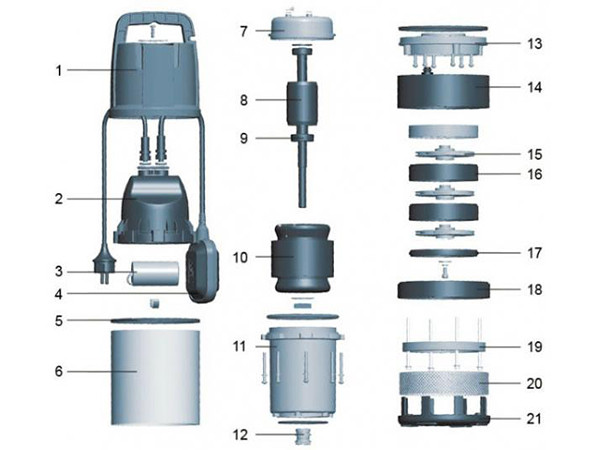

| No. | Part | Material | No. | Part | Material |
| 1 | Pump Body | PP | 14 | Holder Enclosure | PP |
| 2 | Cover | PP | 15 | Impeller | PPO |
| 3 | Capacitor | 16 | Diffuser | PPO | |
| 4 | Float Switch | 17 | Pump Cover | PPO | |
| 5 | O-ring | NBR | 18 | Diffuser Fixer | PP |
| 6 | Pump Body | AISI 304 | 19 | Clamping Cap | PPO |
| 7 | Upper Cover | ZL 102 | 20 | Filter | AISI 304 |
| 8 | Rotor | 21 | Base | PA6 | |
| 9 | Bearing | ||||
| 10 | Winds | ||||
| 11 | Stator Shield | ZL 102 | |||
| 12 | Mechanical Seal | Carbon/Ceramic | |||
| 13 | Holder | ZL 102 |
LEO is a listed company in China (stock code 002131), LEO is a leading garden water multistage submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, agricultural pumps, centrifugal pumps, deep well water pumps with custom solutions. LEO multistage water pumps can meet you any requires in domestic pumping systems.
