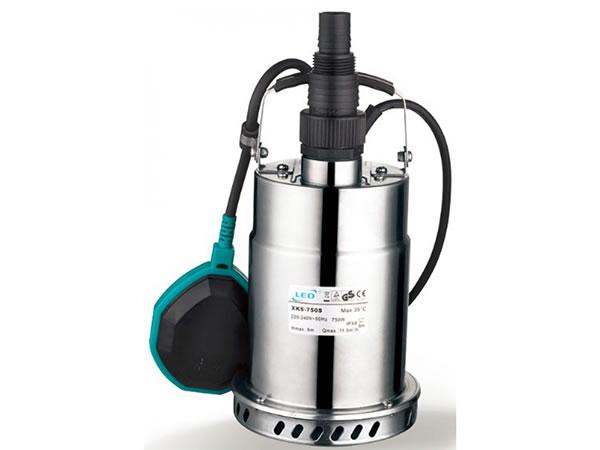

XKS-S Garden Submersible Pump

XKS-S Garden Submersible Pump

Application
- Garden stainless steel submersible pump can be used to transfer clean or slightly dirty water or other liquids o with similar physical and chemical properties towards water.
- Suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.

XKS-S Garden Submersible Pump Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

XKS-S Garden Submersible Pump Motor Features
- Stainless steel pump body.
- Float switch ensure automatic cut-in and cut-out.
- Max. liquid temperature: +35℃.
- Max. immersion depth: 7m.
- Max. diameter of particle: 5 mm.

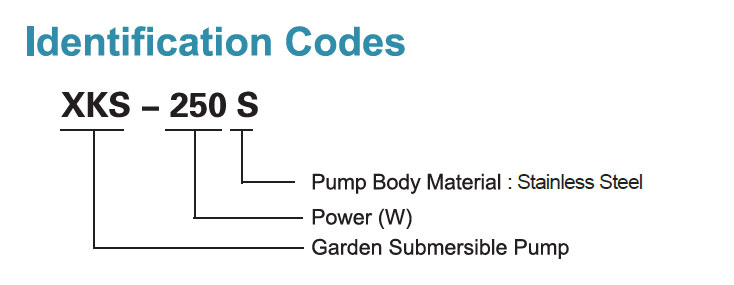

Identification Codes
Technical Data of XKS-S Garden Submersible Pump
MODEL POWER Q(m³/h) 0 2 4 6 8 10 12
W HP Q(l/min) 0 33 67 100 133 167 200
XKS-250S 250 0.3 H (m) 5.5 3.8 2.3 ˗ ˗ ˗ ˗
XKS-400S 400 0.5 6.3 5.5 4.5 3 2 ˗ ˗
XKS-500S 500 0.7 7.5 6.5 5.3 4 2.5 ˗ ˗
XKS-750S 750 1 8.5 7.8 6.8 5.5 4 2.3 ˗
XKS-1000S 1000 1.3 11.5 10.6 9.5 8 6 4 1.9

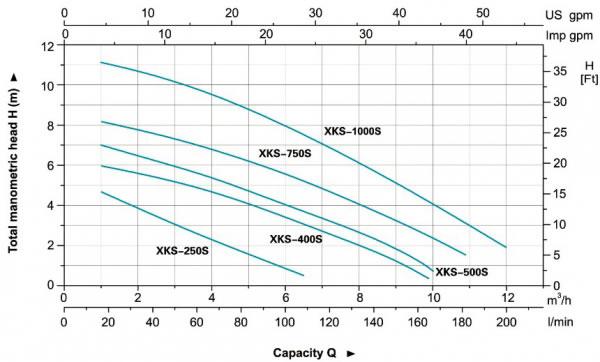

XKS-S Garden Submersible Pump Hydraulic Performance Curves

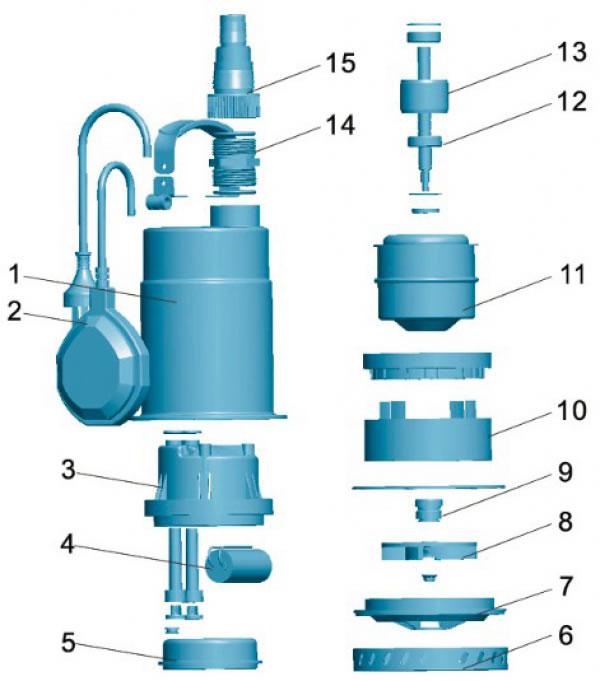

Material Table of XKS-S Garden Submersible Pump
No. Part Material
1 Pump Cover AISI 304
2 Float Switch
3 Upper Cover PP
4 Capacitor
5 Upper Plate ZL 102
6 Pump Base AISI 304
7 Diffuser PP
8 Impeller PPO
9 Mechanical Seal Carbon/Ceramic
10 Pump Support ABS
11 Stator
12 Ball Bearing
13 Rotor
14 Connector PP
15 Connector PP

LEO is a listed company in China (stock code 002131), LEO is a leading garden stainless steel water submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, sewage pumps, centrifugal pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
