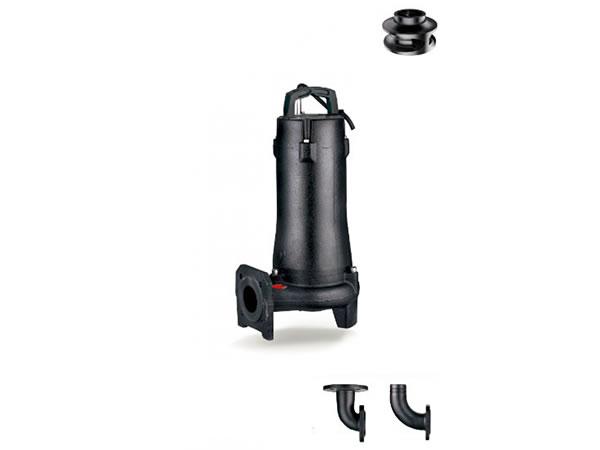

65SWE Wastewater & Sewage Water Pump
Application
- Drainage of wastewater from the attenuation tank, purifying tank and sewage tank in water treatment plant.
- Drainage of waste water containing fibrous additives from leather factory and food processing factory.
- Sewage management, accumulated water, septic tank, stock farm.
- Pumping sewage for hotels, restaurants, schools and public buildings.
Wastewater & Sewage Water Pump Features
- High efficient and anti-clogging Enclosed Channel impeller design.
- Flexible installations with house, pipes or quick-coupling systems.
- Flow switch included for single phase pump with motor pump ≤1.1kw.
Working Conditions for Wastewater & Sewage Water Pump
- Liquid temperature: 0-40℃
- Max. Immersion depth: 5 m.
Wastewater & Sewage Water Pump Motor Features
- Frequency/Pole number: 50Hz/2.
- Insulation class: F.
- Protection Class: IPX8.
- Bearing: Ball Type.
- Mechanical seal: Double-end mechanical seals.

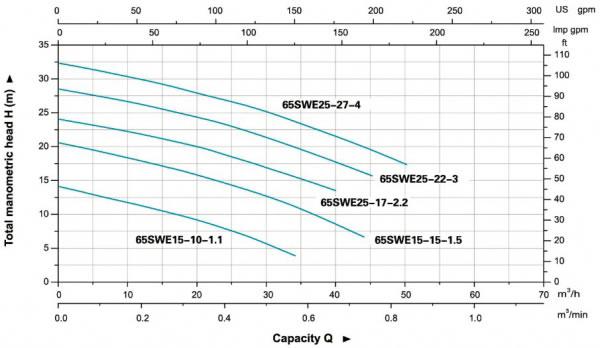

| Model | Power | Discharge mm(inch) | Rated Flow (m³ /h ) | Rated Head (m) | Solid Passage (mm) | ||
| Single Phase | Three Phase | KW | HP | ||||
| 1.1 | 1.5 | 65(2.5") | 15 | 10 | 25 | ||
| 1.5 | 2 | 65(2.5") | 15 | 15 | 25 | ||
| ˗ | 2.2 | 3 | 65(2.5") | 25 | 17 | 25 | |
| ˗ | 3 | 4 | 65(2.5") | 25 | 22 | 25 | |
| ˗ | 4 | 5.5 | 65(2.5") | 25 | 28 | 25 | |

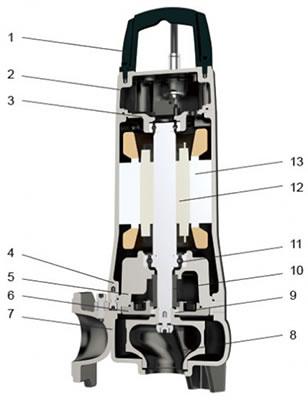

| No. | Part | Material |
| 1 | Handle | ZG304 |
| 2 | Upper Cover | HT200 |
| 3 | Upper Bearing Seat | HT200 |
| 4 | Motor Body | HT200 |
| 5 | Oil Chamber | HT200 |
| 6 | Pump Cover | HT200 |
| 7 | Pump Body | HT200 |
| 8 | Impeller | HT200 |
| 9 | Oil Seal | |
| 10 | Mechanical Seal | Upper: Sic/Carbon Lower: Sic/Sic |
| 11 | Bearing | |
| 12 | Rotor | |
| 13 | Stator |
LEO is a listed company in China (stock code 002131), LEO is a leading wastewater and sewage water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, single phase and three phase pumps with custom solutions. LEO wastewater pumps can meet you any requires in commercial pumping systems.
