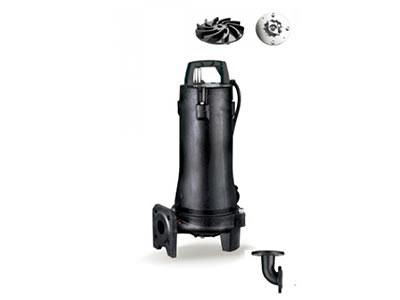

50SWP Wastewater & Sewage Water Pump

 50SWP Wastewater & Sewage Water Pump

Application
- Used in pressure sewage system.
- Drainage of wastewater from individual residences, apartment buildings, recreational developments, models.
- Transferring wastewater of commercial buildings, industrial plants, wastewater sampling, small hospitals.
- Schools, federal, state and local parks, wastewater drainage.
- To transfer various wastewater and sewage.

Sewage Water Pump Features
- The pump has a semi-open impeller design with a reliable grinding system.
- The large-diameter impeller generates a high pressure and the grinding system grinds solids into small pieces, which can be drained without clogging the pipes.
- The pumps can be connected to pipes directly or to an auto-coupling system.
- Flow switch included for single phase pump with motor pump ≤1.1kw.

Working Conditions for sewage Water Pump
- Liquid temperature: 0-40℃
- Max. Immersion depth: 5 m.

Sewage Water Pump Motor Features
- Frequency/Pole number: 50Hz/2.
- Insulation class: F.
- Protection Class: IPX8.
- Bearing: Ball Type.
- Mechanical seal: Double-end mechanical seals.

Technical Data of 50SWP Wastewater & Sewage Water Pump
Model Power Discharge mm(inch) Rated Flow (m³ /h ) Rated Head (m) Solid Passage (mm)
KW HP
50SWP12-19-2.2/QG 2.2 3 50(20") 12 19 ˗
50SWP12-22-3/QG 3 4 50(20") 12 22 ˗
50SWP12-30-4/QG 4 5.5 50(20") 12 30 ˗

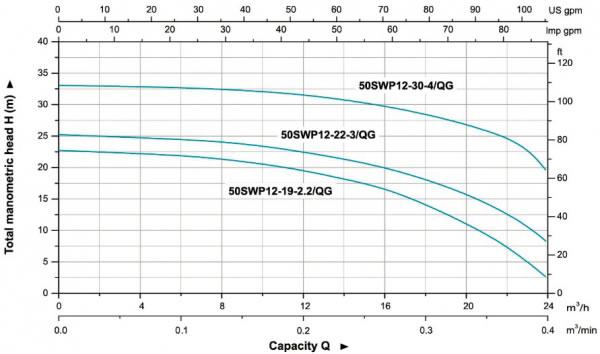

Hydraulic Performance Curves for 50SWP Wastewater & Sewage Water Pump

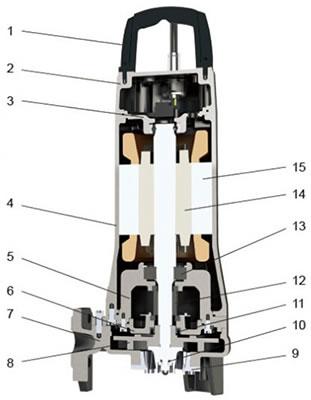

Material Table of 50SWP Wastewater & Sewage Water Pump
No. Part Material
1 Handle ZG304
2 Upper Cover HT200
3 Upper Bearing Seat HT200
4 Motor Body HT200
5 Oil Chamber HT200
6 Pump Cover HT200
7 Pump Body HT200
8 Impeller HT200
9 Cutting Ring AISI 034
10 Radial Cutter AISI 034
11 Oil Seal
12 Mechanical Seal Upper: Sic/Carbon Lower: Sic
13 Bearing
14 Rotor
15 Stator

LEO is a listed company in China (stock code 002131), LEO is a leading wastewater and sewage water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, domestic pumps, centrifugal pumps with custom solutions. LEO sewage pumps can meet you any requires in commercial pumping systems.
