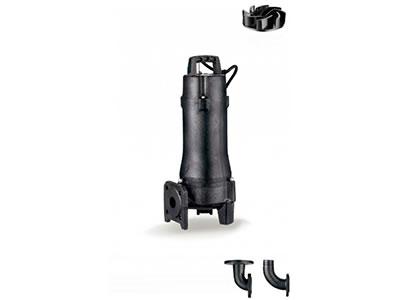

80SWU Wastewater & Sewage Water Pump

 80SWU Wastewater & Sewage Water Pump

Application
- Drainage of wastewater from the attenuation tank, purifying tank and sewage tank in water treatment plant.
- Drainage of waste water containing fibrous additives from leather factory and food processing factory.
- Sewage management, accumulated water, septic tank, stock farm.
- Pumping sewage for hotels, restaurants, schools and public buildings.

Wastewater & Sewage Water Pump Features
- Semi-open Vortex Impeller design, suitable for transfer of liquid containing impurities and long fiber substance.
- Flexible installations with house, pipes or quick-coupling systems.
- Flow switch included for single phase pump with motor pump ≤1.1kw.

Working Conditions for Wastewater & Sewage Water Pump
- Liquid temperature: 0-40℃
- Max. Immersion depth: 5 m.

Wastewater & Sewage Water Pump Motor Features
- Frequency/Pole number: 50Hz/2.
- Insulation class: F.
- Protection Class: IPX8.
- Bearing: Ball Type.
- Mechanical seal: Double-end mechanical seals.

Technical Data of 80SWU Wastewater & Sewage Water Pump
Model Power Discharge mm(inch) Rated Flow (m³ /h ) Rated Head (m) Solid Passage (mm)
Single Phase Three Phase KW HP
80SWUm30-4.5-1.5 80SWU30-4.5-1.5 1.5 2 80(3") 30 4.5 76
80SWUm30-7-2.2 80SWU30-7-2.2 2.2 3 80(3") 30 7 76

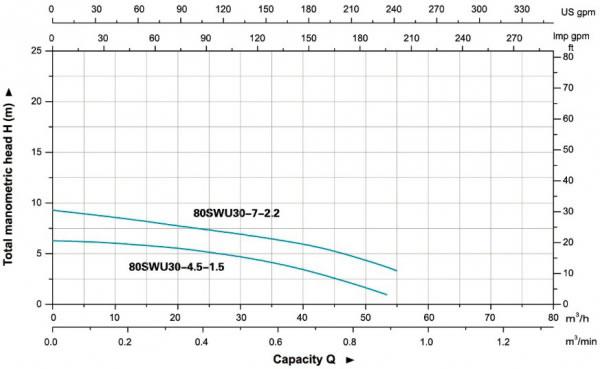

Hydraulic Performance Curves for 80SWU Wastewater & Sewage Water Pump

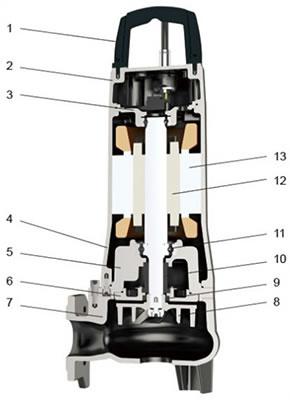

Material Table of 80SWU Wastewater & Sewage Water Pump
No. Part Material
1 Handle ZG304
2 Upper Cover HT200
3 Upper Bearing Seat HT200
4 Motor Body HT200
5 Oil Chamber HT200
6 Pump Cover HT200
7 Pump Body HT200
8 Impeller HT200
9 Oil Seal
10 Mechanical Seal Upper: Sic/Carbon Lower: Sic
11 Bearing
12 Rotor
13 Stator

LEO is a listed company in China (stock code 002131), LEO is a leading wastewater and sewage water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, sump pumps with custom solutions. LEO sewage pumps can meet you any requires in commercial pumping systems.
