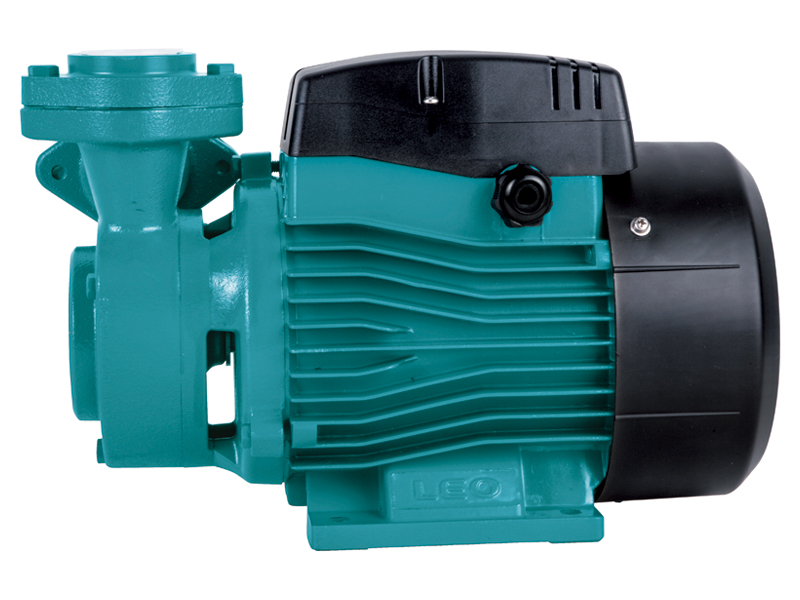

APm- F Peripheral Pump
Application
- APm-F peripheral pump can be used to transfer clean water or other liquids which are similar to water in physical and chemical properties.
- It is suitable for small residential water supply systems, automatic water sprinkler systems, small air conditioner systems or supporting equipment.
APm-F Peripheral Pump Features
-Special anti-rust treatment for cast iron pump body and support
-AISI 304 shaft
-Max. liquid temperature: +60℃
-Max. suction: +8 m
APm-F Peripheral Pump Motor Features
-C&U bearing
- Copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃
- IE 2 motor

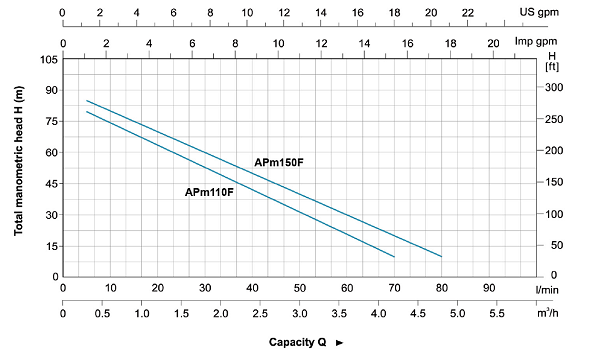

| Model | Power | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | ||
| Single Phase | Three Phase | Kw | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 |
| APm110F |
AP110F |
1.1 | 1.5 | H (m) | 85 | 80 | 75 | 65 | 60 | 55 | 50 | 45 | 30 | 18 | 10 | 10 | - |
| APm150F |
AP150F |
1.5 | 2.0 | 90 | 86 | 80 | 75 | 70 | 65 | 60 | 55 | 40 | 30 | 20 | 20 | 10 | |

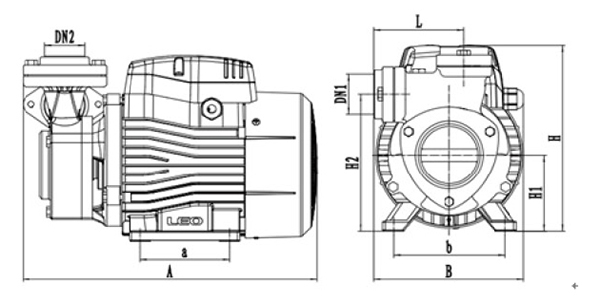

| Model | DN1 | DN2 | A (mm) |
B (mm) |
L (mm) |
a (mm) |
b (mm) |
H (mm) |
H1 (mm) |
H2 (mm) |
| APm110F | 1.25" | 1.25" | 330 | 168 | 100 | 100 | 125 | 210 | 86 | 154.5 |
| APm150F | 1.25" | 1.25" | 332 | 168 | 100 | 100 | 125 | 210 | 86 | 154.5 |

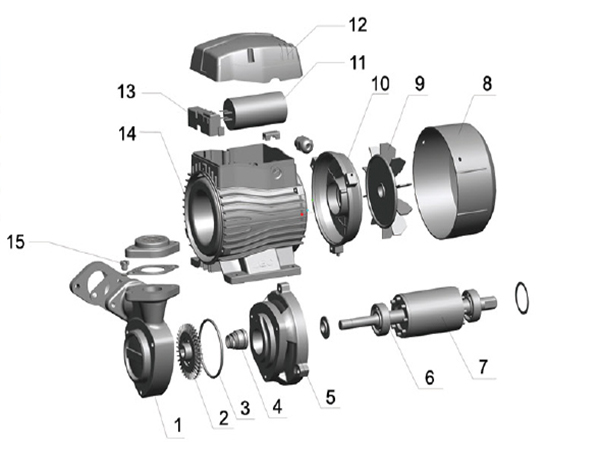

| No | Part | Material |
| 1 | Pump body | HT200 |
| 2 | Mechanical seal | Carbon/Ceramic |
| 3 | O-ring | NBR |
| 4 | Impeller | Brass |
| 5 | Support | HT200 |
| 6 | Bearing | |
| 7 | Rotor | |
| 8 | Fan cover | PP |
| 9 | Fan | PP |
| 10 | Rear cover | ZL 102 |
| 11 | Capacitor | |
| 12 | Terminal box | ABS |
| 13 | Terminal board | PC |
| 14 | Stator | |
| 15 | Filling plug | HPb59-1 |
| Model | GW (kg) | L(mm) | W(mm) | H(mm) | Quantity (PCS/20'teu) |
| APm110F | 16.5 | 365 | 200 | 245 | 1240 |
| APm150F | 17.4 | 365 | 200 | 245 | 1180 |
