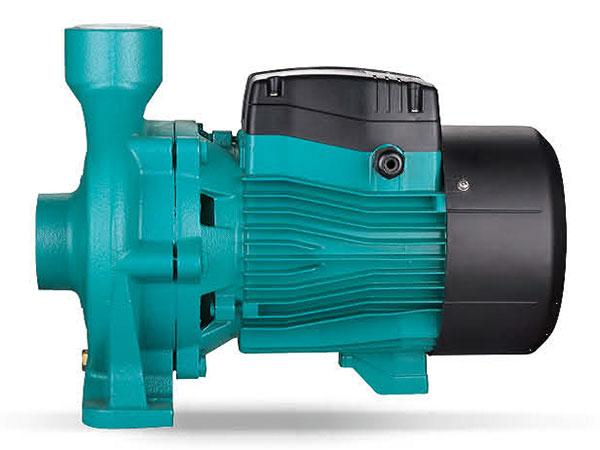

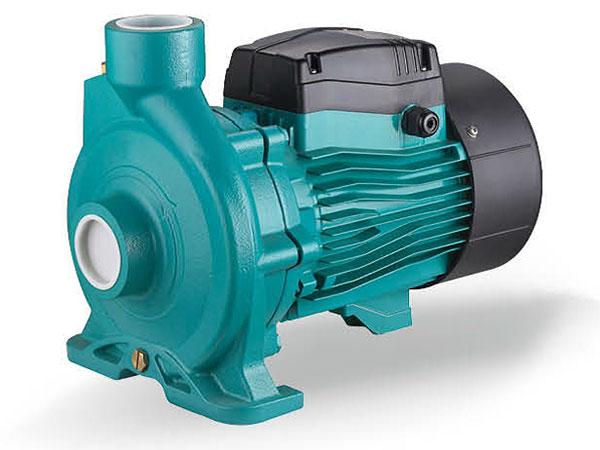

ACm-CH2 Centrifugal Pump

  • ACm-CH2 Centrifugal Pump
  • ACm-CH2 Centrifugal Pump

Centrifugal Pump Application
- Centrifugal pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for industry use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transferring, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.

ACmCH2, C2 Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

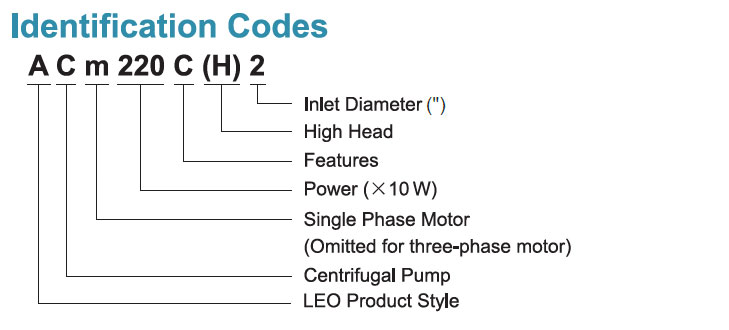

Identification Codes
Technical Data of ACmCH2, C2 Centrifugal Pump
MODEL POWER Q(m³/h) 0 6 9 12 15 18 24 27 30 36 42 48 54
Single Phase Three Phase KW HP Q(l/min) 0 100 150 200 250 300 400 450 500 600 700 800 900
ACm220CH2 AC220CH2 2.2 3 H
(m) 		31 30 29.5 28.5 27.5 26 21.5 18.5 ˗ ˗ ˗ ˗ ˗
ACm300CH2 AC300CH2 3 4 38 37.5 37 36 34.5 33 28.5 25.5 ˗ ˗ ˗ ˗ ˗
ACm400CH2 AC400CH2 4 5.5 49 48 47 46 45 43.5 39.5 37 ˗ ˗ ˗ ˗ ˗
˗ AC550CH2 5.5 7.5 54 52.5 52 51 50 49 46 44 42 ˗ ˗ ˗ ˗
ACm300C2 AC300C2 3 4 30 29.5 29 28.5 28 27 25 23.5 22 19.5 15.5 11.5 ˗
ACm400C2 AC400C2 4 5 39 38.5 38 37.5 37 36 34 32.5 31 28 24 18.5 13
˗ AC550C2 5.5 7.5 46.5 45.5 45 44.5 43.5 42.5 40 38.5 37 33 28 22 15
˗ AC750C2 7.5 10 56.5 55 55 54.5 53.5 52.5 50 48.5 46.5 42 36.5 30.5 20
˗ AC750C4 7.5 10 52.5 52 52 51.5 51 50.5 48 46.5 44.5 40 35.5 30.5 24

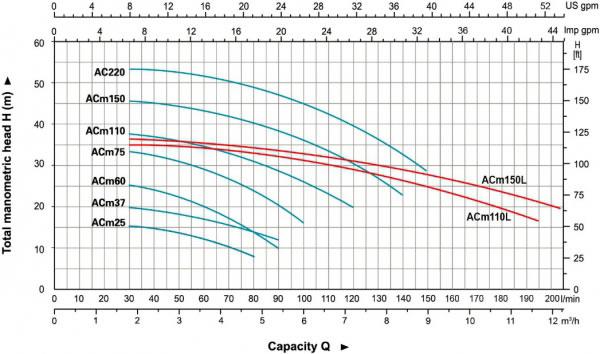

ACmCH2, C2 Centrifugal Pump Hydraulic Performance Curves

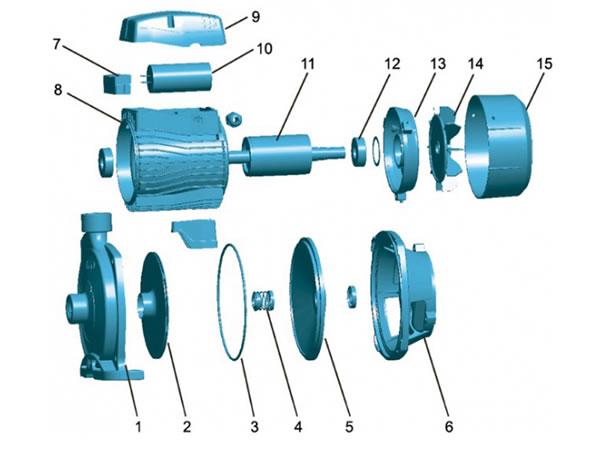

Material Table of ACmCH2, C2 Centrifugal Pump
No. Part Material
1 Pump body HT 200
2 Impeller AISI 304 Brass
3 Mechanical seal Carbon/Ceramic
4 Bracket Cover HT 200
5 Oil Seal
6 Support HT 200
7 Bearing
8 Rotor
9 Fan Cover PP
10 Fan PP
11 Rear cover ZL 102
12 Stator
13 Capacitor
14 Terminal box ABS
