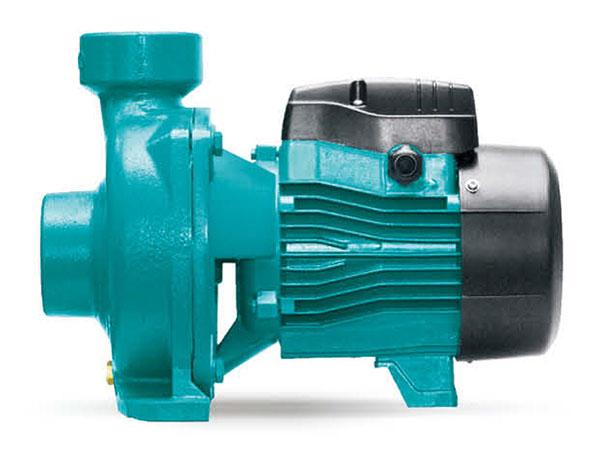

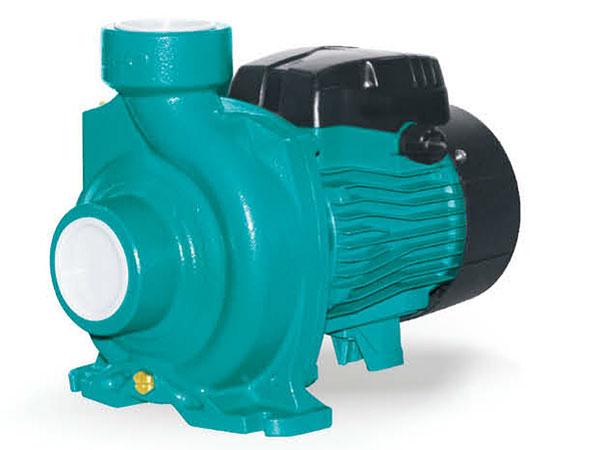

ACm-B2 Centrifugal Pump
Centrifugal Pump Application
- Centrifugal pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for industry use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transferring, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.
ACmB2 Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

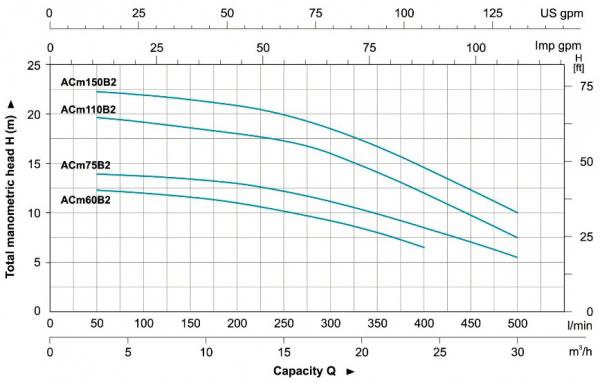

| MODEL | POWER | Q(m³/h) | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 | ||
| Single Phase | Three Phase | KW | HP | Q(l/min) | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| 2.2 | 3 | H (m) | 12.5 | 12 | 11.7 | 11 | 10.2 | 9.2 | 8 | 6.5 | ˗ | ||
| 3 | 4 | 14 | 13.7 | 13.5 | 13 | 12.3 | 11.2 | 9.9 | 8.5 | 5.5 | |||
| 4 | 5.5 | 19.5 | 19.2 | 19 | 18.5 | 17.7 | 16.5 | 15 | 13 | 8.5 | |||
| 5.5 | 7.5 | 22 | 21.5 | 21 | 20.5 | 19.5 | 18.3 | 16.5 | 14.5 | 9.5 | |||
| No. | Part | Material |
| 1 | Pump body | HT 200 |
| 2 | Impeller | AISI 304 Brass |
| 3 | Mechanical seal | Carbon/Ceramic |
| 4 | Support Cover | HT 200 |
| 5 | Oil Seal | |
| 6 | Support | ZL 102 |
| 7 | Bearing | |
| 8 | Rotor | |
| 9 | Terminal box | ABS |
| 10 | Stator | |
| 11 | Capacitor | |
| 12 | Rear cover | ZL 102 |
| 13 | Fan Cover | PP |
| 14 | Fan | PP |
