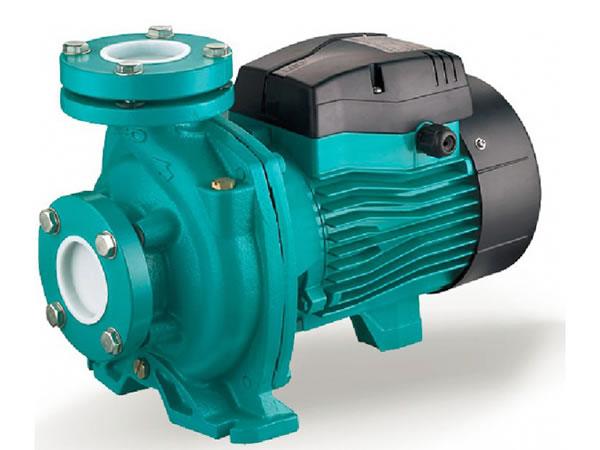

ACm-BF Centrifugal Pump

ACm-BF Centrifugal Pump

Centrifugal Pump Application
- Centrifugal pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for industry use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transferring, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.

ACm-BF Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Built-in thermal protector for single phase motor (≤1.5KW).
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

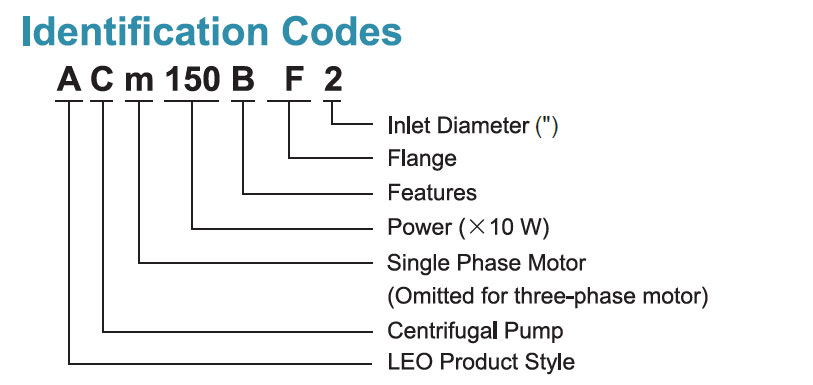

Identification Codes
Technical Data of ACm-BF Centrifugal Pump
MODEL POWER Q(m³/h) 0 12 18 24 30 36 42 48 54 60 66 72 84 96
Single Phase Three Phase KW HP Q(l/min) 0 200 300 400 500 600 700 800 900 1000 1100 1200 1400 1600
ACm110BF2 AC110BF2 1.1 1.5 H
(m) 		19.5 18.5 16.5 13 8.5 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
ACm110BF3 AC110BF3 1.1 1.5 12.5 12.5 21.1 11.5 10.5 9.5 8.4 7.1 5.5 ˗ ˗ ˗ ˗ ˗
ACm150BF2 AC150BF2 1.5 2 22 20.5 18.3 14.5 9.5 ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗ ˗
ACm150BF3 AC150BF3 1.5 2 14.5 14.3 14 13.5 12.8 12 11.2 9.9 8.4 6 ˗ ˗ ˗ ˗
ACm220BF3 AC220BF3 2.2 3 17.5 17.3 17.1 16.5 16 15.2 14.2 14.2 11.7 10 7.2 ˗ ˗ ˗
ACm400BF4 AC400BF4 4 5.5 16.5 ˗ ˗ 16 15.8 15.5 15.3 15.3 15 14.7 14.4 14 13.2 12.1

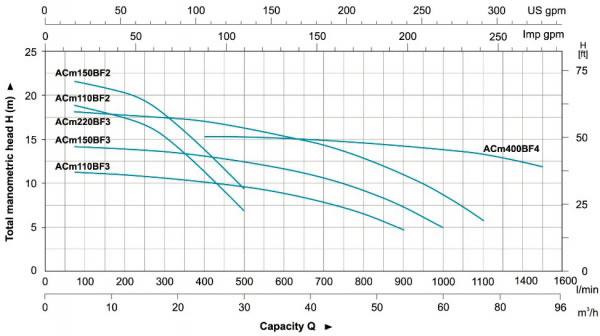

ACm-BF Centrifugal Pump Hydraulic Performance Curves

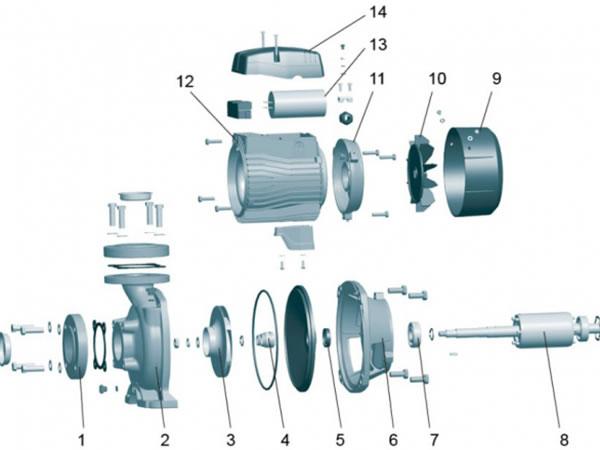

Material Table of ACm-BF Centrifugal Pump
No. Part Material
1 Flange HT 200
2 Pump body HT 200
3 Impeller AISI 304/Brass HT200
4 Mechanical seal Carbon/Ceramic
5 Oil Seal
6 Support HT 200
7 Bearing
8 Rotor
9 Fan Cover PP
10 Fan PP
11 Rear cover HT 200
12 Stator
13 Capacitor
14 Terminal Box PC/ABS
