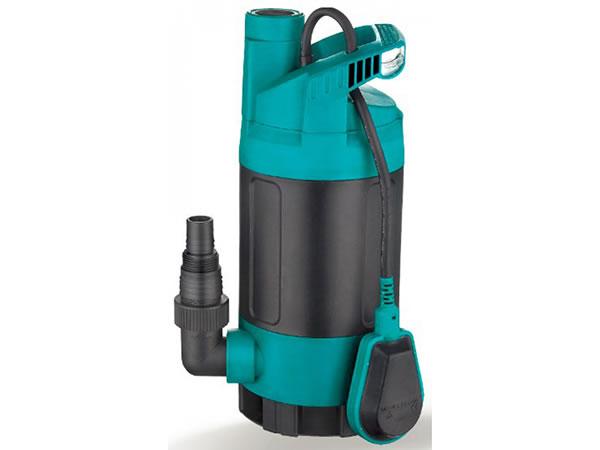

LKS-PW Garden Submersible Pump
Application
- LKS-PW Garden Submersible Pump can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties.
- It is suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.
LKS-PW Garden Submersible Pump Features
- Engineering plastic pump body.
- Extensive use with two outlets.
- Max. liquid temperature: +35℃.
- Float switch ensure automatic cut-in and cut-out.
- Max. immersion depth: 7m.
- Max. diameter of particle: 25mm.
LKS-PW Garden Submersible Pump Motor Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

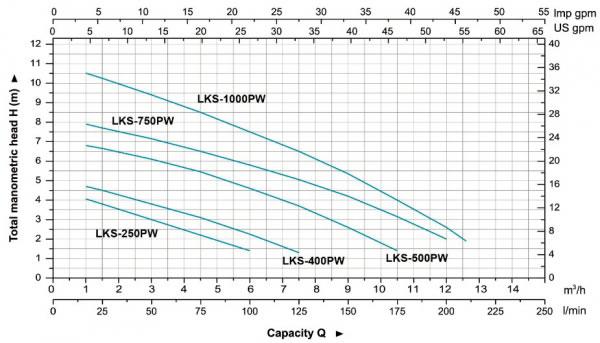

| MODEL | POWER | Q(m³/h) | 0.9 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 | 12.6 | ||
| W | hp | Q(l/min) | 15 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 210 | ||
| LKS-250PW | 250 | 0.3 | H (m) | 4.1 | 3.8 | 3 | 2.2 | 1.4 | ˗ | ˗ | ˗ | ˗ | ˗ | |
| LKS-400PW | 400 | 0.5 | 4.7 | 4.5 | 3.8 | 3.1 | 2.3 | 1.3 | ˗ | ˗ | ˗ | ˗ | ||
| LKS-500PW | 500 | 0.7 | 6.8 | 6.7 | 6.1 | 5.5 | 4.6 | 3.7 | 2.6 | 1.4 | ˗ | ˗ | ||
| LKS-750PW | 750 | 1 | 7.9 | 7.7 | 7.2 | 6.5 | 5.8 | 5.1 | 4.2 | 3.2 | 2 | ˗ | ||
| LKS-1000PW | 1000 | 1.3 | 10.6 | 10.3 | 9.4 | 8.4 | 7.5 | 6.5 | 5.4 | 4.1 | 2.6 | 1.9 | ||

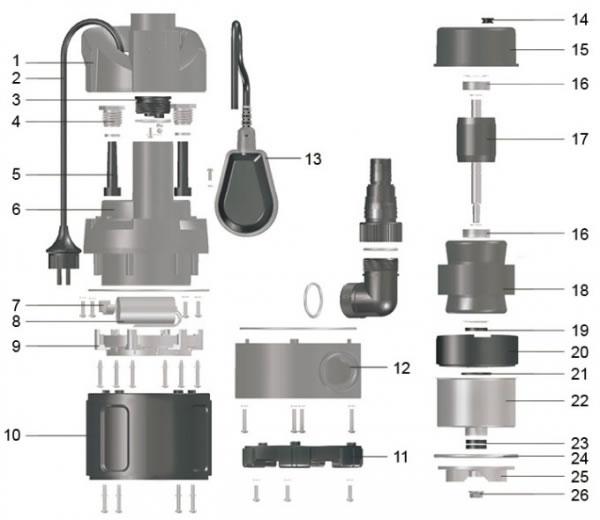

| No. | Part | Material | No. | Part | Material |
| 1 | Handle | PP | 14 | Wire Jacket | NBR |
| 2 | Cable | Rubber | 15 | Upper Cover | |
| 3 | Plug | PP | 16 | Bearing | |
| 4 | Nut | PP | 17 | Rotor | |
| 5 | Cable Jacket | EPDM | 18 | Stator | |
| 6 | Roof | PP | 19 | Lip Seal | |
| 7 | Capacitor Clip | PC/ABS | 20 | Bearing Seat | ZL 102 |
| 8 | Capacitor | 21 | O-ring | NBR | |
| 9 | Retainer Ring | pp | 22 | Stator Cover | Steel |
| 10 | Pump Body | PP | 23 | Lip Seal | |
| 11 | Base Plate | PP | 24 | O-ring | NBR |
| 12 | Base | PP | 25 | Impeller | PA6 |
| 13 | Float Switch | PP | 26 | Nut | Stainless Steel |
