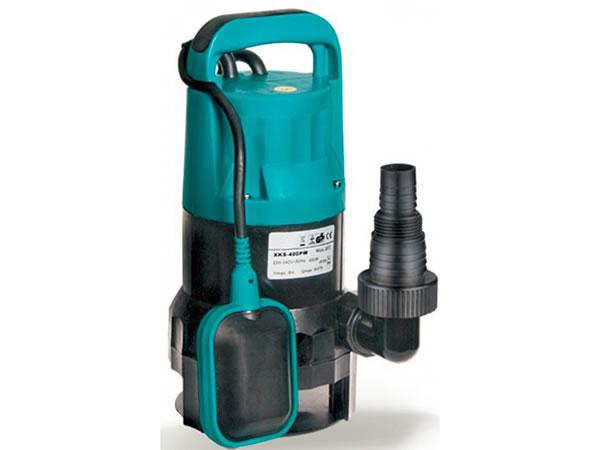

XKS-PW Garden Submersible Pump
Application
- XKS-PW Garden Submersible Pump can be used to transfer clean or slightly dirty water or other liquids with similar physical and chemical properties towards water.
- XKS-PW Garden Submersible Pump is suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.
XKS-PW Garden Submersible Pump Features
- Engineering plastic pump body.
- Float switch ensure automatic cut-in and cut-out.
- Max. liquid temperature: +35℃.
- Max. immersion depth: 7m.
- Max. diameter of particle: 5 mm.
XKS-PW Garden Submersible Pump Motor Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

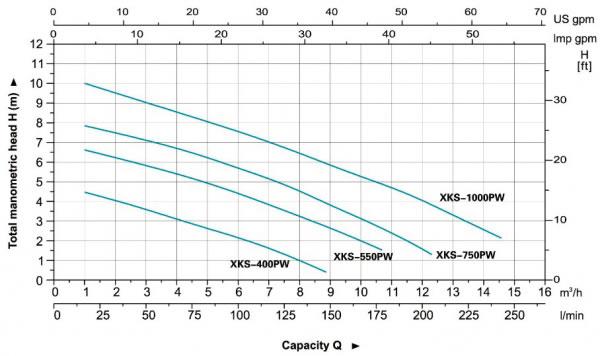

| MODEL | POWER | Q(m³/h) | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 | 13.5 | ||
| W | HP | Q(l/min) | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 225 | 225 | ||
| XKS-400PW | 400 | 0.5 | H (m) | 4.8 | 4.3 | 3.5 | 2.8 | 2 | 1.3 | ˗ | ˗ | ˗ | ˗ | |
| XKS-500PW | 500 | 0.7 | 7 | 6.4 | 5.7 | 5.2 | 4.5 | 3.5 | 2.5 | 1.5 | ˗ | ˗ | ||
| XKS-750PW | 750 | 1 | 8.2 | 7.5 | 7 | 6.5 | 5.6 | 4.8 | 3.8 | 2.8 | 1.5 | ˗ | ||
| XKS-1000PW | 750 | 1.3 | 10.5 | 9.7 | 9 | 8.3 | 7.5 | 6.7 | 5.8 | 5 | 4 | 3 | ||

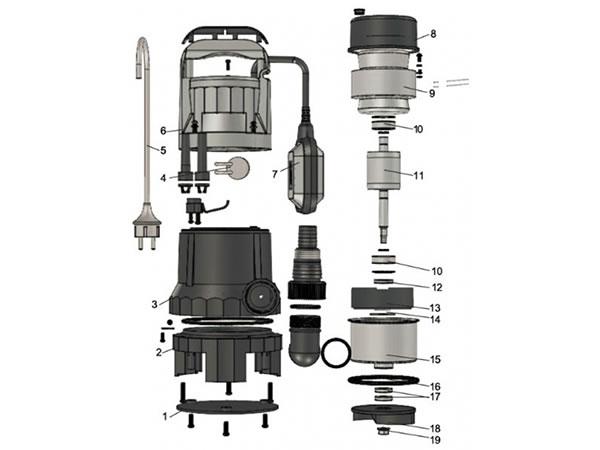

| No. | Part | Material |
| 1 | Base Plate | PP |
| 2 | Pump Base | PP |
| 3 | Pump Body | PP |
| 4 | Capacitor | |
| 5 | Cable | |
| 6 | Roof | PP |
| 7 | Float Switch | |
| 8 | Upper Cover | |
| 9 | Stator | |
| 10 | Bearing | |
| 11 | Rotor | |
| 12 | Lip Seal | |
| 13 | Bearing Seat | DMC |
| 14 | O-ring | NBR |
| 15 | Stator shield | Steel |
| 16 | O-ring | NBR |
| 17 | Lip Seal | |
| 18 | Impeller | PA6 |
| 19 | Nut | AISI 304 |
LEO is a listed company in China (stock code 002131), LEO is a leading garden submersible water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, centrifugal pumps, deep well pumps with custom solutions. LEO submersible water pumps can meet you any requires in domestic pumping systems.
