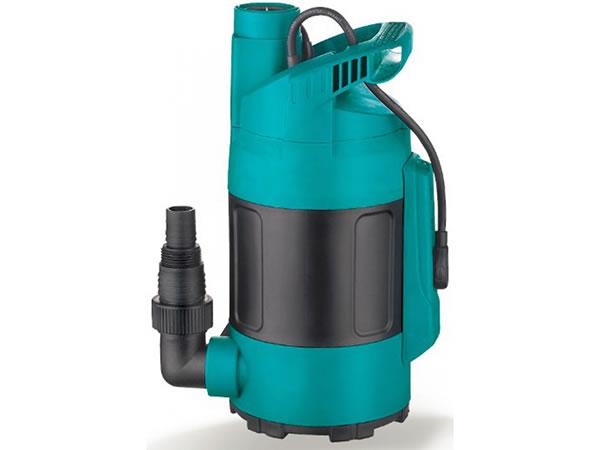

LKS-P Garden Submersible Pump
Application
- LKS-P Garden Submersible Pump can be used to transfer dirty water or other liquids similar to water in physical and chemical properties.
- LKS-P Garden Submersible Pump is suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.
- The pump is specially applicable for small space where water needs to be pumped.
LKS-P Garden Submersible Pump Features
- Engineering plastic pump body.
- Extensive use with two outlets.
- Max. liquid temperature: +35℃.
- Innovative electronic water sensor switch ensure automatic cut-in and cut-out.
- Max. immersion depth: 7m.
- Max. diameter of particle: 5mm.
LKS-P Garden Submersible Pump Motor Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

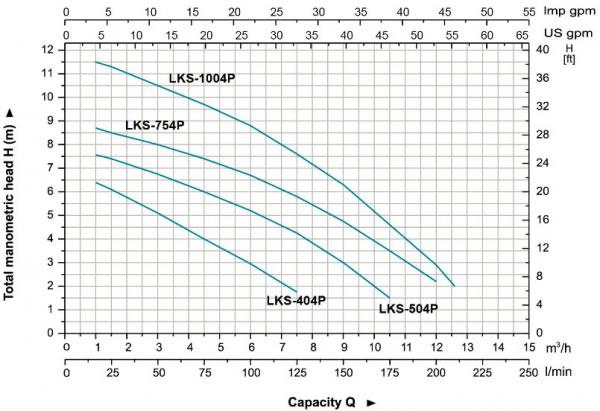

| MODEL | POWER | Q(m³/h) | 0.9 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 | 12.6 | ||
| W | hp | Q(l/min) | 15 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 210 | ||
| LKS-404P | 400 | 0.5 | H (m) | 6.5 | 6.1 | 5.1 | 4 | 3 | 1.8 | ˗ | ˗ | ˗ | ˗ | |
| LKS-504P | 500 | 0.7 | 7.6 | 7.4 | 6.8 | 6 | 5.2 | 4.3 | 3 | 1.5 | ˗ | ˗ | ||
| LKS-754P | 750 | 1 | 8.7 | 8.5 | 8 | 7.4 | 6.7 | 5.8 | 4.8 | 3.5 | 2.2 | ˗ | ||
| LKS-1004P | 1000 | 1.3 | 11.6 | 11.3 | 10.5 | 9.7 | 8.8 | 7.6 | 6.3 | 4.6 | 2.9 | 2 | ||

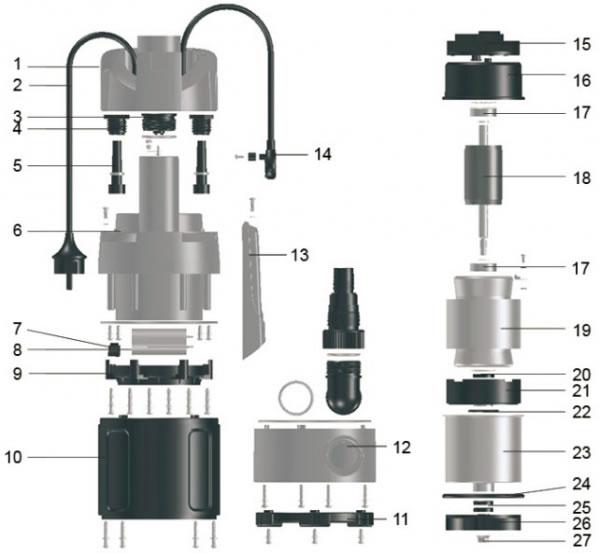

| No. | Part | Material | No. | Part | Material |
| 1 | Handle | PP | 14 | Inductor | NBR |
| 2 | Cable | Rubber | 15 | Controller | |
| 3 | Plug | PP | 16 | Upper Cover | |
| 4 | Nut | PP | 17 | Bearing | |
| 5 | Cable Jacket | EPDM | 18 | Rotor | |
| 6 | Roof | PP | 19 | Stator | |
| 7 | Capacitor Clip | PC/ABS | 20 | Lip Seal | |
| 8 | Capacitor | 21 | Bearing Seat | ZL 102 | |
| 9 | Retainer Ring | pp | 22 | O-ring | NBR |
| 10 | Pump Body | PP | 23 | Stator Cover | Steel |
| 11 | Base Plate | PP | 24 | Lip Seal | |
| 12 | Base | PP | 25 | O-ring | NBR |
| 13 | Inductor Switch | PP | 26 | Impeller | PA6 |
| 27 | Nut | Stainless Steel |
