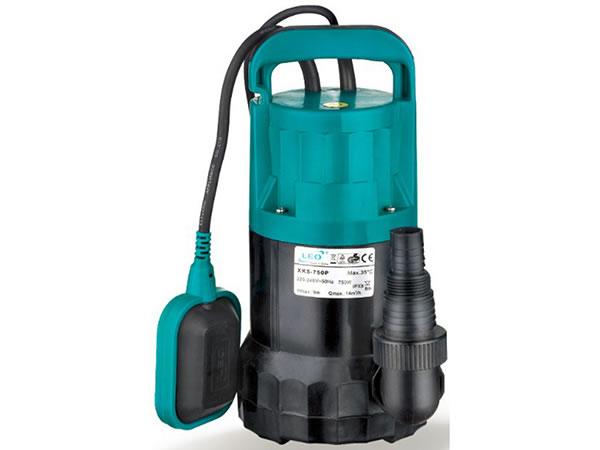

XKS-P Garden Submersible Pump

XKS-P Garden Submersible Pump

Application
- XKS-P Garden Submersible Pump can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties.
- XKS-P Garden Submersible Pump is suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.

XKS-P Garden Submersible Pump Features
- Engineering plastic pump body.
- Float switch ensure automatic cut-in and cut-out.
- Max. liquid temperature: +35℃.
- Max. immersion depth: 7m.
- Max. diameter of particle: 5 mm.

XKS-P Garden Submersible Pump Motor Features
- Motor with aluminum winding.
- Built-in thermal protector.
- Insulation class: F.
- Protection class: IPX8.

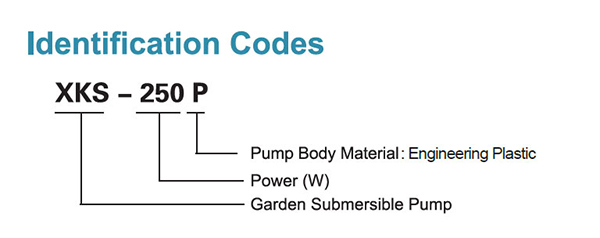

Identification Codes
Technical Data of XKS-P Garden Submersible Pump
MODEL POWER Q(m³/h) 0 1.5 3 4.5 6 7.5 9 10.5
W HP Q(l/min) 0 25 50 75 100 125 150 175
XKS-250P 250 0.3 H (m) 5.8 5 3.8 2.4 ˗ ˗ ˗ ˗
XKS-400P 400 0.5 6.5 5.8 4.7 3.7 2.6 1.5 ˗ ˗
XKS-500P 500 0.7 7.6 7.6 6.8 5.7 4.7 3.6 2.3 ˗
XKS-750P 750 1 8.7 8.5 7.7 7.2 6.2 5.5 4.5 3.2

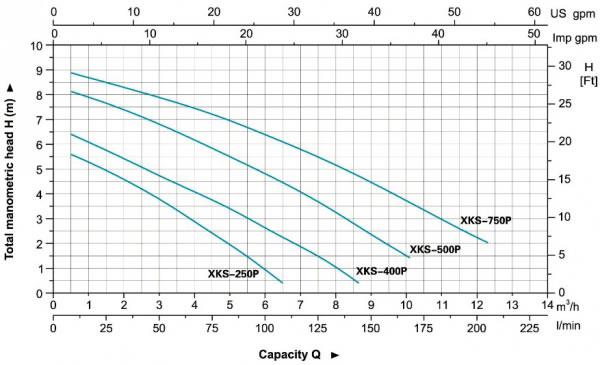

XKS-P Garden Submersible Pump Hydraulic Performance Curves

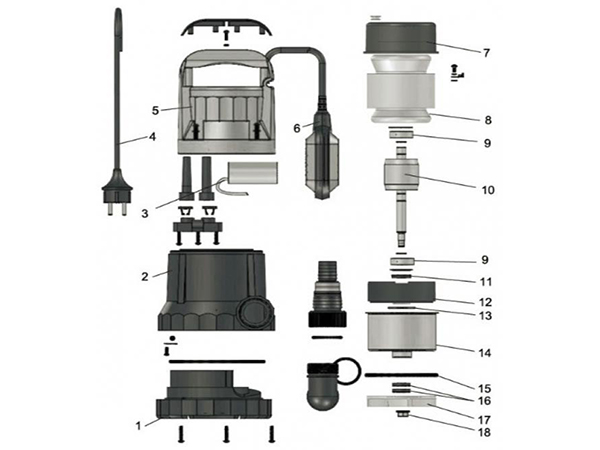

Material Table of XKS-P Garden Submersible Pump
No. Part Material
1 Pump Base PP
2 Pump Body PP
3 Capacitor
4 Cable
5 Roof PP
6 Float Switch
7 Upper Cover
8 Stator
9 Bearing
10 Rotor
11 Lip Seal
12 Bearing Seat DMC
13 O-ring NBR
14 Stator shield Steel
15 O-ring NBR
16 Lip Seal
17 Impeller PA6
18 Nut AISI 304

LEO is a listed company in China (stock code 002131), LEO is a leading garden watering submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, agricultural pumps, deep well pumps with custom solutions. LEO garden water pumps can meet you any requires in domestic pumping systems.
