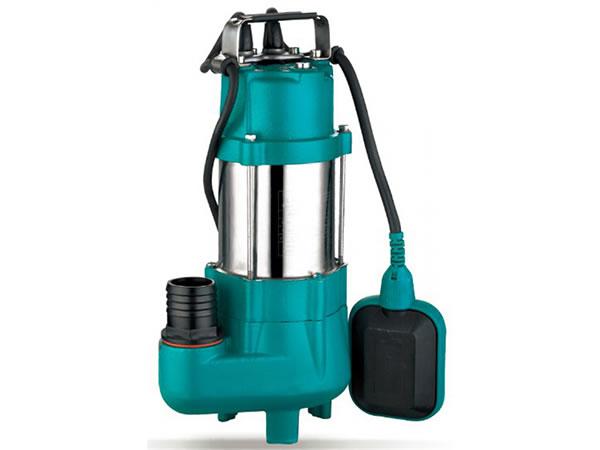

XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump

 XSP8, 9 Stainless Steel Submersible Pump

XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.

XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.

XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

Technical Data of XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump
Model Power Outlet diameter (mm) Voltage (V/Hz) Max. flow (l/min) Max. head (m) Max. dia. of particle (mm) GW (kgs) Packing size (mm) Quantity (PCS/20'TEU)
KW HP
XSP8-7/0.18l 0.18 0.25 40,32,25 220/50 133 7 15 9 185x180x360 2322
XSP9-7.5/0.25l 0.25 0.33 40,32,25 220/50 150 7.5 15 10 185x180x380 2174

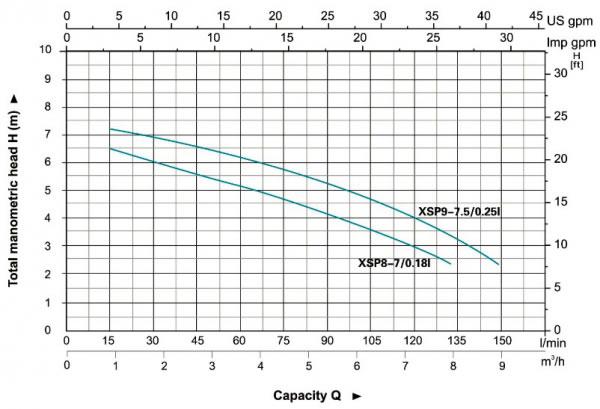

Hydraulic Performance Curves of XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump

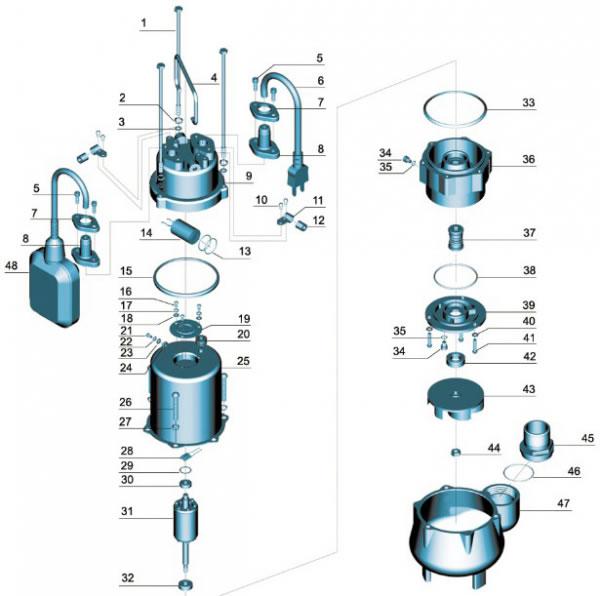

Material Table of XSP 0.25Hp 0.33Hp Stainless Steel Submersible Sewage Pump
No. Part Material No. Part Material
1 Bolt Stainless Steel 25 Stator
2 Stretching washer Stainless Steel 26 Screw Stainless Steel
3 Washer Stainless Steel 27 Stretching washer Stainless Steel
4 Handle Stainless Steel 28 Thermal Protector
5 Screw Stainless Steel 29 Wave Washer 65Mn
6 Cable
30 Ball Bearing
7 Flange Stainless Steel 31 Rotor
8 Cable Protector CR 32 Ball Bearing
9 Capacitor Cover HT200 33 Rubber washer NBR
10 Screw Stainless Steel 34 Screw Stainless Steel
11 Cable Presser Stainless Steel 35 O-ring NBR
12 Protector NR 36 Connection Part HT200
13 O-ring NBR 37 Mechanical Seal Carbon/Ceramic
14 Capacitor
38 O-ring NBR
15 Rubber Washer NBR 39 Oil Chamber Cover HT200
16 Screw Steel 40 Washer Stainless Steel
17 Stretching washer 65Mn 41 Screw Stainless Steel
18 Washer Steel 42 Oil Seal
19 Press Plate Steel 43 Impeller PA66
20 Cable Holder NBR 44 Nut Stainless Steel
21 Screw CuZn40 45 Connector ABS
22 Stretching washer 65Mn 46 O-ring NBR
23 Washer CuZn40 47 Pump Body HT200
24 Nut Stainless Steel 48 Float Switch
