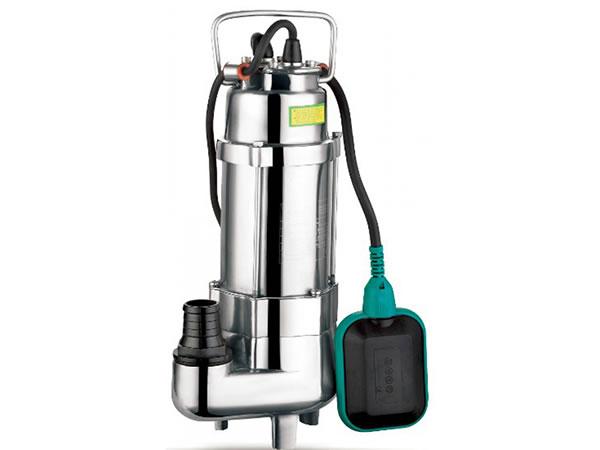

XSP-S 0.33Hp Stainless Steel Submersible Sewage Pump

 XSP-S 0.33Hp Stainless Steel Submersible Sewage Pump

Stainless Steel Submersible Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.

Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.

Stainless Steel Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

Technical Data of XSP-S 0.33Hp Stainless Steel Submersible Sewage Pump
Model Power Outlet diameter (mm) Voltage (V/Hz) Max. flow (l/min) Max. head (m) Max. dia. of particle (mm) GW (kgs) Packing size (mm) Quantity (PCS/20'TEU)
KW HP

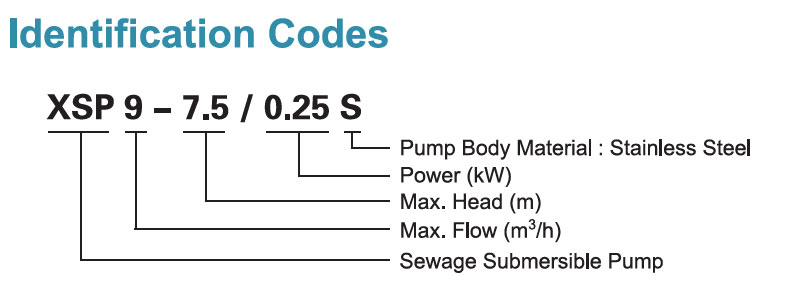

XSP9-7.5/0.25S 0.25 0.33 40,32,25 220/50 150 7.5 15 10.5 185x180x360 2110

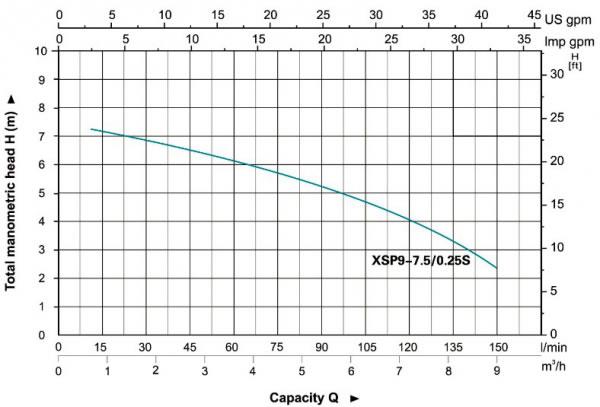

XSP-S 0.33Hp Stainless Steel Submersible Sewage Pump Hydraulic Performance Curves

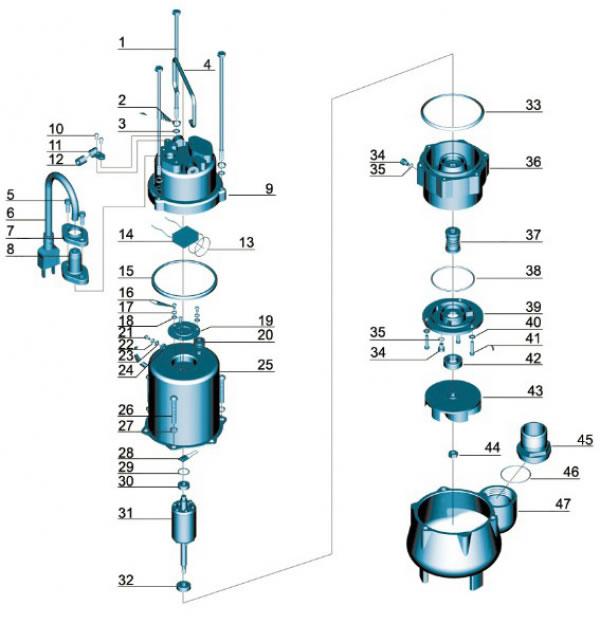

Material Table of XSP-S 0.33Hp Stainless Steel Submersible Sewage Pump
No. Part Material No. Part Material
1 Bolt Stainless Steel 25 Stator
2 Stretching washer Stainless Steel 26 Screw Stainless Steel
3 Washer Stainless Steel 27 Stretching washer Stainless Steel
4 Handle Stainless Steel 28 Thermal Protector
5 Screw Stainless Steel 29 Wave Washer 65Mn
6 Cable
30 Ball Bearing
7 Flange Stainless Steel 31 Rotor
8 Cable Protector CR 32 Ball Bearing
9 Capacitor Cover Stainless Steel 33 Rubber Washer FKM
10 Screw Stainless Steel 34 Screw Stainless Steel
11 Cable Presser Stainless Steel 35 O-ring FKM
12 Protector FKM 36 Connection Part Stainless Steel
13 O-ring NBR 37 Mechanical Seal Carbon/Ceramic
14 Capacitor
38 O-ring FKM
15 Rubber Washer FKM 39 Oil Chamber Cover Stainless Steel
16 Screw Steel 40 Washer Stainless Steel
17 Stretching washer 65Mn 41 Screw Stainless Steel
18 Washer Steel 42 Oil Seal
19 Press Plate Steel 43 Impeller Stainless Steel
20 Cable Holder NBR 44 Nut Stainless Steel
21 Screw CuZn40 45 Connector ABS
22 Stretching washer 65Mn 46 O-ring FKM
23 Washer CuZn40 47 Pump Body Stainless Steel
24 Nut Stainless Steel


LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, sewage pumps, centrifugal pumps, deep well pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
