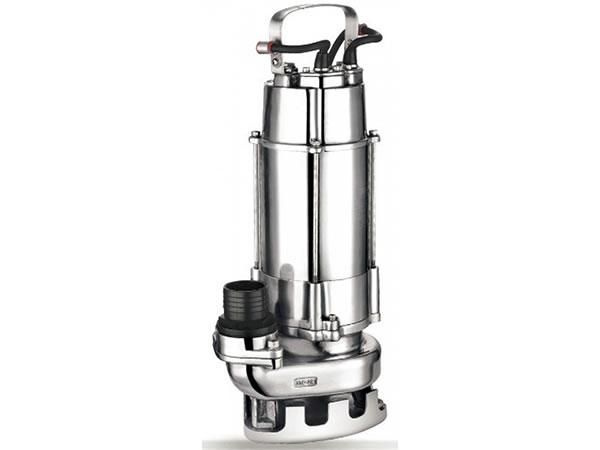

XSP-S 1Hp 2HP Stainless Steel Submersible Sewage Pump

 XSP-S 1Hp 2HP Stainless Steel Submersible Sewage Pump

Stainless Steel Submersible Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.

Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.

Stainless Steel Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

Technical Data of XSP-S 1Hp 2HP Stainless Steel Submersible Sewage Pump
Model Power Outlet diameter (mm) Voltage (V/Hz) Max. flow (l/min) Max. head (m) Max. dia. of particle (mm) GW (kgs) Packing size (mm) Quantity (PCS/20'TEU)
KW HP
XSP18-12/0.75S 0.75 1 50 220/50 300 12 25 22.2 540x265x195 1056
XSP16.2-22/1.5S 1.5 2 40 220/50 270 22 10 27.5 585x350x245 540

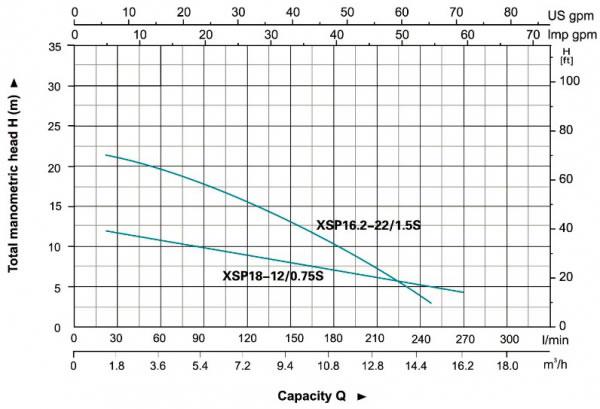

XSP-S 1Hp 2HP Stainless Steel Submersible Sewage Pump Hydraulic Performance Curves

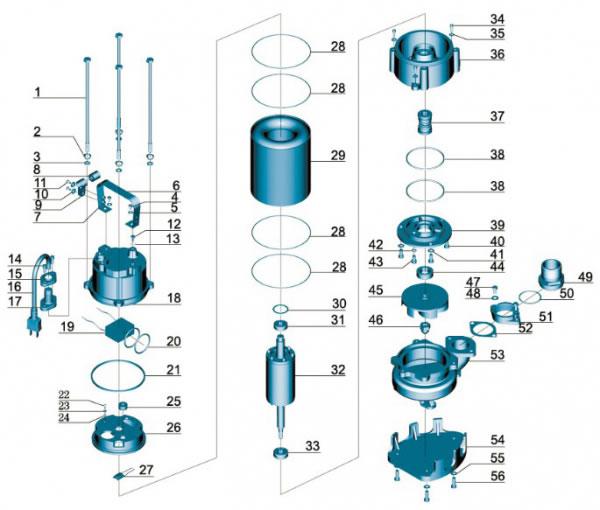

Material Table of XSP-S 1Hp 2HP Stainless Steel Submersible Sewage Pump
No. Part Material No. Part Material
1 Bolt Stainless Steel 29 Stator
2 Stretching washer Stainless Steel 30 Wave Washer 65Mn
3 Washer Stainless Steel 31 Ball Bearing
4 Bolt Stainless Steel 32 Rotor
5 Washer Stainless Steel 33 Ball Bearing
6 Handle Stainless Steel 34 Screw Stainless Steel
7 Nut Stainless Steel 35 Washer Stainless Steel
8 Protector FKM 36 Connection Part Stainless Steel
9 Cable Presser Stainless Steel 37 Mechanical Seal Carbon/Ceramic
10 Washer Stainless Steel 38 O-ring FKM
11 Screw Stainless Steel 39 Oil Chamber Cover Stainless Steel
12 Bolt Stainless Steel 40 Screw Stainless Steel
13 O-ring FKM 41 Washer Stainless Steel
14 Bolt Stainless Steel 42 O-ring FKM
15 Flange Stainless Steel 43 Screw Stainless Steel
16 Cable
44 Oil Seal
17 Cable Protector CR 45 Impeller Stainless Steel
18 Capacitor Cover Stainless Steel 46 Nut
19 Capacitor
47 Bolt Stainless Steel
20 O-ring NBR 48 Washer Stainless Steel
21 Rubber Washer FKM 49 Connector ABS
22 Screw CuZn40 50 O-ring FKM
23 Stretching washer 65Mn 51 Connection Nut Stainless Steel
24 Washer CuZn40 52 Rubber Washer FKM
25 Cable Holder NBR 53 Pump Body Stainless Steel
26 Motor Cover HT200 54 Base Plate Stainless Steel
27 Thermal Protector
55 Wahser Stainless Steel
28 O-ring FKM 56 Screw Stainless Steel

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, wastewater pumps, centrifugal water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
