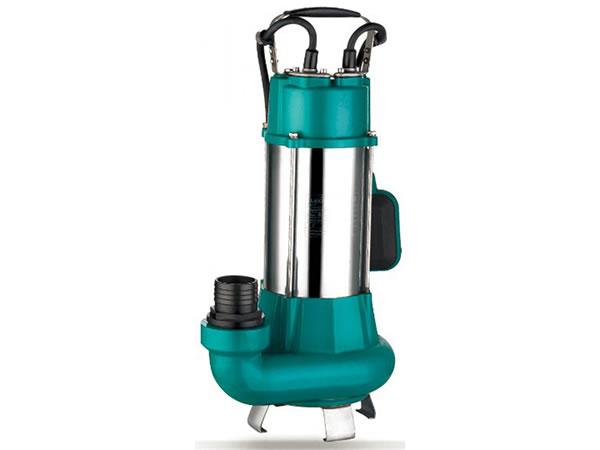

XSP 1.5HP Stainless Steel Submersible Sewage Pump

 XSP 1.5HP Stainless Steel Submersible Sewage Pump

Stainless Steel Submersible Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.

Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.

Stainless Steel Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

Technical Data of XSP 1.5HP Stainless Steel Submersible Sewage Pump
Model Power Outlet diameter (mm) Voltage (V/Hz) Max. flow (l/min) Max. head (m) Max. dia. of particle (mm) GW (kgs) Packing size (mm) Quantity (PCS/20'TEU)
KW HP
XSP20-9/1.1l 1.1 1.5 50 220/50 333 9 35 20.9 580x320x250 681

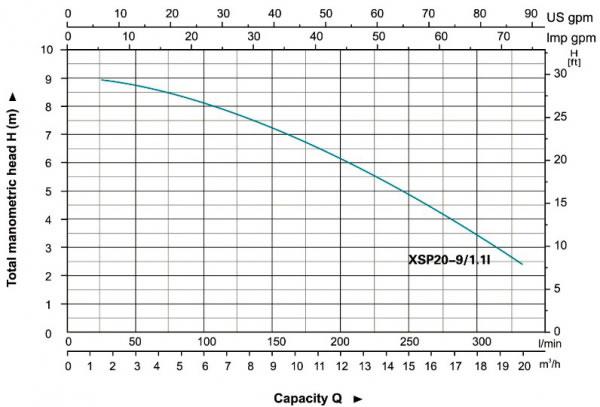

XSP 1.5HP Stainless Steel Submersible Sewage Pump Hydraulic Performance Curves

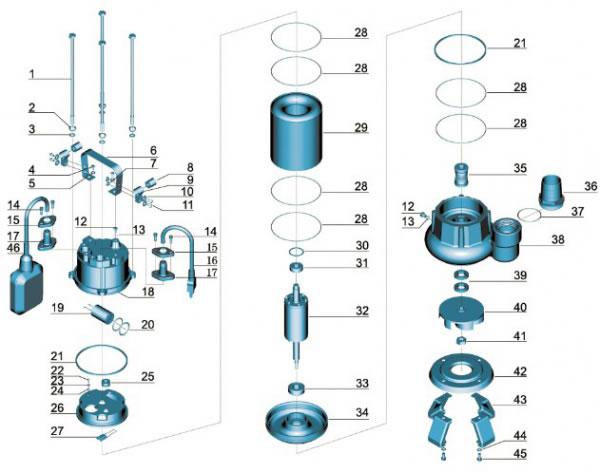

Material Table of XSP 1.5HP Stainless Steel Submersible Sewage Pump
No. Part Material No. Part Material
1 Bolt Stainless Steel 24 Washer CuZn40
2 Stretching washer Stainless Steel 25 Cable Holder NBR
3 Washer Stainless Steel 26 Upper Cover HT200
4 Bolt Stainless Steel 27 Thermal Protector
5 Washer Stainless Steel 28 O-ring NBR
6 Handle Stainless Steel 29 Stator
7 Nut Stainless Steel 30 Wave Washer 65Mn
8 Protector NR 31 Ball Bearing
9 Cable Presser Stainless Steel 32 Rotor
10 Washer Stainless Steel 33 Ball Bearing
11 Screw Stainless Steel 34 Lower Cover HT200
12 Bolt Stainless Steel 35 Mechanical Seal Carbon/Ceramic
13 O-ring NBR 36 Connector ABS
14 Screw Stainless Steel 37 O-ring NBR
15 Flange Stainless Steel 38 Pump Body HT200
16 Cable
39 Oil Seal
17 Cable Protector CR 40 Impeller HT200
18 Capacitor Cover HT200 41 Nut Stainless Steel
19 Capacitor
42 Pump Cover Stainless Steel
20 O-ring NBR 43 Base Plate Stainless Steel
21 Rubber Washer NBR 44 Washer Stainless Steel
22 Screw CuZn40 45 Bolt Stainless Steel
23 Stretching washer 65Mn 46 Float Switch

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, centrifugal pumps, deep well water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
