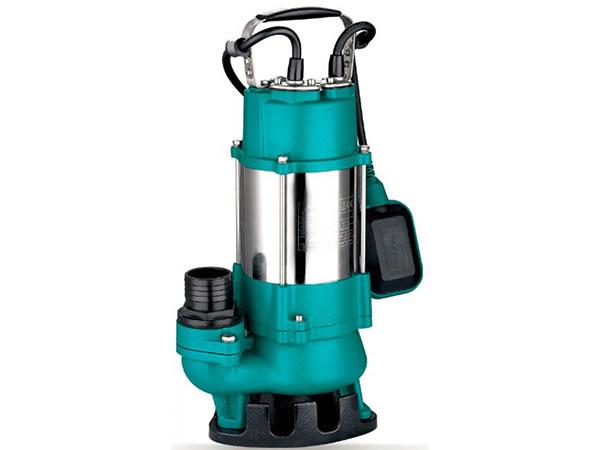

XSP 0.6HP 1HP Stainless Steel Submersible Sewage Pump

 XSP 0.6HP 1HP Stainless Steel Submersible Sewage Pump

Stainless Steel Submersible Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.

Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.

Stainless Steel Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

Technical Data of XSP 0.6HP 1HP Stainless Steel Submersible Sewage Pump

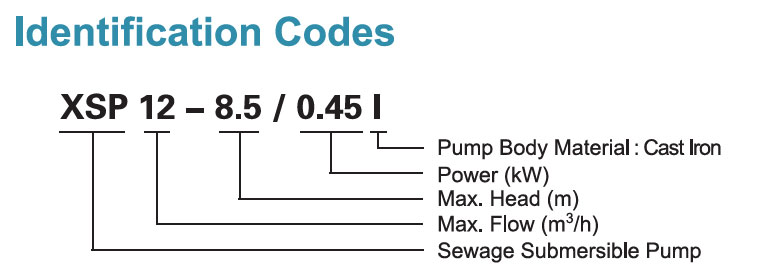

Model Power Outlet diameter (mm) Voltage (V/Hz) Max. flow (l/min) Max. head (m) Max. dia. of particle (mm) GW (kgs) Packing size (mm) Quantity (PCS/20'TEU)
KW HP
XSP12-8.5/0.45l 0.45 0.6 50 220/50 200 8.5 25 18.2 495x263x222 1010
XSP18-12/0.75l 0.75 1 50 220/50 300 12 25 20.2 540x265x195 1056

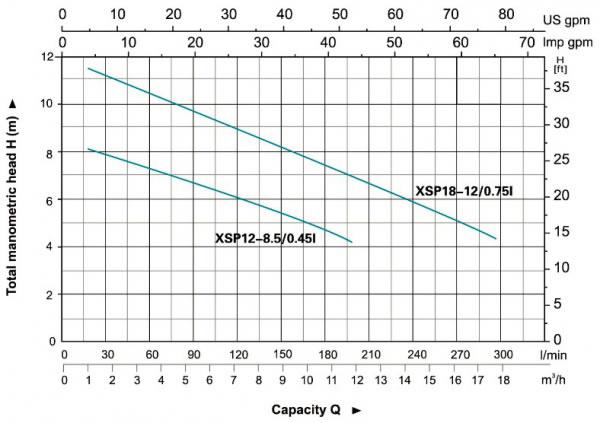

XSP 0.6HP 1HP Stainless Steel Submersible Sewage Pump Hydraulic Performance Curves

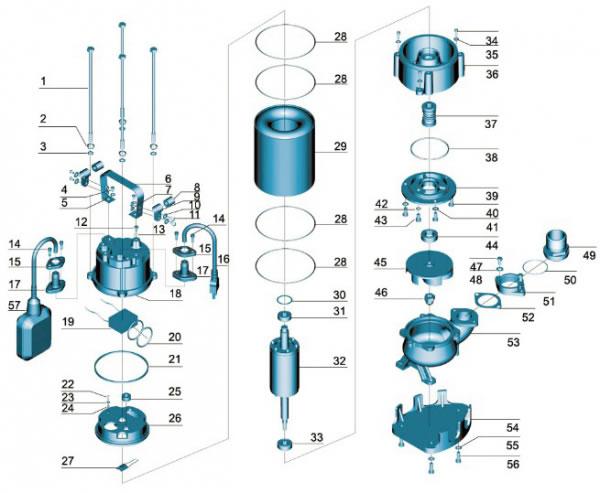

Material Table of XSP 0.6HP 1HP Stainless Steel Submersible Sewage Pump
No. Part Material No. Part Material
1 Bolt Stainless Steel 30 Wave Washer 65Mn
2 Stretching washer Stainless Steel 31 Ball Bearing
3 Washer Stainless Steel 32 Rotor
4 Bolt Stainless Steel 33 Ball Bearing
5 Washer Stainless Steel 34 Screw Stainless Steel
6 Handle Stainless Steel 35 Washer Stainless Steel
7 Nut Stainless Steel 36 Connection Part HT200
8 Protector NR 37 Mechanical Seal Carbon/Ceramic
9 Cable Presser Stainless Steel 38 O-ring NBR
10 Washer Stainless Steel 39 Oil Chamber Cover HT200
11 Screw Stainless Steel 40 Screw Stainless Steel
12 Bolt Stainless Steel 41 Washer Stainless Steel
13 O-ring NBR 42 O-ring NBR
14 Screw Stainless Steel 43 Screw Stainless Steel
15 Flange Stainless Steel 44 Oil Seal
16 Cable
45 Impeller HT200
17 Cable Protector CR 46 Nut Stainless Steel
18 Capacitor Cover HT200 47 Bolt Stainless Steel
19 Capacitor
48 Washer Stainless Steel
20 O-ring NBR 49 Connector ABS
21 Rubber Washer NBR 50 O-ring NBR
22 Screw CuZn40 51 Connector Nut HT200
23 Stretching washer 65Mn 52 Rubber Washer NBR
24 Washer CuZn40 53 Pump Body HT200
25 Cable Holder NBR 54 Base Plate HT200
26 Motor Cover HT200 55 Washer Stainless Steel
27 Thermal Protector
56 Screw Stainless Steel
28 O-ring NBR 57 Float Switch
29 Stator
