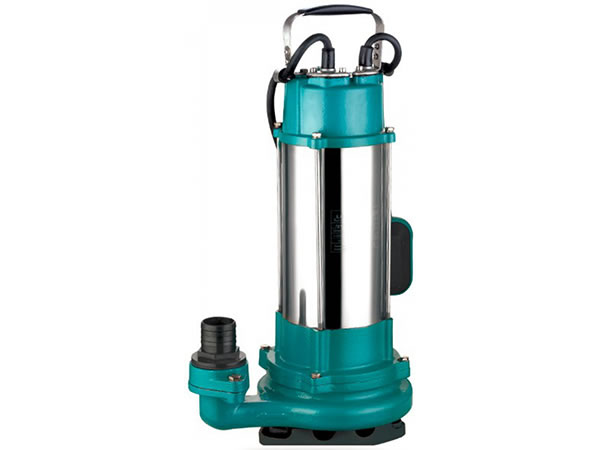

XSP 2HP 3HP Stainless Steel Submersible Sewage Pump
Stainless Steel Submersible Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.
Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.
Stainless Steel Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

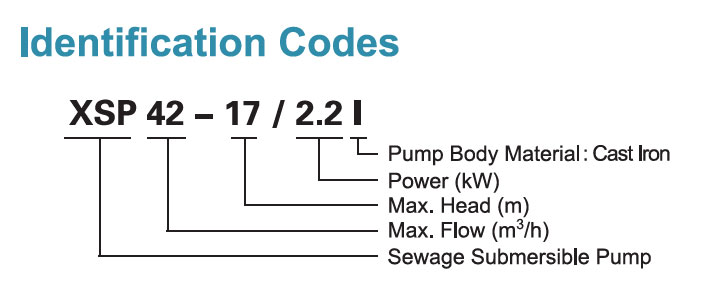

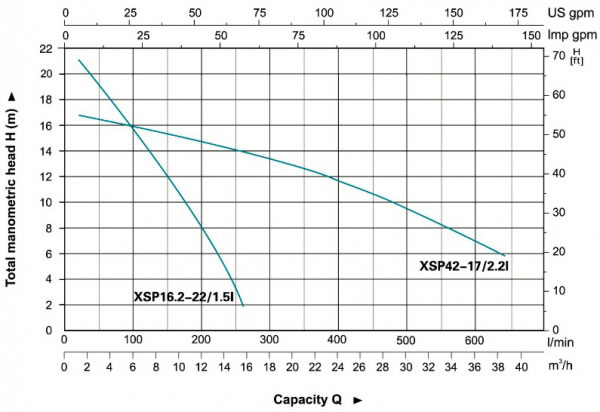

| Model | Power | Outlet diameter (mm) | Voltage (V/Hz) | Max. flow (l/min) | Max. head (m) | Max. dia. of particle (mm) | GW (kgs) | Packing size (mm) | Quantity (PCS/20'TEU) | ||
| KW | HP | ||||||||||
| XSP16.2-22/1.5l | 1.5 | 2 | 40 | 220/50 | 270 | 22 | 10 | 27.6 | 585x350x245 | 540 | |
| XSP42-17/2.2l | 2.2 | 3 | 75 | 220/50 | 700 | 17 | 20 | 29.7 | 585x350x245 | 540 | |

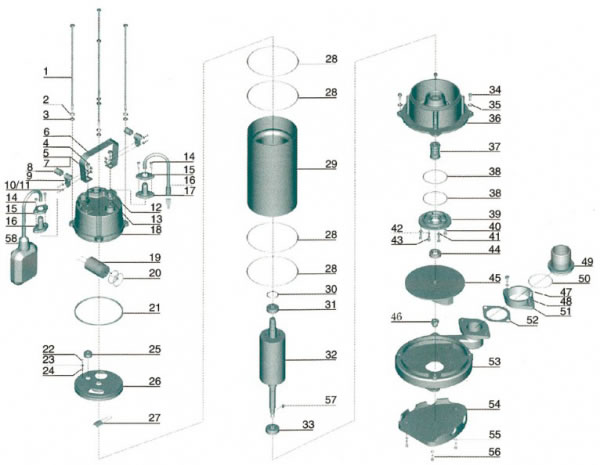

| No. | Part | Material | No. | Part | Material |
| 1 | Bolt | Stainless Steel | 30 | Undulated Washer | 65Mn |
| 2 | Stretching washer | Stainless Steel | 31 | Ball Bearing | |
| 3 | Washer | Stainless Steel | 32 | Rotor | |
| 4 | Bolt | Stainless Steel | 33 | Ball Bearing | |
| 5 | Washer | Stainless Steel | 34 | Screw | Stainless Steel |
| 6 | Handle | Stainless Steel | 35 | Washer | Stainless Steel |
| 7 | Nut | Stainless Steel | 36 | Connection Part | HT200 |
| 8 | Protector | NR | 37 | Mechanical Seal | Carbon/Ceramic |
| 9 | Cable Presser | Stainless Steel | 38 | O-ring | NBR |
| 10 | Washer | Stainless Steel | 39 | Oil Chamber Cover | HT200 |
| 11 | Screw | Stainless Steel | 40 | Screw | Stainless Steel |
| 12 | Bolt | Stainless Steel | 41 | Washer | Stainless Steel |
| 13 | O-ring | NBR | 42 | O-ring | NBR |
| 14 | Screw | Stainless Steel | 43 | Screw | Stainless Steel |
| 15 | Flange | Stainless Steel | 44 | Oil Seal | |
| 16 | Cable | 45 | Impeller | HT200 | |
| 17 | Cable Protector | CR | 46 | Nut | Stainless Steel |
| 18 | Capacitor Cover | HT200 | 47 | Bolt | Stainless Steel |
| 19 | Capacitor | 48 | Washer | Stainless Steel | |
| 20 | O-ring | NBR | 49 | Out-let Connector | ABS |
| 21 | Rubber Washer | NBR | 50 | O-ring | NBR |
| 22 | Screw | CuZn40 | 51 | Connector Nut | HT200 |
| 23 | Stretching washer | 65Mn | 52 | Rubber Washer | NBR |
| 24 | Washer | CuZn40 | 53 | Pump Body | HT200 |
| 25 | Line Protector | NBR | 54 | Base Plate | HT200 |
| 26 | Motor Cover | HT200 | 55 | Washer | Stainless Steel |
| 27 | Thermal Protector | 56 | Screw | Stainless Steel | |
| 28 | O-ring | NBR | 57 | Key | |
| 29 | Motor Stator | Stainless Steel | 58 | Float Switch |
LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, submersible water pumps, centrifugal pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
