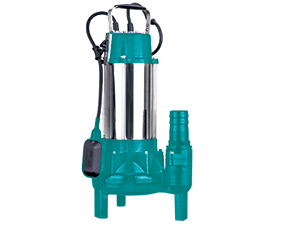

XSP 2HP Stainless Steel Submersible Sewage Pump
Application of XSP-2HP Stainless Steel Submersible Sewage Pump
- Wastewater drainage in factories, construction sites and commercial facilities
- Drainage system in municipal sewage treatment plants
- Drainage station in residential quarters
- Municipal projects
- Methane pools and field irrigation in countryside
Pump
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid PH value: 4-10
- Liquid kinematic viscosity: 7x107~23x104 m³/s
- Max. liquid density: 1.2x10³kg/m³.
Motor
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft
- Insulation class: B.
- Protection class: IP68.

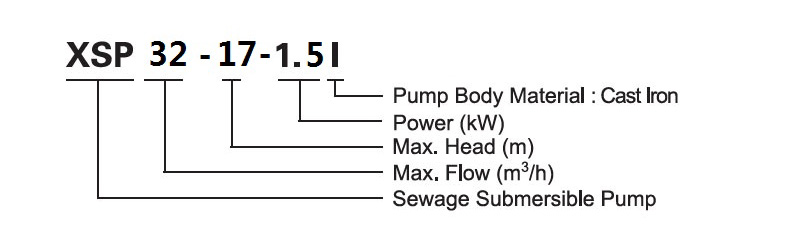

| Model | Power | Outlet diameter (mm) | Voltage (V/Hz) | Max. flow (l/min) | Max. head (m) | Max. dia. of particle (mm) | GW (kg) | Packing size (mm) | ||
| kW | HP | |||||||||
| XSP32-17/1.5I | 1.5 | 2 | 50 | 220/50 | 530 | 17 | 25 | 29 | 610x315x255 | |

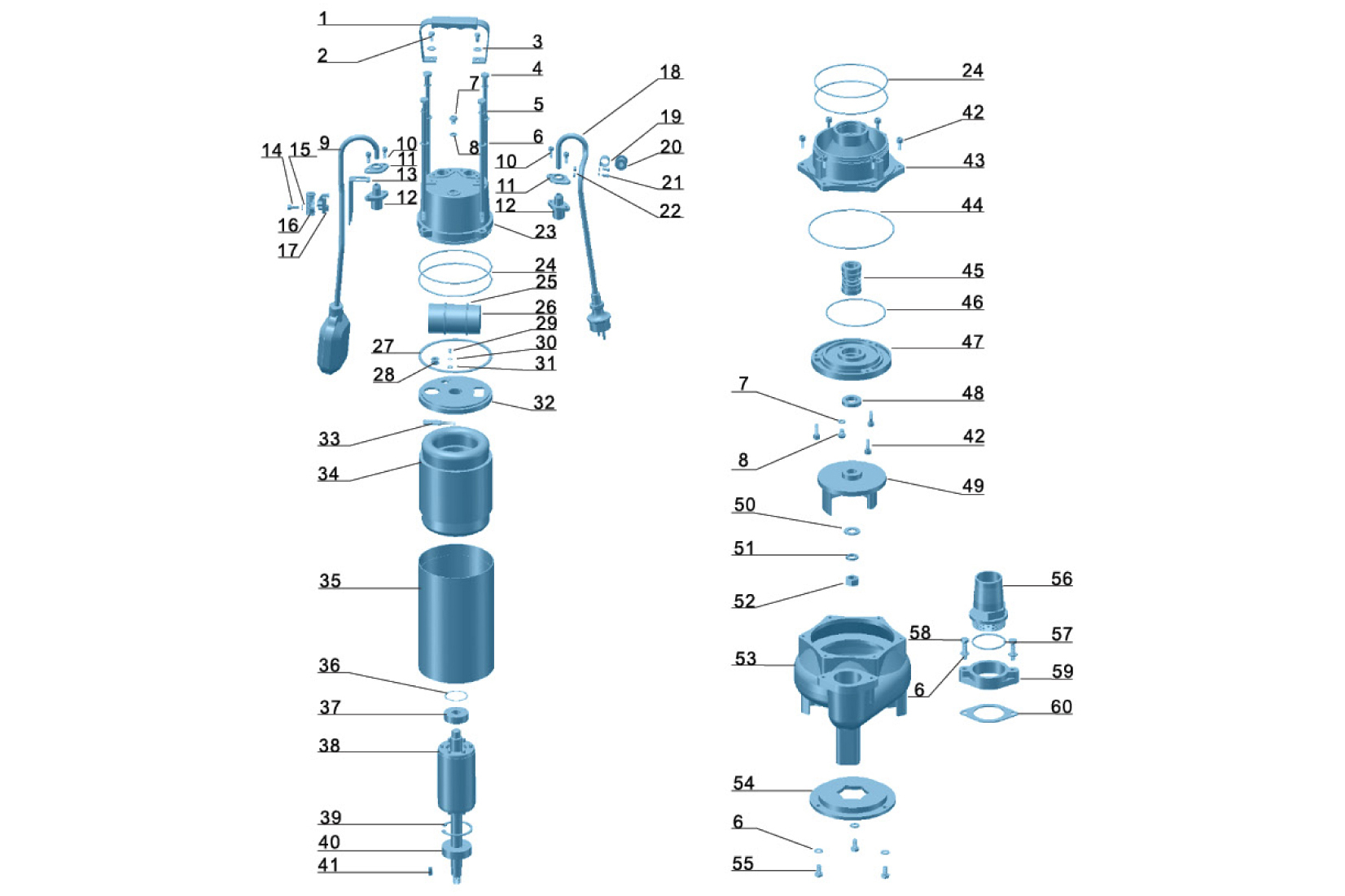

| No. | Part | Material | |||
| 1 | Handle | Stainless steel | 31 | Washer | Stainless steel |
| 2 | Bolt | Stainless steel | 32 | Motor cover | HT200 |
| 3 | Washer | Stainless steel | 33 | Motor protector | |
| 4 | Bolt | Stainless steel | 34 | Motor | |
| 5 | Spring washer | Stainless steel | 35 | Motor casing | Stainless steel |
| 6 | Washer | 2Cr13(Standard) AISI304/AISI316 ASTM1045 | 36 | Undulated washer | |
| 7 | Screw | Stainless steel | 37 | Upper bearing | |
| 8 | O-ring | NBR | 38 | Rotor | |
| 9 | Float switch | 39 | Circlip | ||
| 10 | Screw | Stainless steel | 40 | Lower bearing | |
| 11 | Flange | 2Cr13(Standard) AISI304/AISI316 ASTM1045 | 41 | Key | Stainless steel |
| 12 | Cable protector | CR | 42 | Screw | Stainless steel |
| 13 | Guide support | Stainless steel | 43 | Connection part | HT200 |
| 14 | Screw | Stainless steel | 44 | O-ring | NBR |
| 15 | Washer | Stainless steel | 45 | Mechanical seal | Graphite/Ceramic |
| 16 | Clamp | PA66+GF | 46 | O-ring | NBR |
| 17 | Adjustable bracket | PA66+GF | 47 | Oil chamber cover | HT200 |
| 18 | Cable | 48 | Oil seal | ||
| 19 | Cable presser | Stainless steel | 49 | Impeller | Cast Iron |
| 20 | Protector | NR | 50 | Washer | Stainless steel |
| 21 | Screw | Stainless steel | 51 | Spring washer | Stainless steel |
| 22 | Nut | Stainless steel | 52 | Nut | Stainless steel |
| 23 | Capacitor cover | HT200 | 53 | Pump body | HT200 |
| 24 | O-ring | NBR | 54 | Pump cover | Cast Iron |
| 25 | O-ring | NBR | 55 | Bolt | Stainless steel |
| 26 | Capacitor | 56 | Discharge | ABS | |
| 27 | Gasket | NBR | 57 | O-ring | NBR |
| 28 | Line protector | NBR | 58 | Bolt | Stainless steel |
| 29 | Screw | CuZn40 | 59 | Connection nut | HT200 |
| 30 | Serrated lock washer | Stainless steel | 60 | Gasket | NBR |

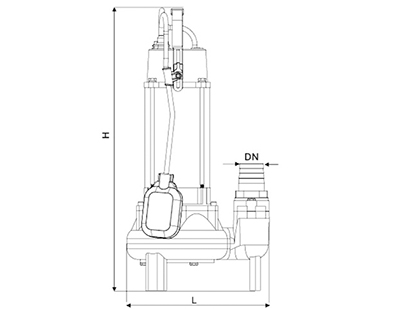

| Model | Model | DN | L (mm) | H (mm) |
| XSP32-17/1.5I | 2 | 288 | 571 |
