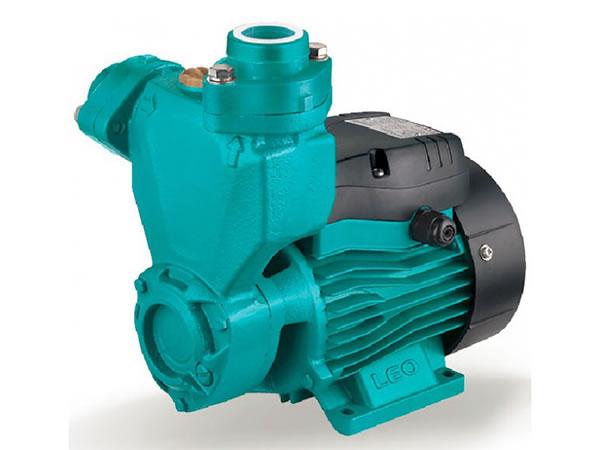

APSm Self-Priming Peripheral Pump
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
APSm Self-Priming Peripheral Pump Features
- LEO's APSm Self-Priming Peripheral Pump's cast iron pump body and support all underwent a special anti-rust treatment.
- Anti-block system is introduced for APSm Self-Priming Peripheral Pump's impeller;
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +40℃
- Max. suction: +9m
- self-priming
APSm Self-Priming Peripheral Pump Motor Features
- Copper winding
- Built-in thermal protector for single phase motor
- F grade insulation is well met for our self-priming pumps.
- Protection class: IPX4
- Max. ambient temperature: +40℃

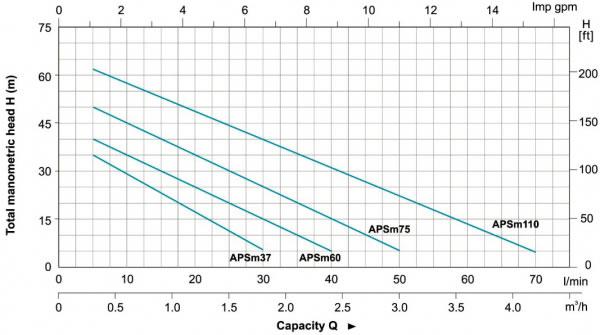

| MODEL | POWER | Q（m3/h） | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.3 | 3.6 | 4.2 | ||
| Single Phase | Three Phase | (KW) | (HP) | Q(L/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 55 | 60 | 70 |
| / | 0.37 | 0.5 | H(m) | 40 | 35 | 28 | 22 | 18 | 12 | 5 | / | / | / | / | / | / | |
| / | 0.6 | 0.8 | 45 | 40 | 32 | 28 | 22 | 18 | 12 | 8 | 5 | / | / | / | / | ||
| / | 0.75 | 1 | 55 | 50 | 42 | 38 | 32 | 28 | 22 | 18 | 12 | 5 | / | / | / | ||
| 1.1 | 1.5 | 65 | 60 | 55 | 50 | 45 | 40 | 35 | 30 | 25 | 20 | 15 | 10 | 5 | |||

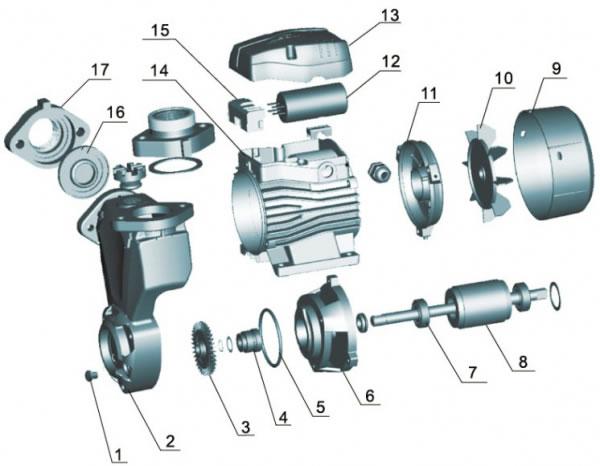

| No. | Part | Material |
| 1 | Screw | steel |
| 2 | Pump Body | HT200 |
| 3 | Impeller | Brass |
| 4 | Mechanical seal | carbon/ceramic |
| 5 | O-ring | NBR |
| 6 | Support | HT200 |
| 7 | Bearing | |
| 8 | Rotor | |
| 9 | Fan cover | PP |
| 10 | Fan | PP |
| 11 | Rear cover | ZL102 |
| 12 | Capacitor | |
| 13 | Terminal box | ABS |
| 14 | Stator | |
| 15 | Terminal board | PC |
| 16 | Non-return Valve | NBR |
| 17 | Connector | HT200 |
