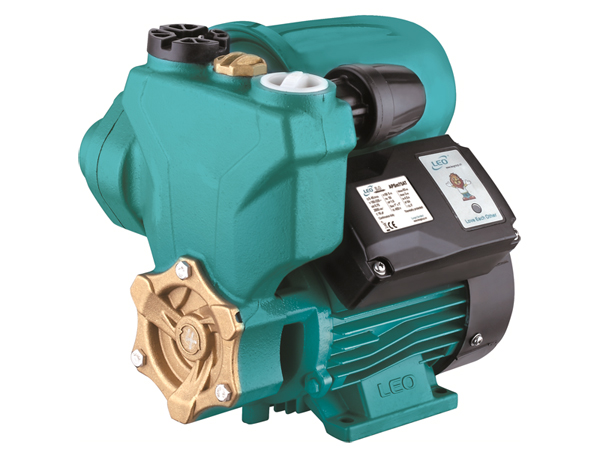

APSm-AT Automatic Self-Priming Peripheral Pump
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
APSm-AT Automatic Self-Priming Peripheral Pump Features
- 2-second delayed start after plug into the stocket to avoid potential danger
- caused by electric sparks
- Non-water protection
- Automatical detection if there is coming water from pump inlet.
- Anti-blocking protection
- Operating status display (Powering up/Running/No water)
APSm-AT Automatic Self-Priming Peripheral Pump Motor Features
- C&U bearing
- Copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

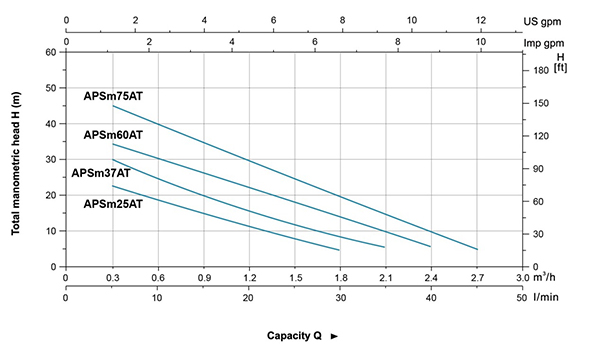

| Model | Power | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | |
| kW | HP | Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
| APSm-25AT |
0.25 | 0.3 | H (m) |
25 | 22 | 20 | 15 | 10 | 8 | 5 | - | - | - | - |
| APSm-37AT |
0.37 | 0.5 | 35 | 30 | 25 | 20 | 15 | 12 | 8 | 5 | - | - | - | |
| APSm-60AT |
0.6 | 0.8 | 40 | 35 | 30 | 25 | 22 | 18 | 15 | 10 | 5 | - | - | |
| APSm-75AT |
0.75 | 1.0 | 50 | 45 | 40 | 35 | 30 | 25 | 18 | 15 | 10 | 5 | - | |

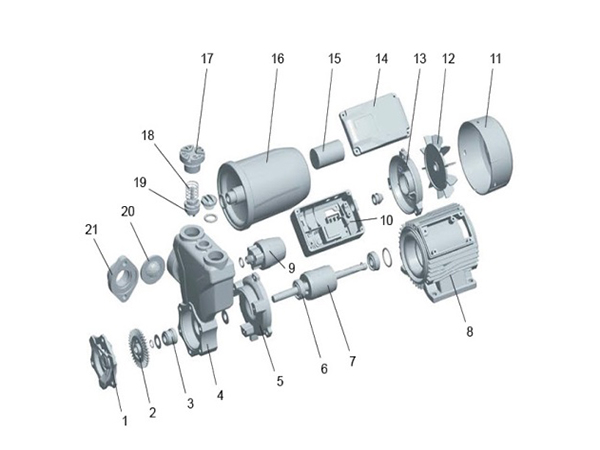

| No | Part | Material |
| 1 | Pump cover | Brass |
| 2 | Impeller | Brass |
| 3 | Mechanical seal | Carbon/Cermaic |
| 4 | Pump body | HT200 |
| 5 | Front Plate | HT200 |
| 6 | Bearing | |
| 7 | Rotor | |
| 8 | Stator | |
| 9 | Pressure sensor | |
| 10 | Cover box | ABS |
| 11 | Fan cover | PP-GF10 |
| 12 | Fan | PP-GF15 |
| 13 | End plate | ZL 102 |
| 14 | Terminal cover | ABS |
| 15 | Capacitor | |
| 16 | Pressure tank | Iron |
| 17 | Pump head | PA66 |
| 18 | Check-valve spring | AISI 304 |
| 19 | Check valve | PPO |
| 20 | Sealing ring | Rubber |
| 21 | Inlet connection | HT200 |
