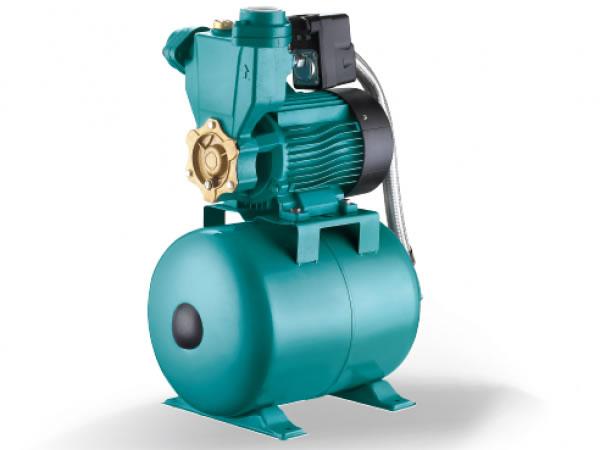

LKSm1100A Self Priming Peripheral Pump
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
LKSm1100A Self Priming Peripheral Pump
- With automatic 24 L pressure tank
- Special anti-rust treatment
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +40℃
- Max. suction: +9 m
LKSm1100A Self-Priming Pump Motor Features
- C&U bearing
- Copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃
| MODEL | POWER | Q（m3/h） | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 3.9 | 4.2 | |
| (KW) | (HP) | Q(L/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 65 | 65 | 70 | |
| 1.1 | 1.5 | H(m) | 60 | 56 | 52 | 48 | 44 | 40 | 36 | 32 | 28 | 24 | 20 | 16 | 12 | 8 | 4 | |

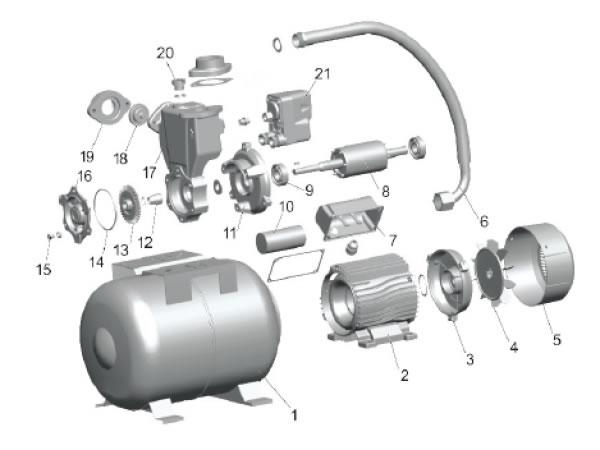

| No. | Part | Material |
| 1 | Air tank | Iron |
| 2 | Stator | |
| 3 | Rear cover | ZL102 |
| 4 | Fan | PP |
| 5 | Fan cover | PP |
| 6 | Flexible hose | |
| 7 | Terminal box | ABS |
| 8 | Rotor | |
| 9 | Bearing | |
| 10 | Capacitor | |
| 11 | Front Plate | HT200 |
| 12 | Mechanical seal | carbon/ceramic |
| 13 | Impeller | Brass |
| 14 | O-ring | NBR |
| 15 | Screw | Steel |
| 16 | Pump Bonnet | Brass |
| 17 | Pump Body | HT200 |
| 18 | Check Valve | PPO |
| 19 | Outlet Connector | HT200 |
| 20 | Filling plug | Brass |
| 21 | Pressure Switch |
