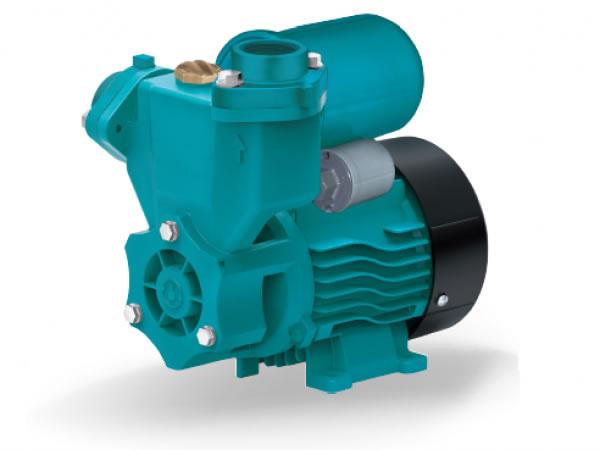

LKSm-A Self Priming Peripheral Pump
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
LKSm-A Self Priming Peripheral Pump Features:
- With automatic 2L pressure tank
- Special anti-rust treatment
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +40℃
- Max. suction: +9 m
LKSm-A Self Priming Peripheral Pump Motor Features
- C&U bearing
- Copper winding
- Built-in thermal protector
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

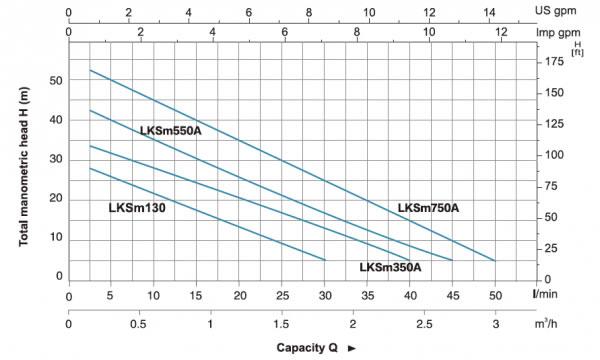

| MODEL | POWER | Q（m3/h） | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | ||
| (KW) | (HP) | Q(L/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | ||
| LKSm130 | 0.125 | 0.17 | H(m) | 30 | 25 | 20.5 | 16 | 12 | 8 | 4 | / | / | / | / | |
| LKSm350A | 0.35 | 0.47 | 35 | 32 | 28 | 24 | 20 | 16 | 12 | 8 | 4 | / | / | ||
| LKSm550A | 0.55 | 0.75 | 45 | 40 | 35 | 30 | 25 | 20.5 | 16 | 12 | 8 | 4 | / | ||
| LKSm750A | 0.75 | 1 | 55 | 50 | 45 | 40 | 35 | 30 | 25 | 20 | 15 | 10 | 5 | ||

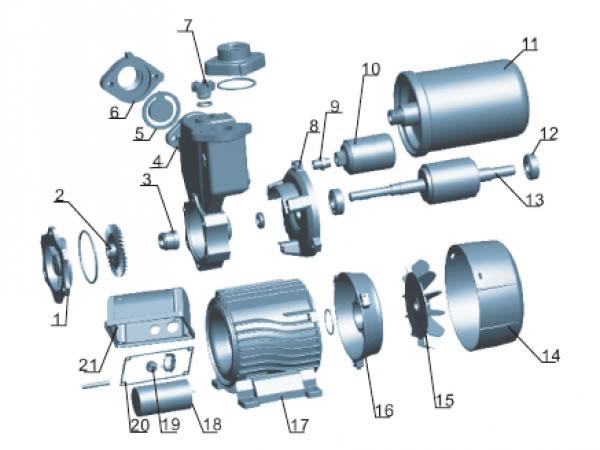

| No. | Part | Material |
| 1 | pump bonnet | Brass/ cast iron |
| 2 | Impeller | Brass |
| 3 | Mechanical seal | carbon/ceramic |
| 4 | Pump Body | HT200 |
| 5 | Check Valve | NBR |
| 6 | Outlet Connector | HT200 |
| 7 | Filling plug | Brass |
| 8 | Front Plate | HT200 |
| 9 | Bend | Iron |
| 10 | Pressure Switch | |
| 11 | Pressure Tank | Iron |
| 12 | Bearing | |
| 13 | Rotor | |
| 14 | Fan cover | PP |
| 15 | Fan | PP |
| 16 | Rear cover | ZL102 |
| 17 | Stator | |
| 18 | Capacitor | |
| 19 | Cable holder | NBR |
| 20 | Sealing ring | NBR |
| 21 | Terminal box | ABS |
LEO is a listed company in China (stock code 002131), LEO is a leading self-priming pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering peripheral water pumps, centrifugal pumps, submersible pumps, deep well pumps with custom solutions. LEO self-priming water pumps can meet you any requires in domestic pumping systems.
