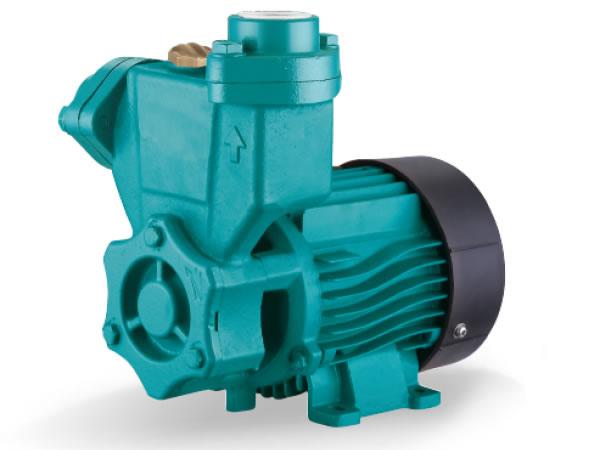

LKSm Self Priming Peripheral Pump

LKSm Self Priming Peripheral Pump

Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

LKSm Self Priming Peripheral Pump Features
- Special anti-rust treated pump body and support
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +40℃
- Max. suction: +8 m

LKSm Self Priming Peripheral Pump Motor Features
- C&U bearing
- Copper winding
- Built-in thermal protector
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40℃

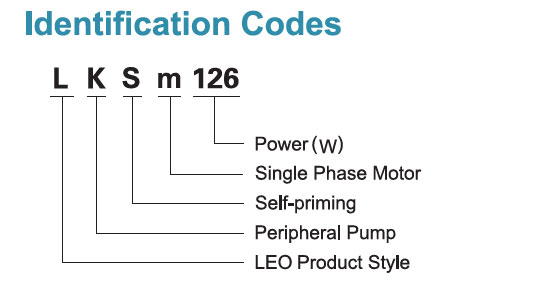

Identification Codes
Technical Data of LKSm Self Priming Peripheral Pump
MODEL POWER Q（m3/h） 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7
(KW) (HP) Q(L/min) 0 5 10 15 20 25 30 35 40 45
LKSm126 0.125 0.17 H(m) 30 25 20.5 16 12 8 4 / / /
LKSm350 0.35 0.47 35 32 28 24 20 16 12 8 4 /
LKSm550 0.55 0.75 45 40 35 30 25 20.5 16 12 8 4

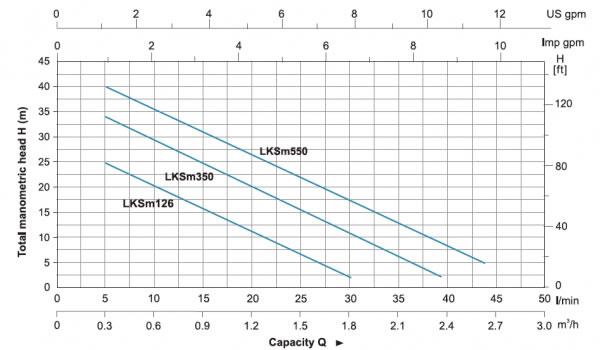

LKSm Self Priming Peripheral Pump Hydraulic Performance Curve

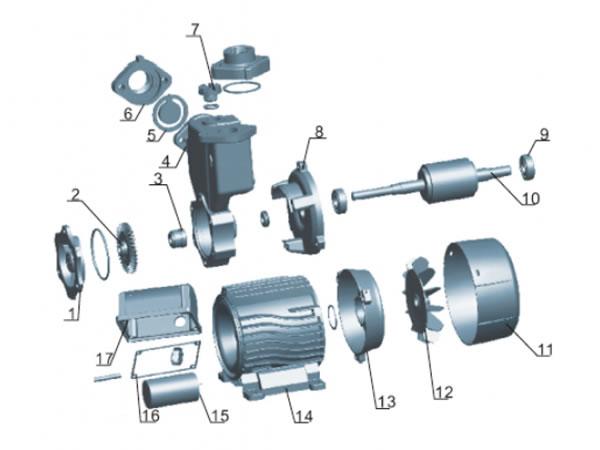

Material Table of LKSm Self Priming Peripheral Pump
No. Part Material
1 pump bonnet Brass/ cast iron
2 Impeller Brass
3 Mechanical seal carbon/ceramic
4 Pump Body HT200
5 check valve NBR
6 outlet connector HT200
7 Filling plug Brass
8 front plate HT200
9 Bearing
10 Rotor
11 Fan cover PP
12 Fan PP
13 Rear cover ZL102
14 Stator
15 Capacitor
16 Sealing ring NBR
17 Terminal box ABS

LEO is a listed company in China (stock code 002131), LEO is a leading self-priming water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering peripheral water pumps, centrifugal water pumps, deep well pumps with custom solutions. LEO self-priming pumps can meet you any requires in domestic pumping systems.
