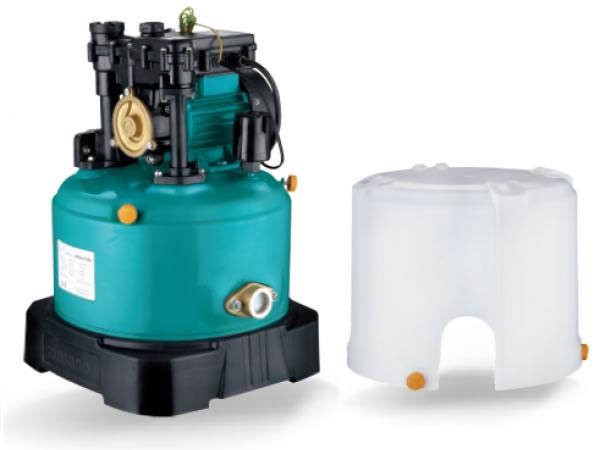

AKSm155AE Automatic Self-Priming Peripheral Pump

AKSm155AE Automatic Self-Priming Peripheral Pump (Water Pump, Centrifugal Pump)

Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

AKSm155AE Automatic Self-Priming Peripheral Pump Features
- Self-priming Peripheral Pump
- Brass impeller
- Brass pump bonnet
- AISI 304 shaft
- 3 second delay of pump start after plugging into the socket to avoid potential danger caused by electric sparks
- Automatic pressure sensor inside
- Automatic switching to small flow control system in condition of small water flow
- Automatic stop in 6 minutes in case of no water inside
- Max. liquid temperature: +40℃
- Max. suction: +8 m
- Liquid PH valve: 6.5- 8.5

AKSm155AE Automatic Self-Priming Peripheral Pump Motor Features
- IE 2 motor for energy saving
- C&U bearing
- Copper winding
- Built-in thermal protector
- Insulation class: F
- Low voltage operation with power design of 180V- 220V/50Hz

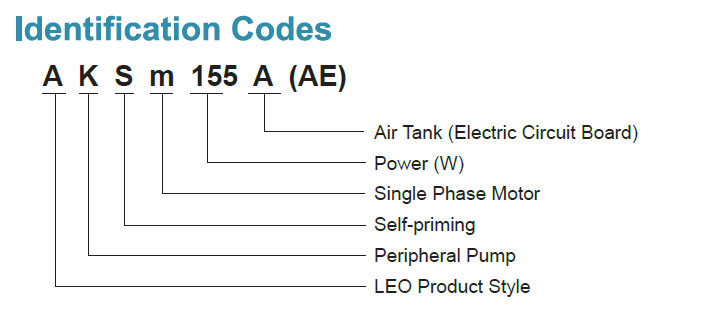

Identification Codes
Technical Data of AKSm155AE Automatic Self-Priming Peripheral Pump
MODEL POWER Q（m3/h） 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1
(KW) (HP) Q(L/min) 0 5 10 15 20 25 30 35
AKSm155A（AE) 1.1 1.5 H(m) 32 30 26 22 17 12 7 2

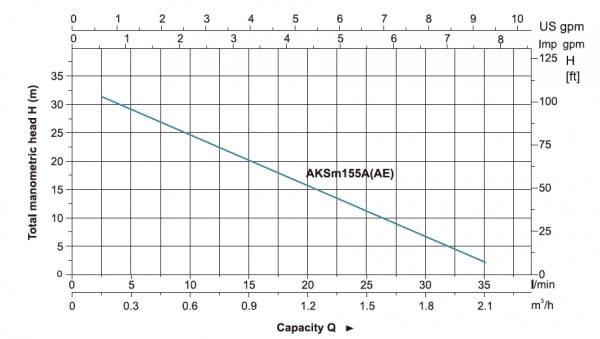

AKSm155AE Automatic Self-Priming Peripheral Pump Hydraulic Performance Curve

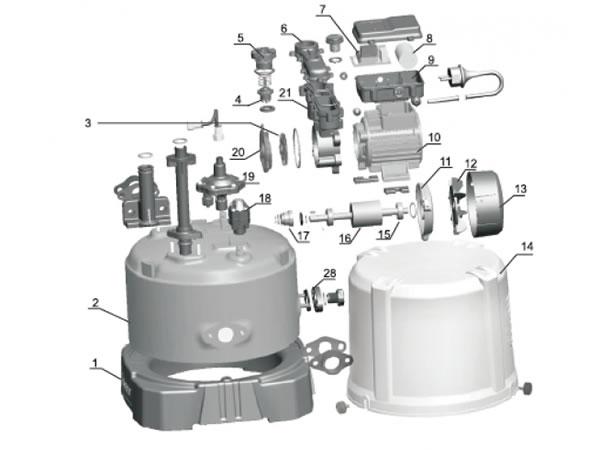

Material Table of AKSm155AE Automatic Self-Priming Peripheral Pump
No. Part Material
1 Base PP
2 Tank Steel(ST12)
3 Impeller Brass
4 Non-return valve NBR
5 Pump Head Cover PA66
6 Pump Head POM
7 Circuit board
8 Capacitor
9 Terminal box ABS
10 Stator
11 Rear cover ZL102
12 Fan PP
13 Fan cover PP
14 Housing PP
15 Bearing
16 Rotor
17 Mechanical seal carbon/ceramic
18 Pressure Switch
19 Air changer
20 Pump bonnet Brass
21 Pump Body POM

LEO is a listed company in China (stock code 002131), LEO is a leading self-priming pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering peripheral water pumps, centrifugal water pumps, submersible pumps, deep well pumps with custom solutions. LEO self-priming water pumps can meet you any requires in domestic pumping systems.
