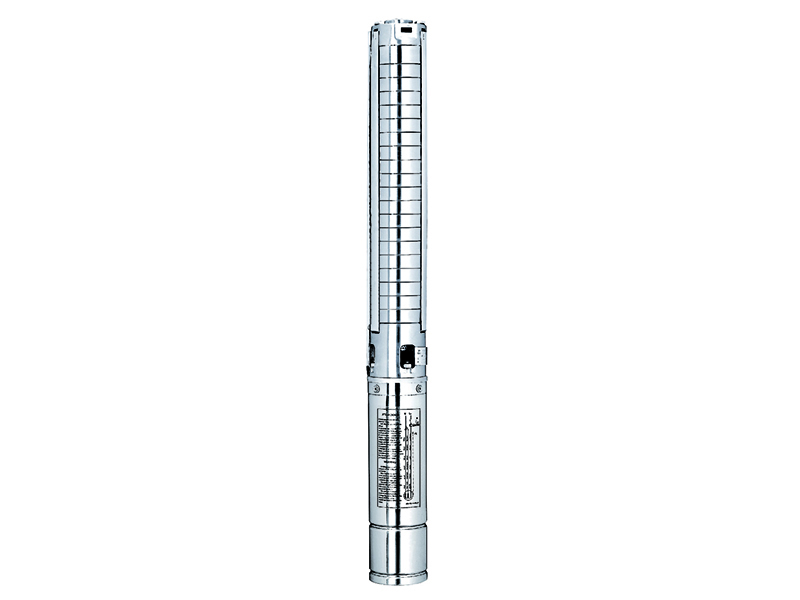

6XRS17 Stainless Steel Submersible Borehole Pump

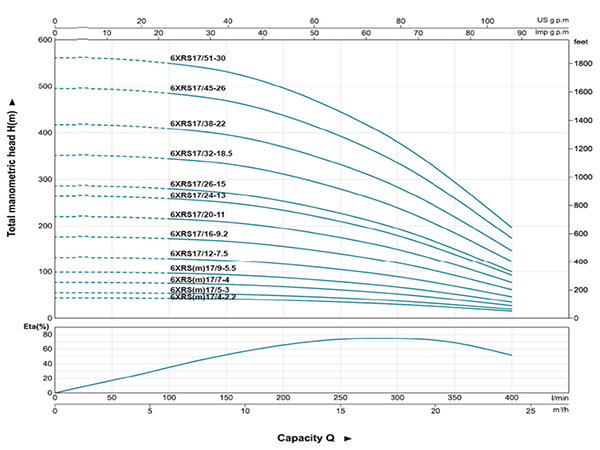

Hydraulic Performance Curves for 6XRS17 Stainless Steel Submersible Borehole Pump
Technical Data of 6XRS17 Stainless Steel Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 3 6 9 12 15 18 21 24
1~
220-240V 		3~
380-415V 		kW HP Q (l/min) 0 50 100 150 200 250 300 350 400
6XRSm17/4-2.2 6XRS17/4-2.2 2.2 3 H(m) 44 44 43 42 39 35 30 23 15
6XRSm17/5-3 6XRS17/5-3 3 4 55 55 54 52 49 44 37 29 19
6XRSm17/7-4 6XRS17/7-4 4 5.5 77 77 75 75 68 61 52 40 27
6XRSm17/9-5.5 6XRS17/9-5.5 5.5 7.5 99 99 97 97 88 79 67 52 35
- 6XRS17/12-7.5 7.5 10 132 132 129 129 117 105 90 69 46
- 6XRS17/16-9.2 9.2 12.5 176 175 172 172 156 140 120 92 61
- 6XRS17/20-11 11 15 220 219 215 215 195 175 149 115 77
- 6XRS17/24-13 13 17.5 264 263 258 258 233 209 179 138 92
- 6XRS17/26-15 15 20 286 285 280 280 253 227 194 150 100
- 6XRS17/32-18.5 18.5 25 352 351 344 344 311 279 239 184 123
- 6XRS17/38-22 22 30 418 417 409 409 370 332 284 219 146
- 6XRS17/45-26 26 35 495 493 484 484 438 393 336 259 173
- 6XRS17/51-30 30 40 561 559 549 549 496 445 381 294 196

EO is a listed company in China (stock code 002131), LEO is a leading split case stainless steel deep well pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, centrifugal pumps with custom solutions. LEO split case stainless steel pumps can meet you any requires in domestic pumping systems.
