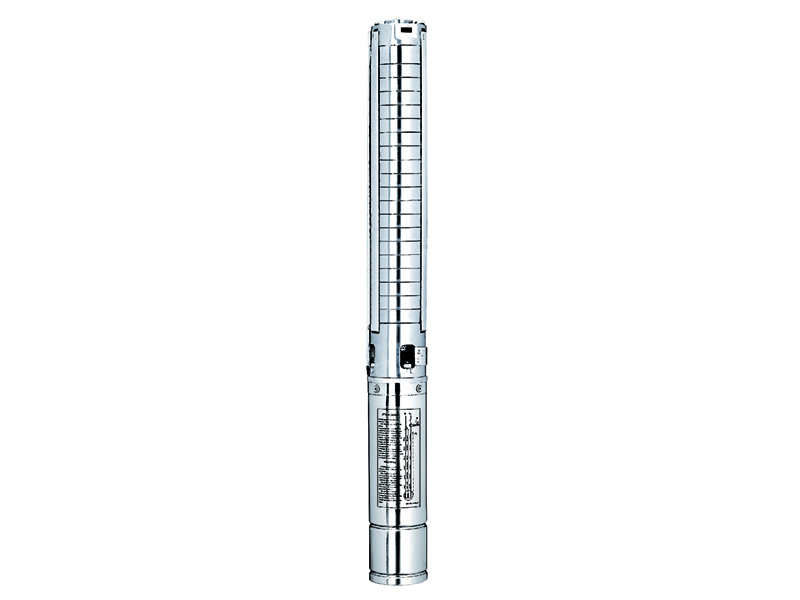

6XRS60 Stainless Steel Submersible Borehole Pump

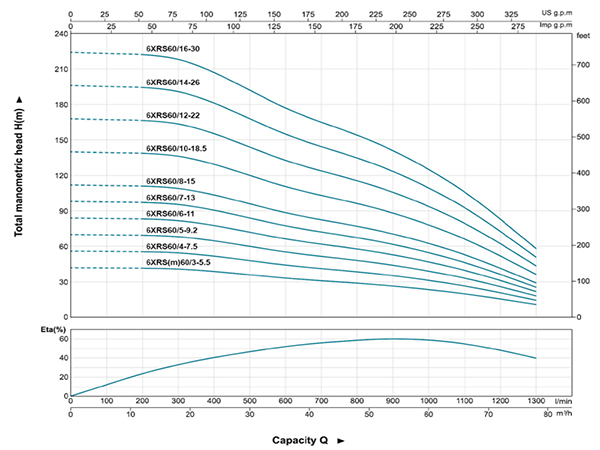

Hydraulic Performance Curves for 6XRS60 Stainless Steel Submersible Borehole Pump
Technical Data of 6XRS60 Stainless Steel Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 6 12 18 24 30 36 42 48 54 60 66 72 78
1~
220-240V 		3~
380-415V 		kW HP Q (l/min) 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300
6XRSm60/3-5.5 6XRS60/3-5.5 5.5 7.5 H(m) 42 42 42 41 39 22 20 18 16 14 11 7
- 6XRS60/4-7.5 7.5 10 56 56 55 55 52 32 30 27 24 21 16 11
- 6XRS60/5-9.2 9.2 12.5 70 70 69 68 65 54 50 46 41 35 27 18
- 6XRS60/6-11 11 15 84 84 83 82 70 65 60 55 49 41 32 22
- 6XRS60/7-13 13 17.5 98 98 97 95 81 76 70 64 57 48 38 25
- 6XRS60/8-15 15 20 112 112 111 109 93 86 80 73 65 55 43 29
- 6XRS60/10-18.5 18.5 25 140 139 139 136 116 108 100 91 81 69 54 36
- 6XRS60/12-22 22 30 168 167 167 164 139 130 120 109 97 83 65 43
- 6XRS60/14-26 26 35 196 195 194 191 162 151 140 127 113 97 76 50
- 6XRS60/16-30 30 40 224 223 222 218 186 173 160 146 130 110 86 58

EO is a listed company in China (stock code 002131), LEO is a leading split case stainless steel deep well pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, centrifugal pumps with custom solutions. LEO split case stainless steel pumps can meet you any requires in domestic pumping systems.
