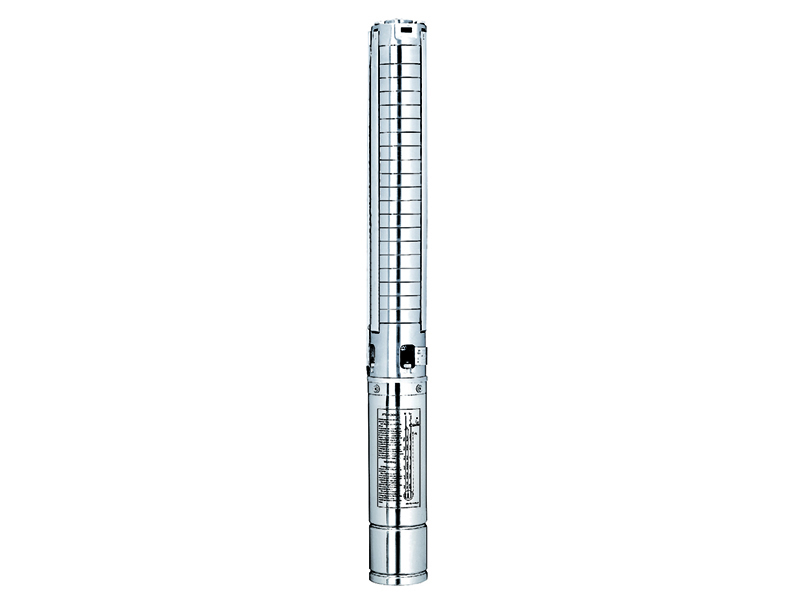

6XRP Stainless Steel Submersible Borehole Pump

Technical Data of 6XRP18 Stainless Steel Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 3 6 9 12 15 18 21 24 27
1~
220-240V 		3~
380-415V 		kW HP Q (l/min) 0 50 100 150 200 250 300 350 400 450
6XRPm18/5-3 6XRP18/5-3 3 4 H
(m) 		75 72 68 64 60 54 48 39 29 17
6XRPm18/6-4 6XRP18/6-4 4 5.5 89 86 82 77 72 65 57 47 34 21
6XRPm18/8-5.5 6XRP18/8-5.5 5.5 7.5 119 114 109 103 96 86 76 63 46 28
- 6XRP18/10-7.5 7.5 10 149 143 136 129 119 108 95 78 57 35
- 6XRP18/12-9.2 9.2 12.5 179 172 164 155 143 129 114 94 69 42
- 6XRP18/15-11 11 15 224 215 205 193 179 161 143 118 86 52
- 6XRP18/17-13 13 17.5 253 243 232 219 203 183 162 133 97 59
- 6XRP18/19-15 15 20 283 272 259 245 227 204 181 149 109 66
- 6XRP18/24-18.5 18.5 25 358 343 327 309 287 258 228 188 137 84
- 6XRP18/28-22 22 30 417 400 382 361 334 301 266 220 160 98
- 6XRP18/33-26 26 35 492 472 450 425 394 355 314 259 189 115

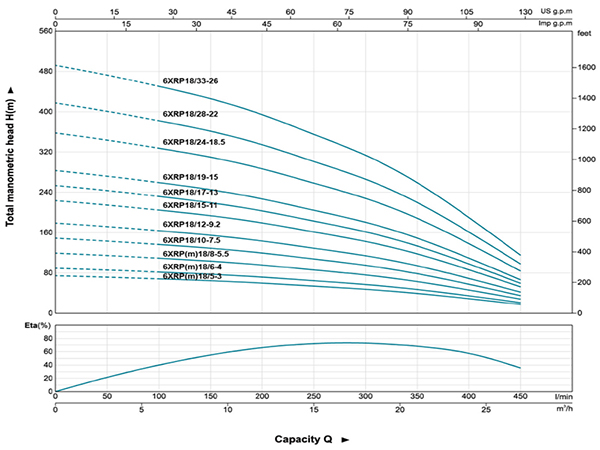

Hydraulic Performance Curves for 6XRP18 Stainless Steel Submersible Borehole Pump
Technical Data of 6XRP30 Stainless Steel Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 5 10 15 20 25 30 35 40
1~
220-240V 		3~
380-415V 		kW HP Q (l/min) 0 83 167 250 333 417 500 583 667
6XRPm30/3-3 6XRP30/3-3 3 4 H
(m) 		45 42 39 36 32 28 22 15 6
6XRPm30/4-4 6XRP30/4-4 4 5.5 60 56 52 48 42 37 29 20 8
6XRPm30/6-5.5 6XRP30/6-5.5 5.5 7.5 90 84 78 72 63 55 44 30 12
- 6XRP30/8-7.5 7.5 10 120 112 103 95 84 73 58 41 16
- 6XRP30/9-9.2 9.2 12.5 135 126 116 107 95 83 65 46 18
- 6XRP30/11-11 11 15 165 154 142 131 116 101 80 56 22
- 6XRP30/13-13 13 17.5 195 182 168 155 137 119 95 66 26
- 6XRP30/15-15 15 20 225 210 194 179 158 138 109 76 30
- 6XRP30/18-18.5 18.5 25 270 252 233 215 190 165 131 91 36
- 6XRP30/22-22 22 30 330 308 284 262 232 202 160 112 44
- 6XRP30/25-26 26 35 375 350 323 298 264 229 182 127 50
- 6XRP30/29-30 30 40 435 406 375 346 306 266 211 147 58

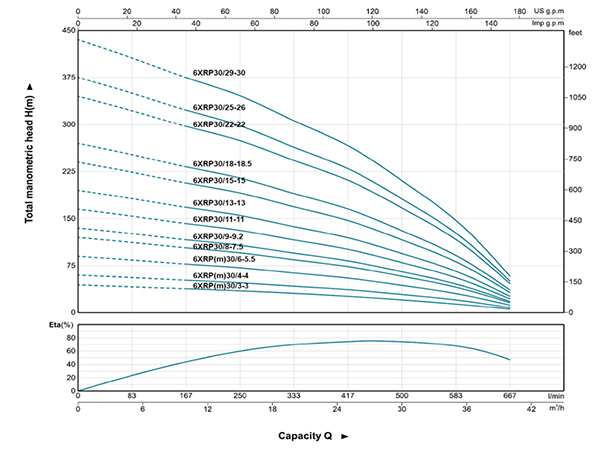

Hydraulic Performance Curves for 6XRP30 Stainless Steel Submersible Borehole Pump
Technical Data of 6XRP45 Stainless Steel Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 6 12 18 24 30 36 42 48 54 60
1~
220-240V 		3~
380-415V 		kW HP Q (l/min) 0 100 200 300 400 500 600 700 800 900 1000
6XRPm45/3-4 6XRP45/3-4 4 5.5 H
(m) 		43 41 40 38 35 32 29 26 22 16 11
6XRPm45/4-5.5 6XRP45/4-5.5 5.5 7.5 57 55 53 50 47 43 39 34 29 22 15
- 6XRP45/5-7.35 7.5 10 71 69 66 63 58 54 48 43 36 27 18
- 6XRP45/6-9.2 9.2 12.5 86 83 80 76 70 64 58 51 43 33 22
- 6XRP45/8-11 11 15 114 110 106 101 94 86 78 68 58 44 29
- 6XRP45/9-13 13 17.5 129 124 120 113 105 97 87 77 65 49 33
- 6XRP45/10-15 15 20 143 138 133 126 117 107 97 85 72 54 36
- 6XRP45/12-18.5 18.5 25 172 166 160 151 140 129 116 103 86 65 44
- 6XRP45/14-22 22 30 200 193 186 176 164 150 136 120 101 76 51
- 6XRP45/16-26 26 35 229 221 213 202 187 172 155 137 115 87 58
- 6XRP45/18-30 30 40 257 248 239 227 211 194 175 154 130 98 66

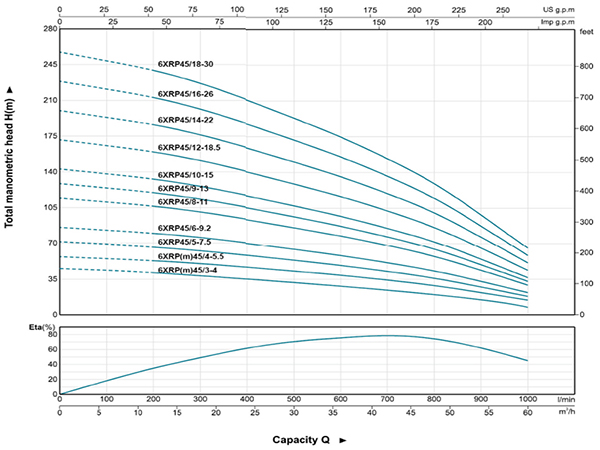

Hydraulic Performance Curves for 6XRP45 Stainless Steel Submersible Borehole Pump
Technical Data of 6XRP60 Stainless Steel Submersible Borehole Pump
Model P2 Delivery n≈2850 1/min
Q (m³/h) 0 6 12 18 24 30 36 42 48 54 60 66 72
1~
220-240V 		3~
380-415V 		kW HP Q (l/min) 0 100 200 300 400 500 600 700 800 900 1000 1100 1200
6XRPm60/3-5.5 6XRP60/3-5.5 5.5 7.5 H
(m) 		41 40 39 37 35 33 31 28 26 24 22 19 17
- 6XRP60/4-7.5 7.5 10 54 53 52 50 47 44 41 38 34 32 29 26 22
- 6XRP60/5-11 11 15 68 67 65 62 59 55 51 47 43 40 36 32 28
- 6XRP60/6-13 13 17.5 81 80 78 75 70 66 61 57 51 48 43 39 33
- 6XRP60/7-15 15 20 95 93 91 87 82 76 71 66 60 55 50 45 39
- 6XRP60/9-18.5 18.5 25 122 120 117 112 105 98 92 85 77 71 65 58 50
- 6XRP60/10-22 22 30 135 134 130 125 117 109 102 94 86 79 72 64 56
- 6XRP60/11-26 26 35 149 147 143 138 129 120 112 104 94 87 79 71 61
- 6XRP60/14-30 30 40 189 187 182 175 164 153 143 132 120 111 101 90 78

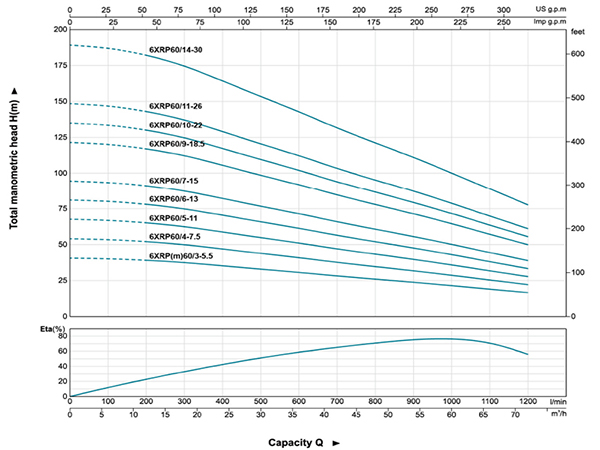

Hydraulic Performance Curves for 6XRP60 Stainless Steel Submersible Borehole Pump

EO is a listed company in China (stock code 002131), LEO is a leading split case stainless steel deep well pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, centrifugal pumps with custom solutions. LEO split case stainless steel pumps can meet you any requires in domestic pumping systems.
