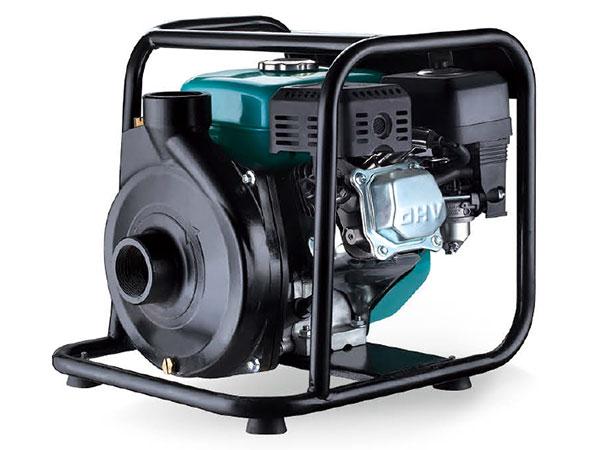

2" Cast Iron Pump Body Gasoline Pump
Application of 2” Cast Iron Pump Body Gasoline Pump
-Transfer clean water with liquid temperature between 0℃ and 40℃.
- Applicable in water supply and drainage for factories, mines, municipal facilities and field irrigation
Features of 2” Cast Iron Pump Body Gasoline Pump:
Strengthened cast-iron pump body ensures a more durable and reliable service
Impeller designed with a highly efficient hydraulic system
High quality motor with excellent performance and long service life
Better sealing effect by using special mechanical seal
Low fuel consumption
Pump
Rust resistant cast iron impeller and diffuser
Aluminum alloy impeller
Max.suctiom:8 m, suck 5 m needs 120 s
Inlet/outlet: 50 mm
Engine
Single cylinder, 4-stroke, air-cooled
Max.power:6.5 HP
Rated speed: 3600 rpm
Reliable engine equipped with low engine oil shut off system

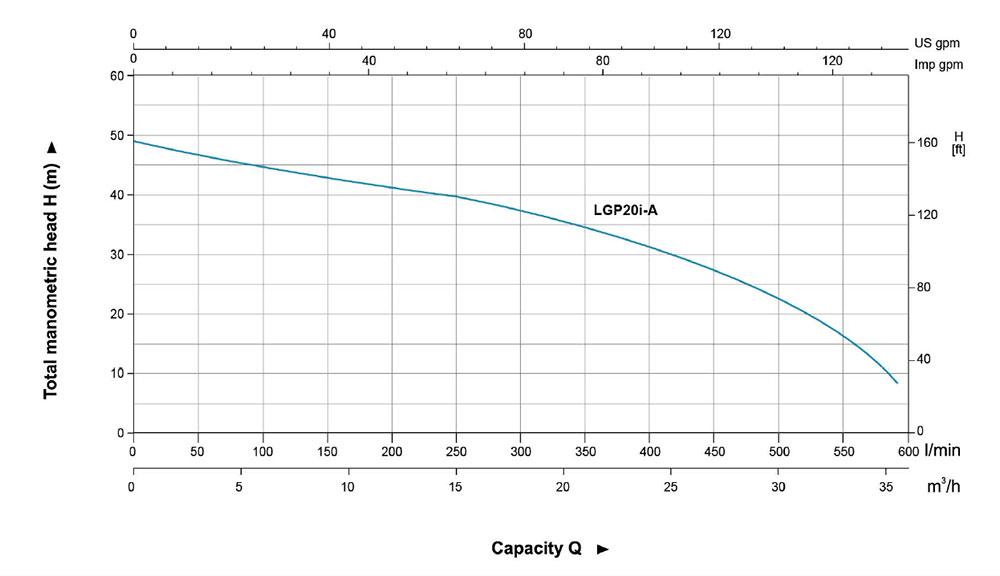

| Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| HP | L | L | cc | Q(l/min) | 0 | 83.3 | 166.7 | 250 | 333.3 | 416.7 | 500 | 583.3 | |
| 6.5 | 2.8 | 0.55 | 196 | H(m) | 49 | 45.2 | 42.9 | 39.9 | 35.1 | 29.4 | 23.2 | 8.5 |

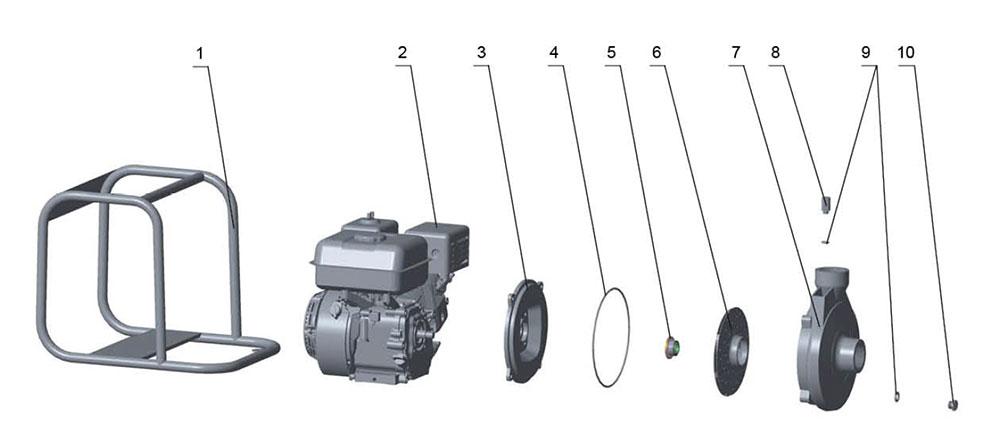

| NO. | Part | Material |
| 1 | Frame | Steel |
| 2 | Engine | |
| 3 | Pump cover | HT200 |
| 4 | O-ring | NBR |
| 5 | Mechanical Seal | Carbon/Ceramic |
| 6 | Impeller | Aluminum |
| 7 | Pump body | HT200 |
| 8 | Plug | HPb59-1 |
| 9 | O-ring | NBR |
| 10 | Plug | HPb59-1 |
LEO is a listed company in China (stock code 002131), LEO is a leading gas water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries. LEO 2 inch gas engine water pumps can meet you any requires in domestic pumping systems.
