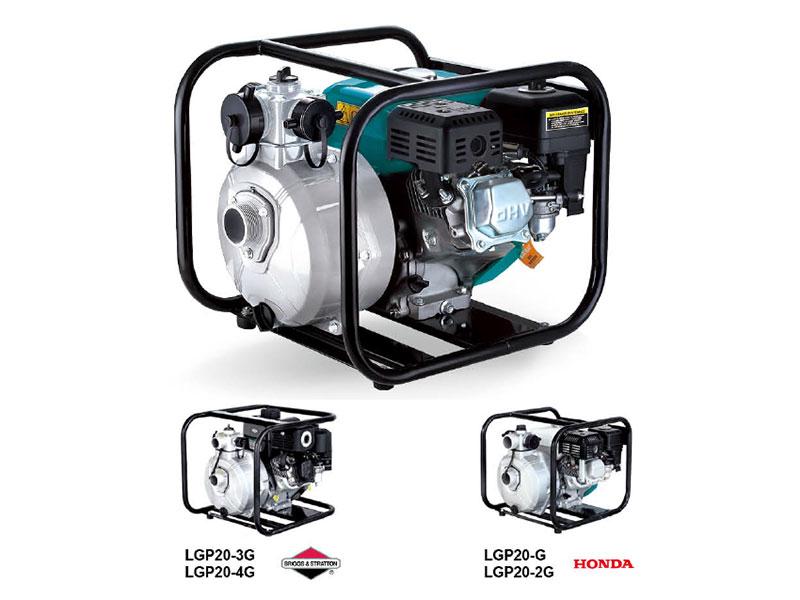

1.5" 2" LGP Gasoline Water Pump with High Head
Application of 1.5” 2” LGP Gasoline Water Pump with High Head
- Transfer clean water with liquid temperature between 0℃ and 40℃.
- The pump is applicable in water supply and drainage for factories, mines, municipal facilities and field irrigation
- Suitable for longer distance and greater height water transfer
Features of 1.5” 2” LGP Gasoline Water Pump with High Head:
New unique design with ergonomic features
Portable and compact pump frame
High quality motor with excellent performance and long service life
Impeller designed with high efficient hydraulic system
Low fuel consumption
LEO engine as default, BS/Honda engine is optional
Pump
Rust resistant cast iron impeller and diffuser
Max. suction:8 m, suck 5 m needs 120 s
Inlet/outlet: 50 mm/2 x 38 mm + 1 x 50 mm
38mm/1 x 38 mm + 2 x 50 mm
Engine
Single cylinder, 4-stroke, air-cooled
Max.power:6.5 HP
Rated speed: 3600 rpm
Reliable engine equipped with low engine oil shut off system

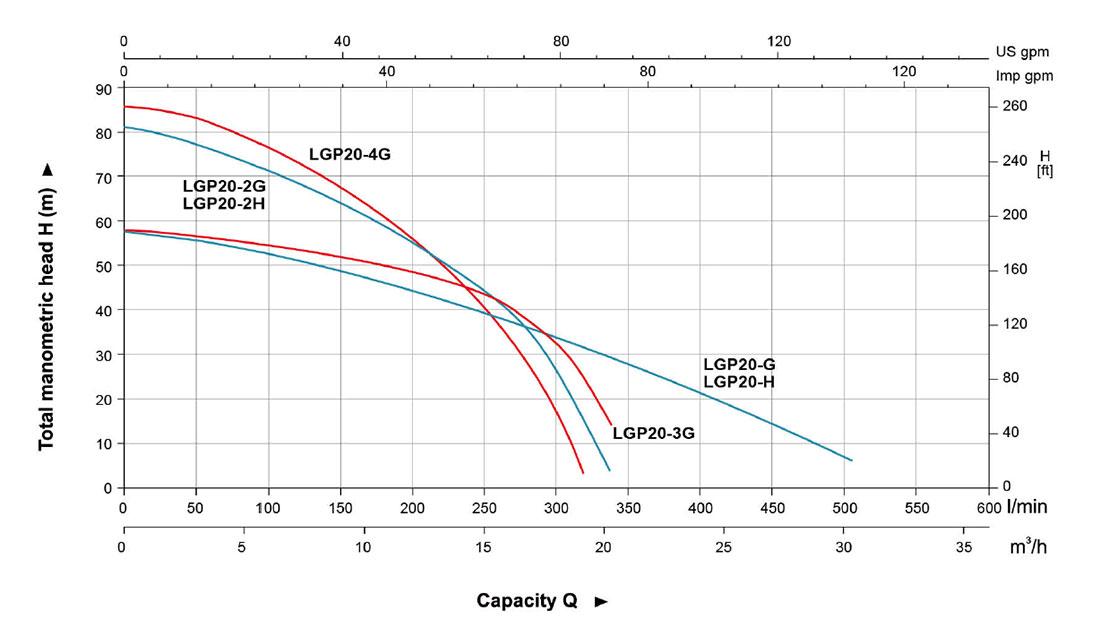

| Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | |
| HP | L | L | cc | Q(l/min) | 0 | 83.3 | 166.7 | 250 | 333.3 | 416.7 | 500 | ||
| LGP20-H | 6.5 | 2.8 | 0.55 | 196 | H(m) | 58 | 51 | 45 | 38.5 | 29 | 19 | 6 | |
| LGP20-2H | 6.5 | 2.8 | 0.55 | 196 | 81 | 72.5 | 60 | 45 | 5 | - | - | ||
| LGP20-G | 6.5 | 2.8 | 0.58 | 196 | 59 | 54 | 48.8 | 39 | 30 | 20 | - | ||
| LGP20-2G | 6.5 | 2.8 | 0.58 | 196 | 84 | 77.7 | 61.6 | 38.3 | 4.9 | - | - | ||
| LGP20-3G | 6.5 | 3.1 | 0.6 | 208 | 59 | 55.2 | 50 | 42.8 | 15 | - | - | ||
| LGP20-4G | 6.5 | 3.1 | 0.6 | 208 | 86 | 77.6 | 60.7 | 40 | 4.4 | - | - |

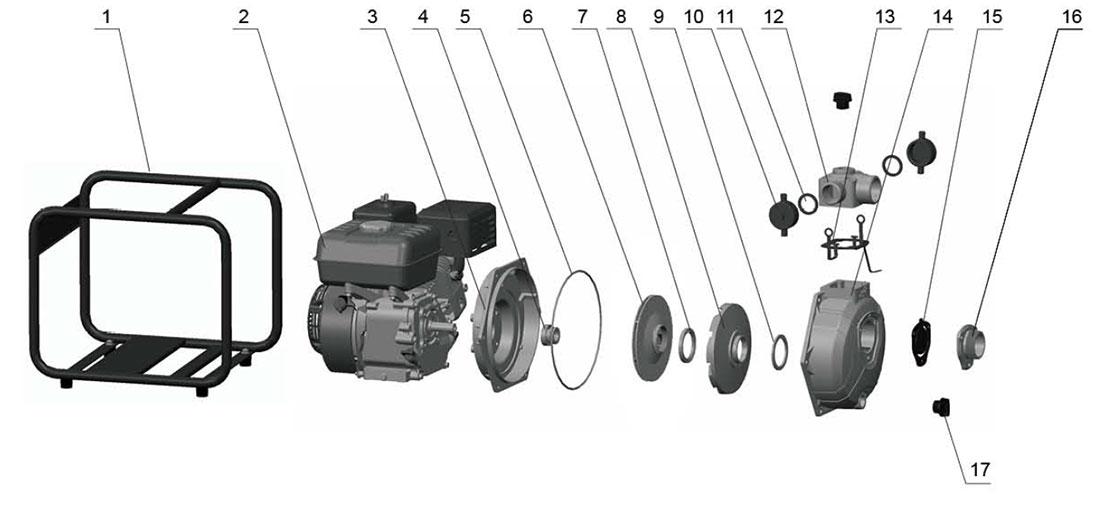

| No. | Part | Material |
| 1 | Frame | Steel |
| 2 | Engine | |
| 3 | Bracket | Aluminum |
| 4 | Mechanical Seal | Carbon/Ceramic |
| 5 | O-ring | NBR |
| 6 | Impeller | Aluminum |
| 7 | Seal ring | NBR |
| 8 | Diffuser | HT200 |
| 9 | Seal ring | NBR |
| 10 | Pipe blanking cap | PP |
| 11 | Seal ring | NBR |
| 12 | Outlet | Aluminum |
| 13 | Gasket | NBR |
| 14 | Pump body | Aluminum |
| 15 | Non-return valve | NBR |
| 16 | Inlet | Aluminum |
| 17 | Filling plug | PA6 |
LEO is a listed company in China (stock code 002131), LEO is a leading gas water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries. LEO 2 inch gas engine water pumps can meet you any requires in domestic pumping systems.
