LGP15-A 1.5" Gasoline Water Pump
Application of LGP15-A 1.5” Gasoline Water Pump
- Transfer clean water with liquid temperature between 0℃ and 40℃.
- The gasoline water pump is applicable in water supply and drainage for factories, mines, municipal facilities and field irrigation.
Features of LGP15-A 1.5” Gasoline Water Pump
4-Stroke gasoline engine power performance，structural optimization and upgrading
Ignition more convenient，more complete combustion, low energy consumption, more environmentally friendly
Strengthened pump body ensures more durable and reliable service
Better sealing effect by using a special mechanical seal
Impeller designed with a highly efficient hydraulic system
Pump
Rust resistant cast iron impeller and diffuser
Max.suction:8 m, suck 5 m needs 120 s
Inlet/outlet: 38 mm
Engine
Single cylinder, 4-stroke, air-cooled
Max.power:3 HP
Rated speed: 3600 rpm

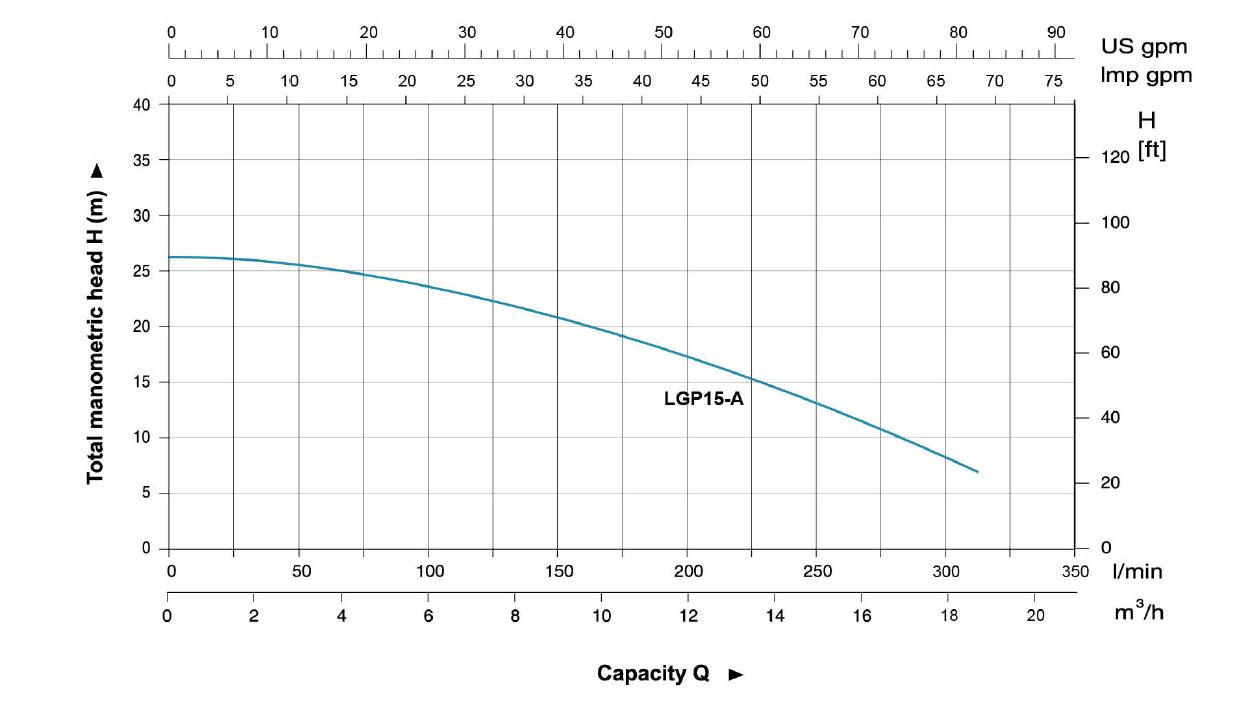

| Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| HP | L | L | cc | Q(l/min) | 0 | 33.3 | 66.7 | 100 | 133.3 | 166.7 | 200 | 233.3 | 266.7 | 300 | |
| 3 | 1.8 | 0.35 | 87 | H(m) | 26 | 25 | 24.8 | 23 | 22 | 20 | 17 | 15 | 12 | 7.2 |

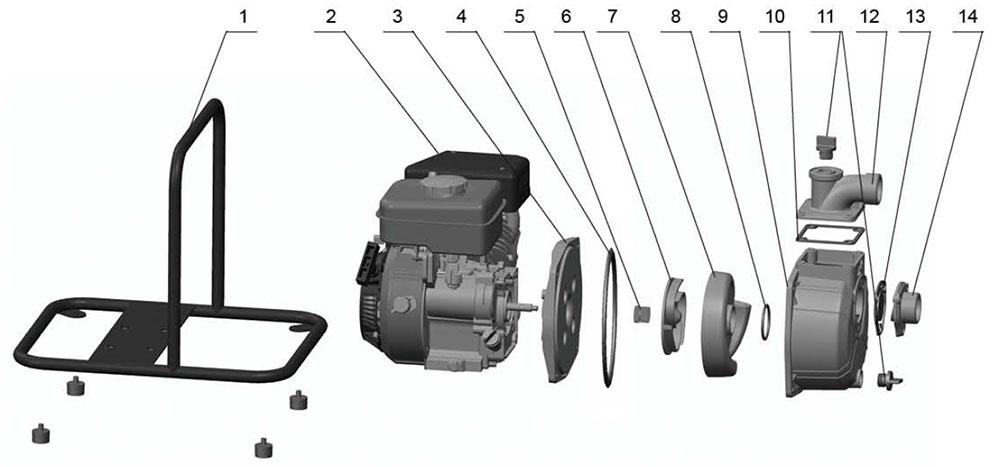

| No. | Part | Material |
| 1 | Frame | Steel |
| 2 | Engine | |
| 3 | Pump cover | Aluminum |
| 4 | O-ring | NBR |
| 5 | Mechanical seal | Carbon/Ceramic |
| 6 | Impeller | HT200 |
| 7 | Diffuser | HT200 |
| 8 | O-ring | NBR |
| 9 | Pump body | Aluminum |
| 10 | Seal | NBR |
| 11 | Plug | PP |
| 12 | Outlet | Aluminum |
| 13 | Non-return Valve | NBR |
| 14 | Inlet | Aluminum |
LEO is a listed company in China (stock code 002131), LEO is a leading gas water pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries. LEO 1.5 inch gas engine water pumps can meet you any requires in domestic pumping systems.
