LGP-T Gasoline Trash Pump

LGP15-A 1.5" Gasoline Water Pump

Application of LGP-T Gasoline Trash Pump
- To transfer clean water or trash water with liquid temperature between 0℃ and 40℃.
- Application in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.

Features of LGP-T Gasoline Trash Pump
1. Strengthened aluminum alloy pump body ensures more durable and reliable service
2. Original design of the pump body for easy cleanout
3. Impeller design with high efficient hydraulic system
4. Honda engine with excellent performance and long service life
5. Better sealing effect by using special mechanical seal
6. Low fuel consumption
7. Honda Engine

Pump
1. Aluminum alloy pump body
2. Anti-rust cast iron impeller
3. Max. suction: 8m
4. Rated suction: 5m/120s
5. Inlet/Outlet: 50 mm
6. Max. diameter of particle: 22mm
7. Liquid temperature range: 0℃~40℃

Engine
1. Single cylinder, 4-stroke, air-cooled
2. Max. Power: 5HP
3. Displacement: 163cc
4. Rated speed: 3600rpm

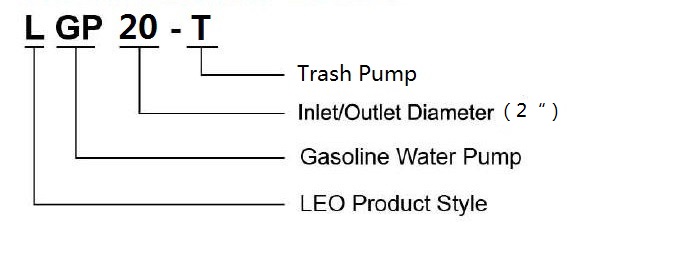

Identification Codes
Technical Data of LGP-T Gasoline Trash Pump
Model Power Fuel tank Engine Oil Displacement Engine Q(m³/h) 0 5 10 15 20 25 30 35 40
HP Q(l/min) 0 83.3 166.7 250 333.3 416.7 500 583.7 666.7
LGP20-T 5 2.8 0.55 163 GX160H1PMB H
(m) 		25 24.1 22.5 20.6 18.6 16.1 13.5 10 6

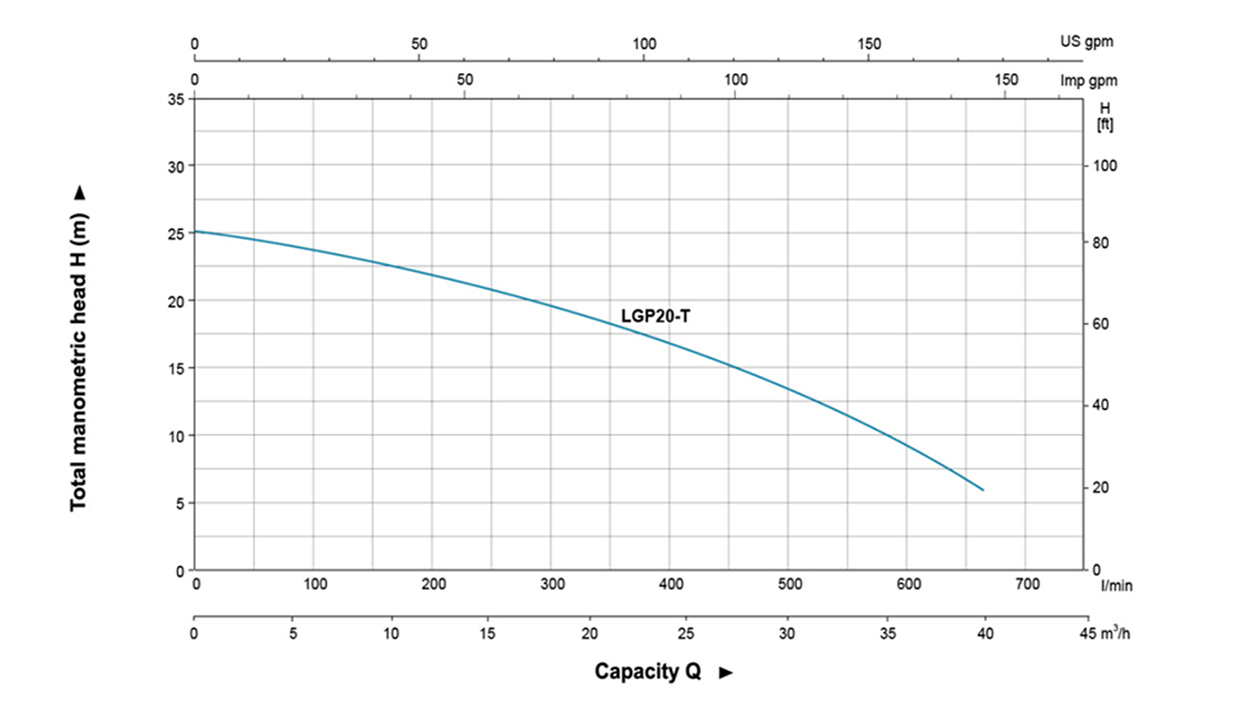

Hydraulic Performance Curves for LGP-T Gasoline Trash Pump
Hydraulic Performance Curves for LGP15-A 1.5” Gasoline Water Pump

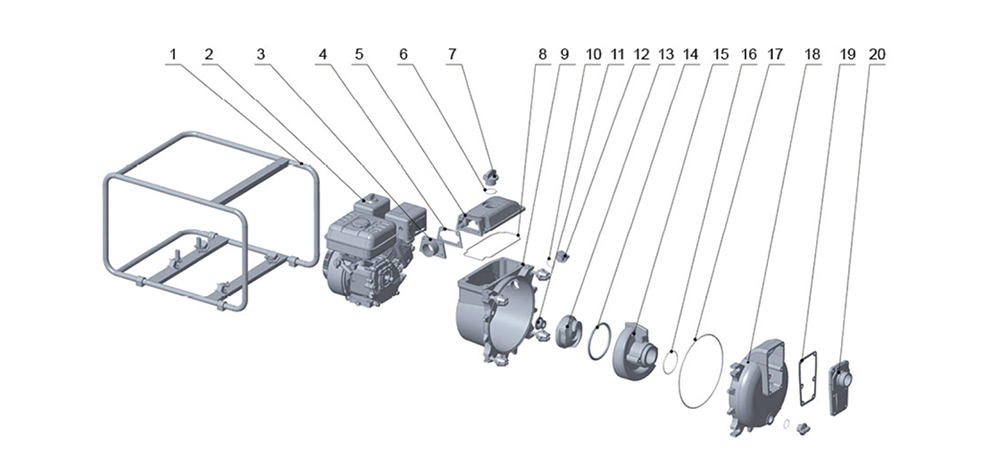

Material Table of LGP-T Gasoline Trash Pump
Hydraulic Performance Curves for LGP15-A 1.5” Gasoline Water Pump
No Part Material
1 Frame Steel 11 Mechanical seal
2 Engine 12 Plug
3 Outlet Aluminum 13 Impeller HT200
4 Seal NBR 14 O-ring NBR
5 Outlet cover Aluminum 15 Diffuser HT200
6 O-ring NBR 16 O-ring NBR
7 Plug 17 O-ring NBR
8 O-ring NBR 18 Pump body Aluminum
9 Pump cover Aluminum 19 Seal
10 O-ring NBR 20 Inlet Aluminum

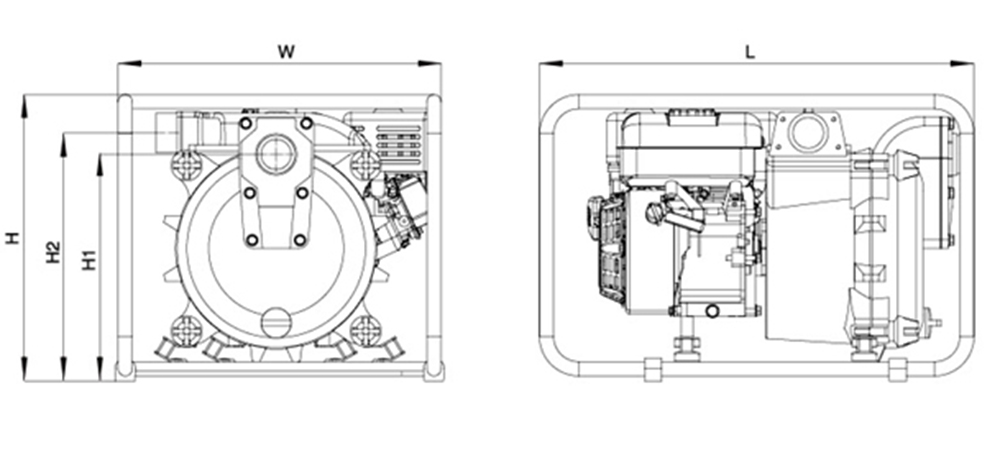

Dimension
Hydraulic Performance Curves for LGP15-A 1.5” Gasoline Water Pump
Model DN1 DN1 L
(mm) 		W
(mm) 		H
(mm) 		H1
(mm) 		H2
(mm)
LGP20-T 2" 2" 675 502 446 350 385

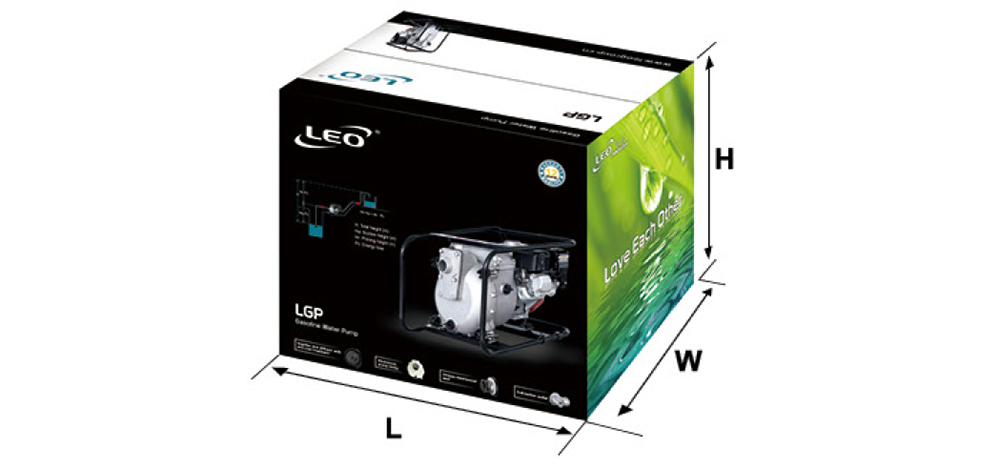

Package Information
Hydraulic Performance Curves for LGP15-A 1.5” Gasoline Water Pump
Model GW
(Kgs) 		L
(mm) 		W
(mm) 		H
(mm) 		Quantity
(PCS/20'TEU)
LGP20-T 42.8 700 520 470 175
