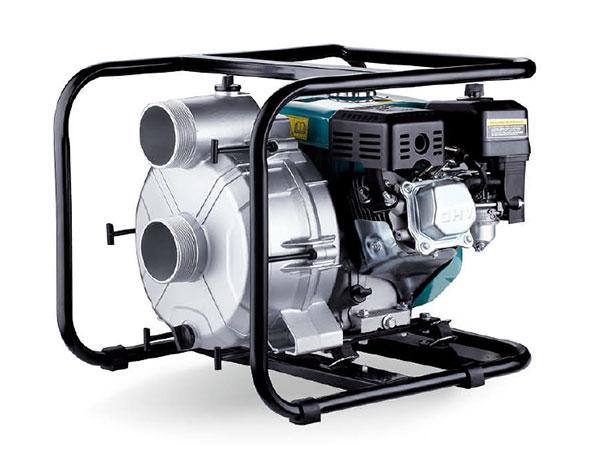

3" Gasoline Sewage Pump
Application of 3” Gasoline Sewage Pump
The gasoline sewage pump is used to transfer slurry, as well as liquids that contain mud, sand, small rocks and other debris at a diameter less than 22mm.
Sewage treatment for civil engineering, mines, quarries and municipal facilities
Water supply and drainage for factories, mines, municipal facilities as well as field irrigation
Features of 3” Gasoline Sewage Pump
All new design with ergonomic features
Reliable 4-stroke gasoline engine with low fuel consumption and high quality crankshaft
Portable, durable and compact pump frame
Durable sealing system with special mechanical seal
Silicon carbide mechanical seal for increased abrasion resistance, longer life and less maintenance
The pump body can easily be disassembled and assembled for cleaning out debris, or pump repair
Pump
Rust resistant cast iron impeller and diffuser
Max.suctiom:8 m, suck 5 m needs 120 s
Inlet/outlet:3"
Max. diameter of particle:22 mm
Liquid temperature range:0℃-40℃
Engine
Single cylinder, 4-stroke,air-cooled
Max.power:6.5 HP
Rated speed:3600 rpm
Reliable engine equipped with low engine oil shut off system

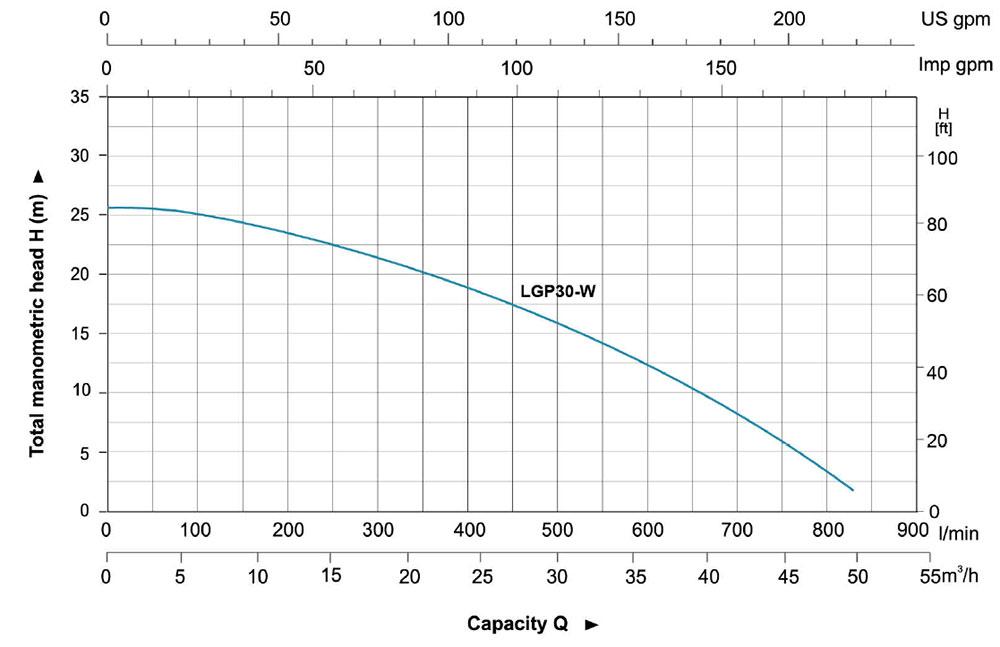

| Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
| HP | L | L | cc | Q(l/min) | 0 | 83.3 | 166.7 | 250 | 333.3 | 416.7 | 500 | 583.3 | 666.7 | 750 | 833.3 | 916.7 | 1000 | |
| 6.5 | 2.8 | 0.55 | 196 | H(m) | 25.9 | 25.3 | 24.1 | 22.8 | 21.2 | 18.8 | 16.1 | 13.2 | 9.6 | 6.1 | 2.1 | - | - |

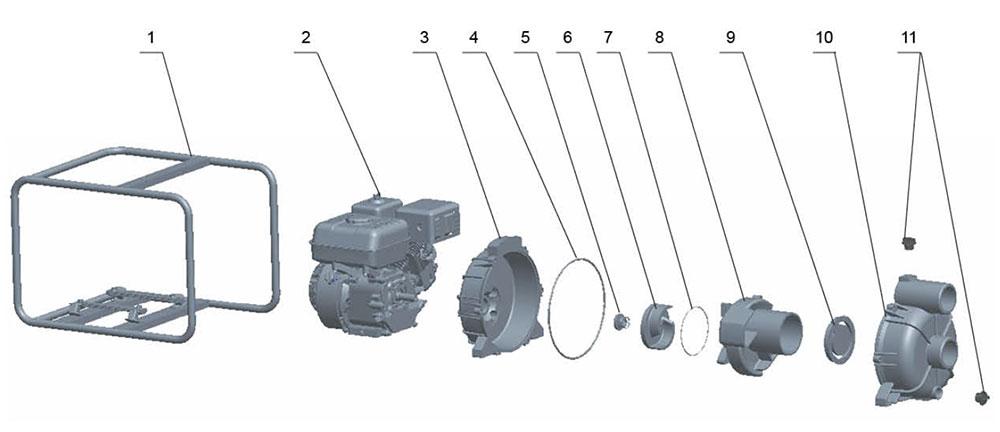

| NO. | Part | Material |
| 1 | Frame | Steel |
| 2 | Engine | |
| 3 | Pump cover | Aluminum |
| 4 | O-ring | NBR |
| 5 | Mechanical Seal | Silicon carbide/Silicon carbide |
| 6 | Impeller | HT200 |
| 7 | O-ring | NBR |
| 8 | Diffuser | HT200 |
| 9 | Non-return Valve | NBR |
| 10 | Pump body | Aluminum |
| 11 | Plug | ABS |
LEO is a listed company in China (stock code 002131), LEO is a leading gasoline sewage pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries. LEO 3 inch gasoline pumps can meet you any requires in domestic pumping systems.
