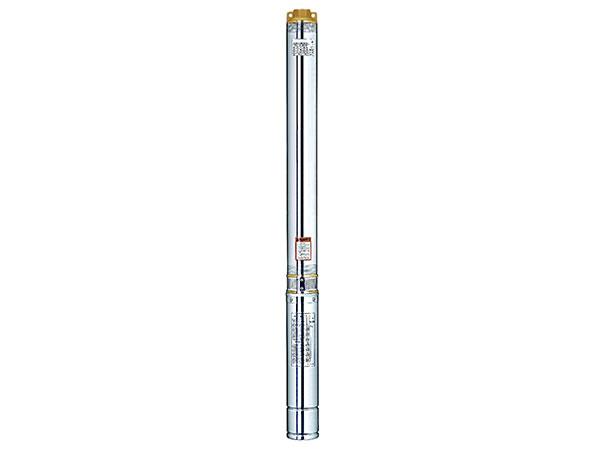

3XR2 Stainless Steel Borehole Pump

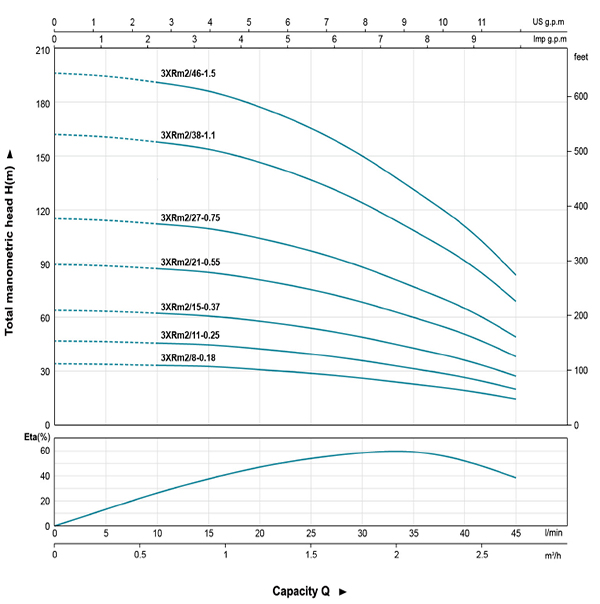

3XR2 Stainless Steel Borehole Pump Hydraulic Performance Curves
Technical Data of 3XR2 Stainless Steel Borehole Pump
Model P2 Delivery n≈2850 1/min
kW HP Q (m³/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7
Q (l/min) 0 5 10 15 20 25 30 35 40 45
3XRm2/8-0.18 0.18 0.25 H(m) 34 34 33 33 31 29 26 23 19 14
3XRm2/11-0.25 0.25 0.33 47 46 45 45 43 40 36 32 27 20
3XRm2/15-0.37 0.37 0.5 64 63 62 61 58 54 49 43 36 27
3XRm2/21-0.55 0.55 0.75 89 89 87 85 81 76 68 60 51 38
3XRm2/27-0.75 0.75 1 115 114 112 110 104 97 88 77 65 49
3XRm2/38-1.1 1.1 1.5 162 160 157 154 147 137 124 109 92 69
3XRm2/46-1.5 1.5 2 196 194 190 187 178 166 150 132 111 83

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel borehole pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, sewage pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
