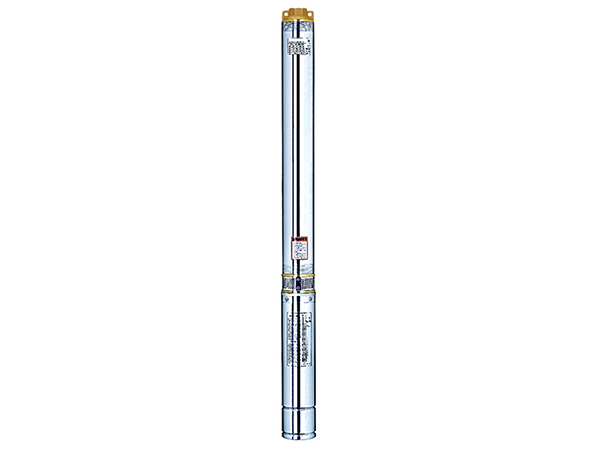

3XR3 Stainless Steel Borehole Pump

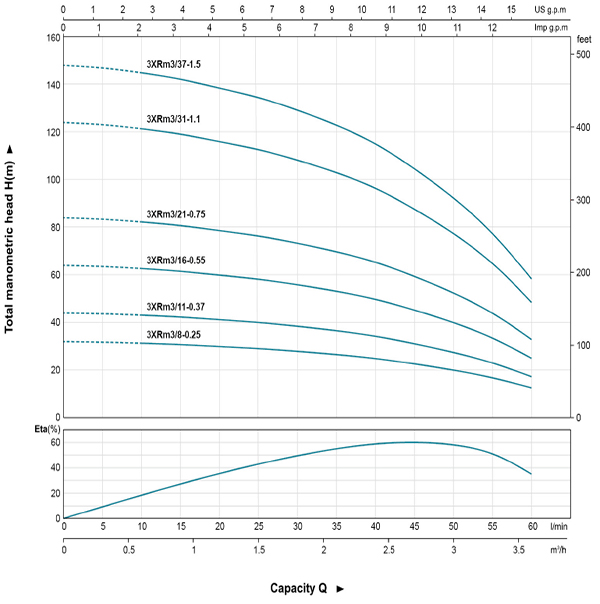

3XR3 Stainless Steel Borehole Pump Hydraulic Performance Curves
Technical Data of 3XR3 Stainless Steel Borehole Pump
Model P2 Delivery n≈2850 1/min
kW HP Q (m³/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3 3.6
Q (l/min) 0 5 10 15 20 25 30 35 40 45 50 55 60
3XRm3/8-0.25 0.25 0.33 H(m) 32 32 32 31 30 29 28 27 26 23 20 16 12
3XRm3/11-0.37 0.37 0.5 44 44 43 43 41 40 39 37 35 31 27 22 16
3XRm3/16-0.55 0.55 0.75 64 64 63 62 60 59 56 54 51 45 39 32 23
3XRm3/21-0.75 0.75 1 85 84 83 81 79 77 74 70 67 60 52 43 31
3XRm3/31-1.1 1.1 1.5 125 124 122 120 116 114 109 104 99 88 76 63 45
3XRm3/37-1.5 1.5 2 149 148 146 143 139 136 130 124 118 105 91 75 54

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel borehole pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, submersible water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
