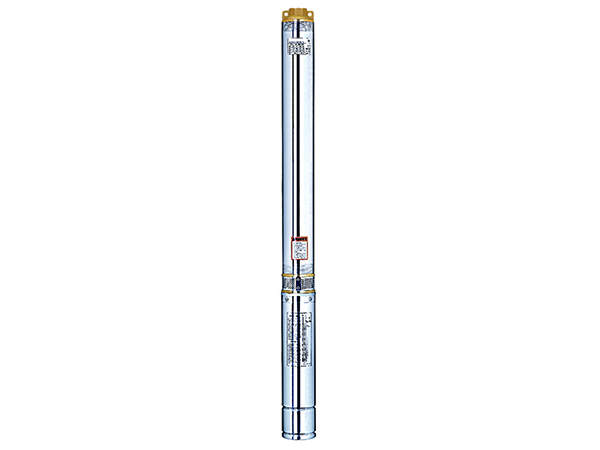

4XR12 Stainless Steel Borehole Pump

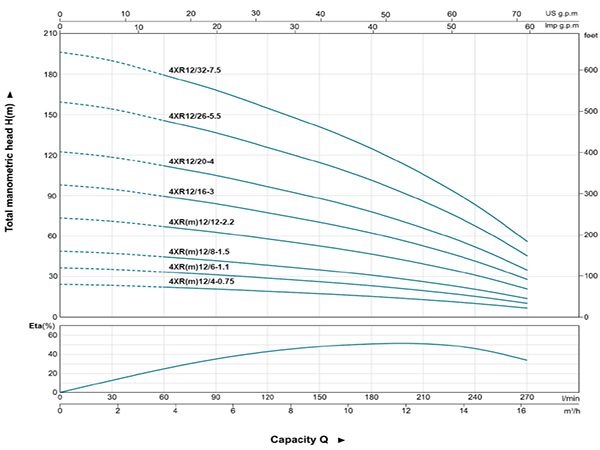

4XR12 Stainless Steel Borehole Pump Hydraulic Performance Curves
Technical Data of 4XR12 Stainless Steel Borehole Pump
Model P2 Delivery n≈2850 1/min
1~
220-240V 		3~
380-415V 		kW HP Q (m³/h) 0 1.8 3.6 5.4 7.2 9.0 10.8 12.6 13.8 14.4 16.2
Q (l/min) 0 30 60 90 120 150 180 210 230 240 270
4XRm12/4-0.75 4XR12/4-0.75 0.75 1 H (m) 25 24 22 21 19 18 16 16 13 10 7
4XRm12/6-1.1 4XR12/6-1.1 1.1 1.5 37 36 34 31 29 26 23 23 20 16 10
4XRm12/8-1.5 4XR12/8-1.5 1.5 2 49 48 45 42 39 35 31 31 27 21 14
4XRm12/12-2.2 4XR12/12-2.2 2.2 3 74 71 67 62 58 53 47 47 40 31 20
- 4XR12/16-3 3 4 98 95 90 83 77 71 63 63 53 42 27
- 4XR12/20-4 4 5.5 123 119 112 104 96 88 78 78 66 52 34
- 4XR12/26-5.5 5.5 7.5 159 154 145 135 125 115 102 102 86 67 44
- 4XR12/32-7.5 7.5 10 196 190 179 166 154 141 125 125 106 83 54

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel borehole pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, submersible water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
