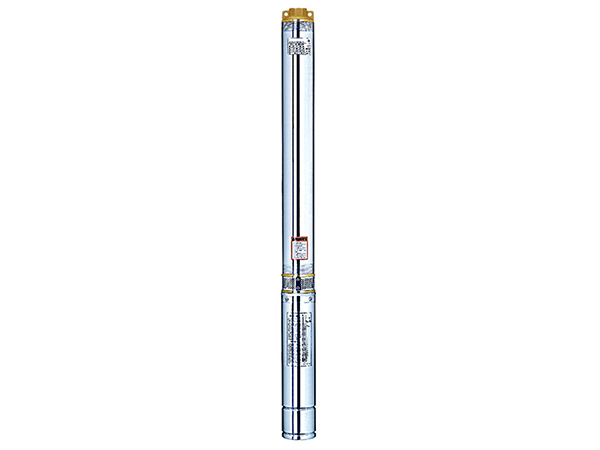

3.5XR2 Stainless Steel Borehole Pump

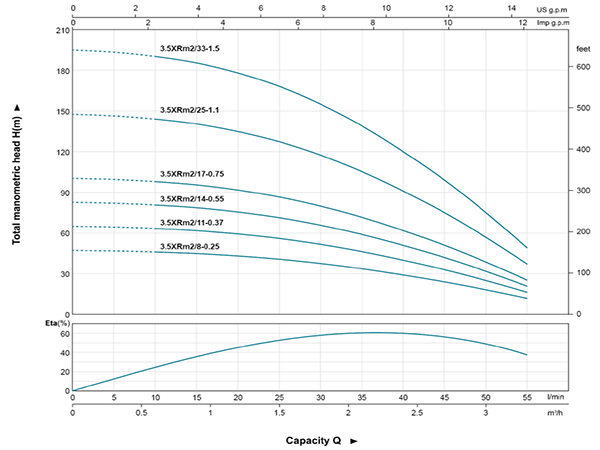

3.5XR2 Stainless Steel Borehole Pump Hydraulic Performance Curves
Technical Data of 3.5XR2 Stainless Steel Borehole Pump
Model P2 Delivery n≈2850 1/min
kW HP Q (m³/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3
Q (l/min) 0 5 10 15 20 25 30 35 40 45 50 55
3.5XRm2/8-0.25 0.25 0.33 H(m) 47 47 46 45 43 41 38 34 29 24 18 12
3.5XRm2/11-0.37 0.37 0.5 65 64 63 62 59 56 52 46 40 33 25 16
3.5XRm2/14-0.55 0.55 0.75 83 82 81 79 76 71 66 59 51 42 32 21
3.5XRm2/17-0.75 0.75 1 100 99 98 95 92 87 80 72 62 51 39 25
3.5XRm2/25-1.1 1.1 1.5 148 146 144 140 135 127 117 105 91 75 57 37
3.5XRm2/33-1.5 1.5 2 195 193 190 185 178 168 155 139 120 99 75 49

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel borehole pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, submersible water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
