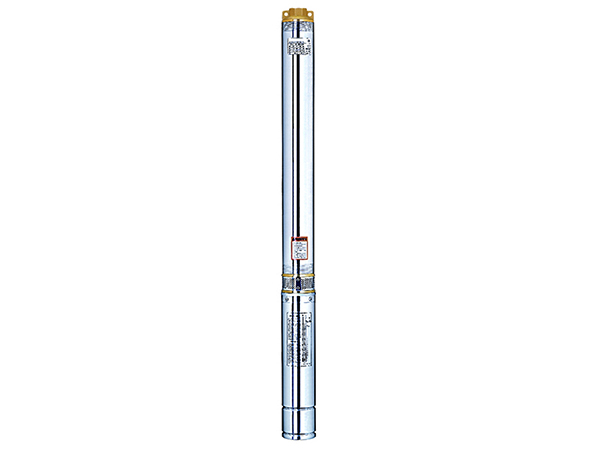

3.5XR3 Stainless Steel Borehole Pump

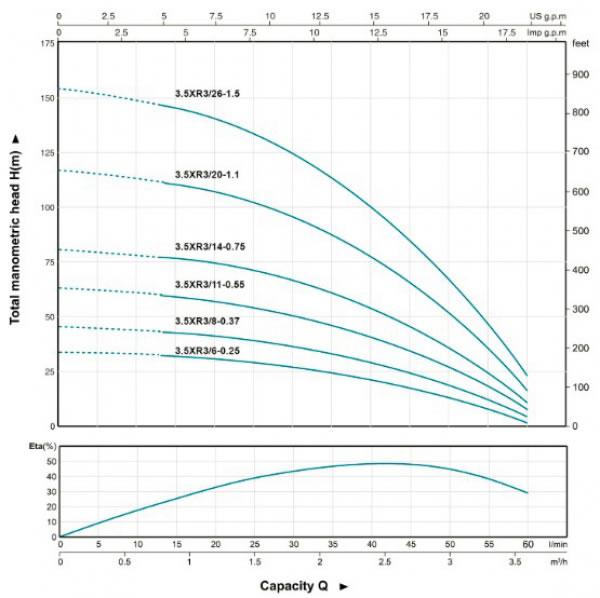

3.5XR3 Stainless Steel Borehole Pump Hydraulic Performance Curves
Technical Data of 3.5XR3 Stainless Steel Borehole Pump
Model P2 Delivery n≈2850 1/min
kW HP Q (m³/h) 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8
Q (l/min) 0 10 20 30 40 50 60 70 80
3.5XRm3/6-0.25 0.25 0.33 H (m) 35 34 33 32 29 26 20 14 8
3.5XRm3/8-0.37 0.37 0.5 46 45 44 42 39 34 27 19 11
3.5XRm3/11-0.55 0.55 0.75 63 62 61 58 54 47 37 26 15
3.5XRm3/14-0.75 0.75 1 81 79 77 74 68 60 47 33 19
3.5XRm3/20-1.1 1.1 1.5 115 113 110 105 98 85 68 48 28
3.5XRm3/26-1.5 1.5 2 150 146 143 137 127 111 88 62 36

LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel borehole pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, submersible water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
