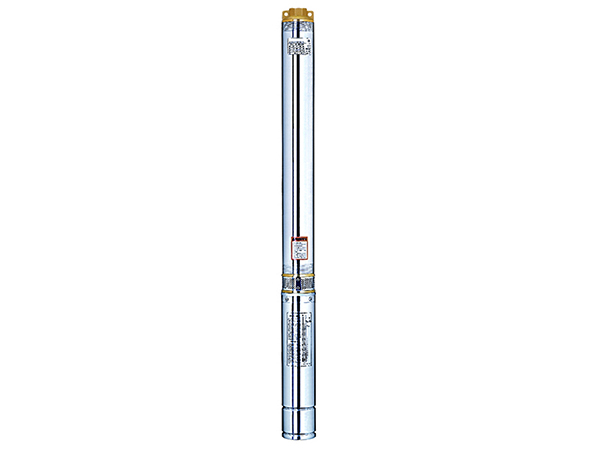

4XR16 Stainless Steel Borehole Pump

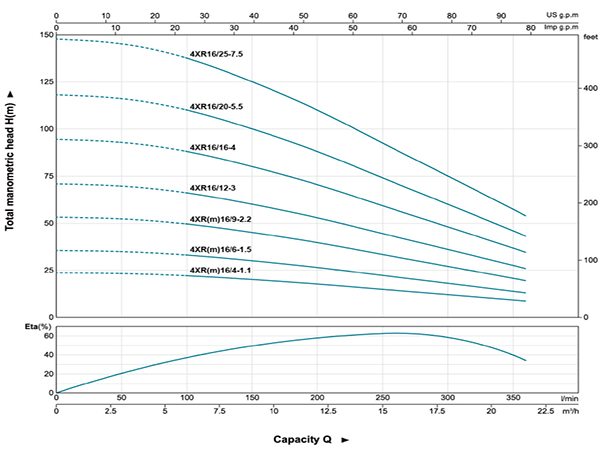

| Model | P2 | Delivery n≈2850 1/min | ||||||||||
| 1~ 220-240V |
3~ 380-415V |
kW | HP | Q (m³/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | ||||
| 4XRm16/4-1.1 |
4XR16/4-1.1 |
1.1 | 1.5 | H (m) | 24 | 23 | 22 | 20 | 18 | 15 | 12 | 9 |
| 4XRm16/6-1.5 |
4XR16/6-1.5 |
1.5 | 2 | 36 | 35 | 33 | 30 | 26 | 22 | 18 | 13 | |
| 4XRm16/9-2.2 |
4XR16/9-2.2 |
2.2 | 3 | 53 | 52 | 50 | 45 | 40 | 33 | 27 | 19 | |
| - | 4XR16/12-3 |
3 | 4 | 71 | 70 | 66 | 60 | 53 | 45 | 36 | 26 | |
| - | 4XR16/16-4 |
4 | 5.5 | 95 | 93 | 88 | 80 | 70 | 60 | 48 | 35 | |
| - | 4XR16/20-5.5 |
5.5 | 7.5 | 118 | 116 | 110 | 100 | 88 | 74 | 60 | 43 | |
| - | 4XR16/25-7.5 |
7.5 | 10 | 148 | 145 | 138 | 125 | 110 | 93 | 75 | 54 | |
LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel borehole pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, deep well pumps, submersible water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
